The Edan DX12 Wireless EKG System transforms your PC into a full-featured 12-channel EKG machine for both stress and resting diagnostic tests. Its wireless Bluetooth design eliminates cable clutter while maintaining clinical accuracy. The system captures up to 30 minutes of continuous EKG waveforms with real-time analysis and display across all channels in standard or Cabrera lead modes. Color-coded lead wires and on-device indicators help quickly identify signal quality, while the simple one-button interface ensures ease of use in any clinical setting.

• Wireless Connectivity: Bluetooth transmission eliminates cables and simplifies patient setup.
• Simultaneous 12-Lead Acquisition: Real-time waveform capture and analysis from all channels with automatic arrhythmia detection and highlighting.
• Comprehensive Analysis Functions: Includes Normal EKG, Frequency EKG, QT Dispersion, Vector EKG, HRT, HRV, and Signal-Averaged EKG (resting only) with reliable SEMIP algorithm for diagnostic accuracy.
• Optional Stress Testing: Detects myocardial ischemia with automatic treadmill and ergometer control, ST analysis, METs, Duke Score, and FAI (requires separate Stress EKG Software Upgrade Kit).
• Seamless Data Management: Bi-directional data transfer with multiple export formats (PDF, DOC, BMP, XML, SCP, DICOM, JPG). Full HL7 and DICOM support for EMR, HIS, and PACS integration.
• Flexible Printing: Supports external printers for 3, 6, or 12-channel EKG output.

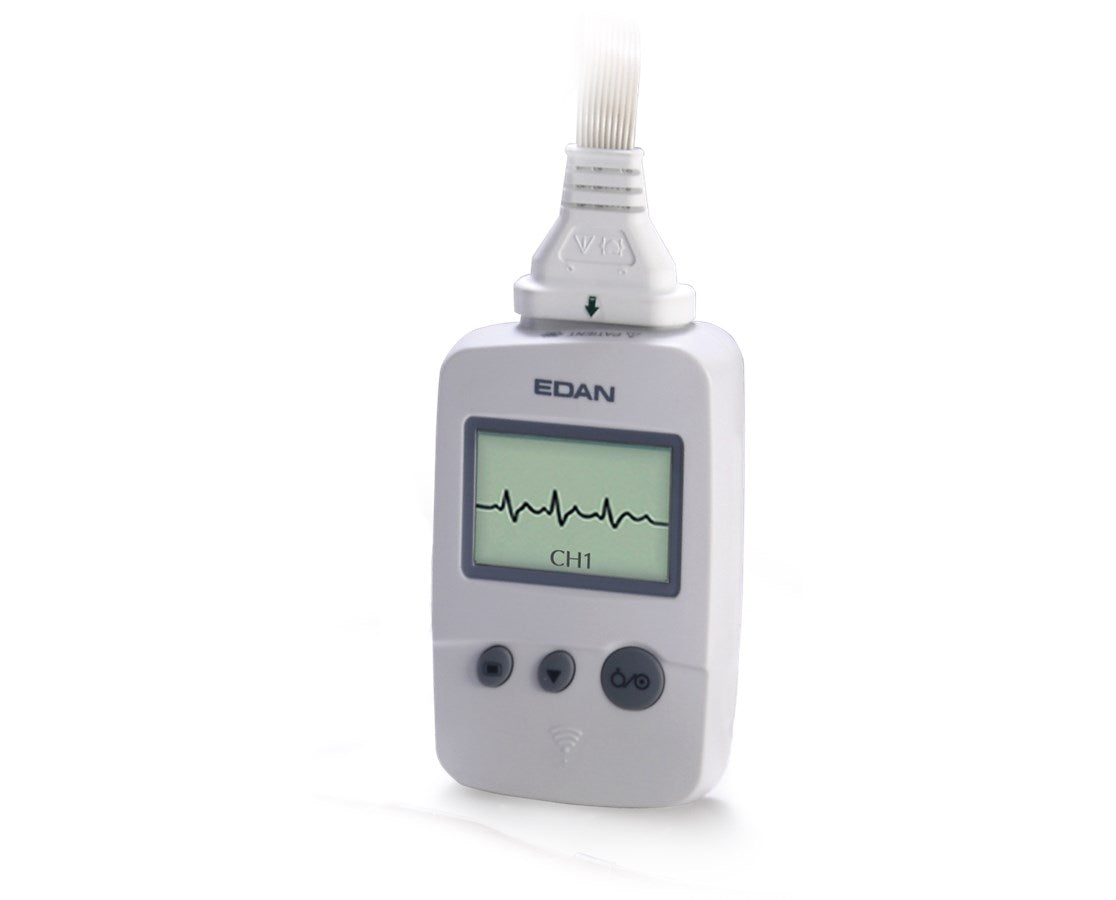

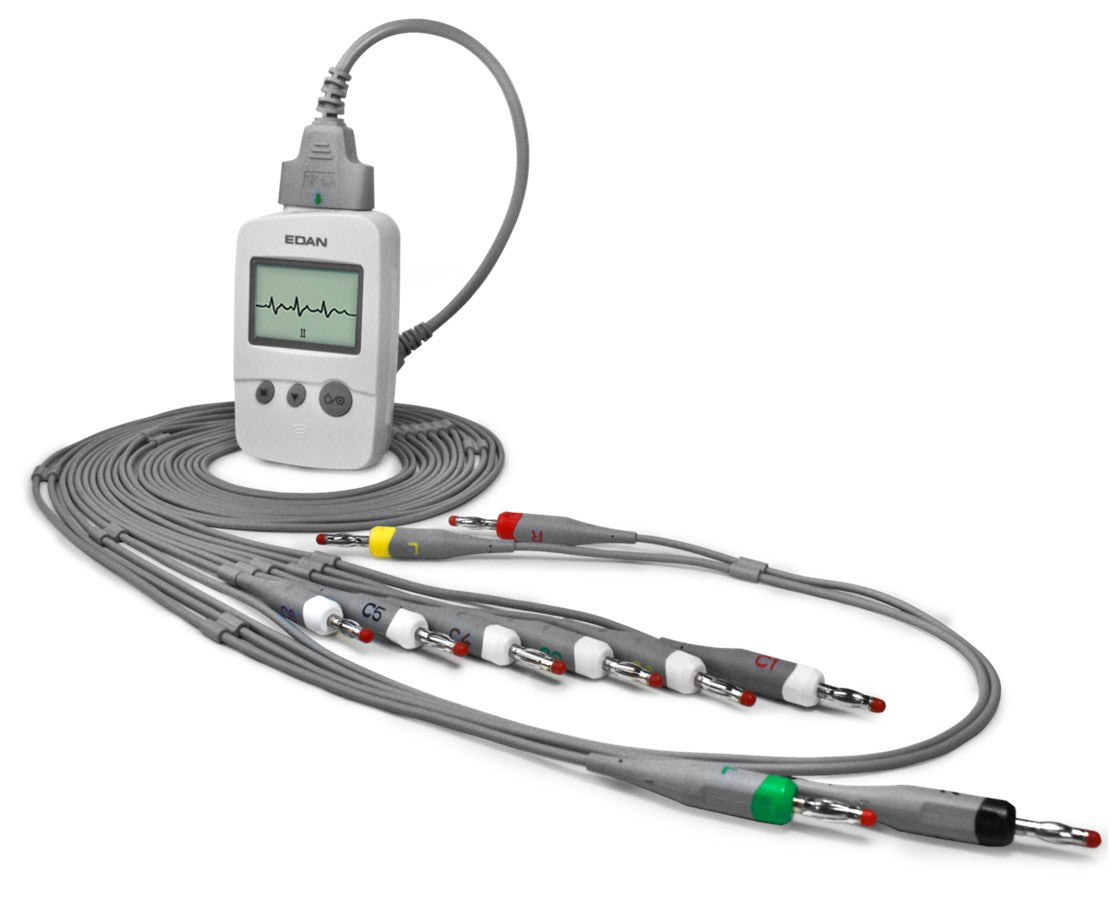

• PC Based 12 Lead Wireless DX12 Sampling Box
• EKG Receiving Box
• SE-1515 PC EKG Software CD
• EKG Cable (ф4mm, banana connector, AHA)
• Bio ProTech Resting Tab Electrodes (100/Box)
• Unomedical 10-Lead Universal Clips (10/Box)
• USB Connection Cable
• Carrying Bag
• Two (2) AA Alkaline Batteries
• SE-1515 PC EKG User Manual
• SE-1515 PC EKG Quick Reference Card
• Software Installation Guide

What happens if it breaks?

Warranty Period: 5 Years

Morningside Medical Equipment General Refund Policy: There is a 30-day Return Policy (from the date of delivery) for all supplies and products purchased through our online store. These items must be unopened, unused, and in the original manufacturer packaging. Unfortunately, no returns will be accepted if used or damaged, or after the 30-day period. Customers are responsible for all shipping charges associated with the return. Initial shipping charges will not be refunded, and a 15%-20% restocking fee could be applied depending on the product.

See our terms and conditions for more information: www.morningsidemedicalequipment.com/terms-and-conditions

• Connectivity: EMR Compatible (Yes), PC Based, Optional External Printer
• Country of Origin: USA
• Dimensions & Weight: 8.6"L x 8.1"W x 2.1"H; Total Weight: 0.63 lbs
• Environmental Specifications: Operating Temperature +5°C to +40°C; Storage Temperature -20°C to +55°C; Operating Humidity 25–80% Non-Condensing; Storage Humidity 25–93% Non-Condensing
• Power Supply: Transmitter: 2x1.5V Excell Alkaline AA Batteries (≈12 hours battery life); Receiver: DC 5V with 350mW Input Power
• Measurement & Sampling: Frequency Range 10,000/sec/channel; Sampling Rate 0.05 Hz–150 Hz (-3 dB)
• Filters: LOWPASS Filter options (25/35/45/75/100/150 Hz); DFT Filter (weak/strong)
• Software Specifications: Monitoring formats (12-Lead Standard, Cabrera); Print formats (A4, Letter); Print speeds (5/10/12.5/25/50 mm/s ±3%)
• Standards & Certifications: IEC/EN 60601-1+A1+A2, IEC/EN 60601-1-2+A1, IEC/EN 60601-2-25, ANSI/AAMI EC11, IEC/EN 60601-2-51
