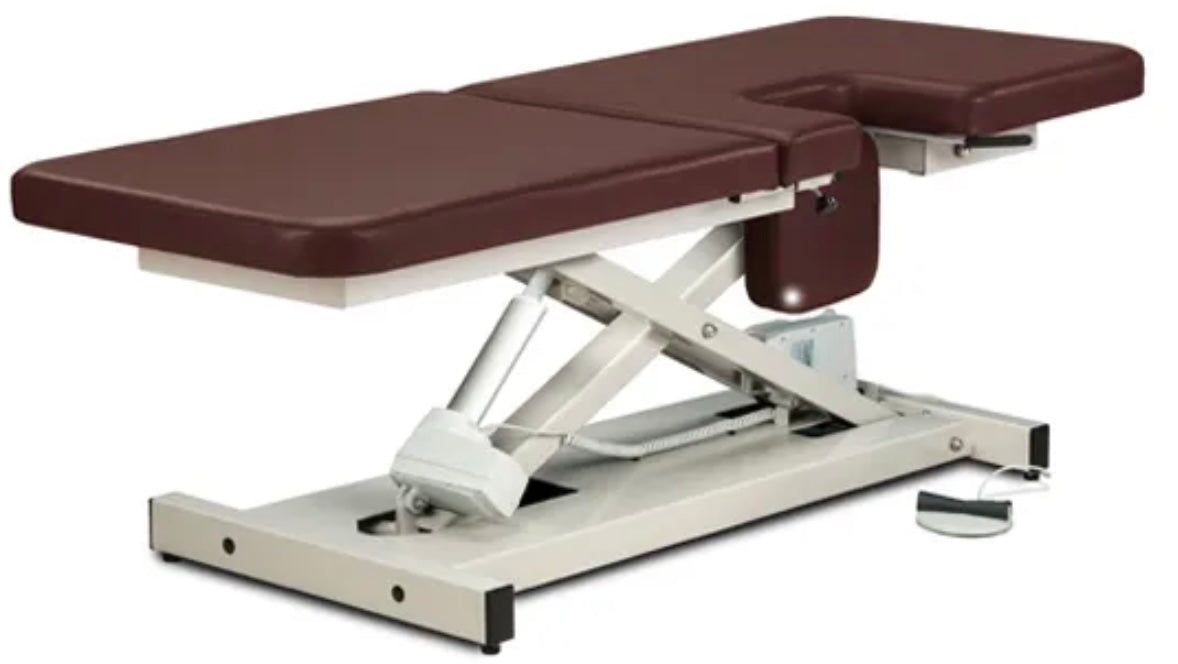

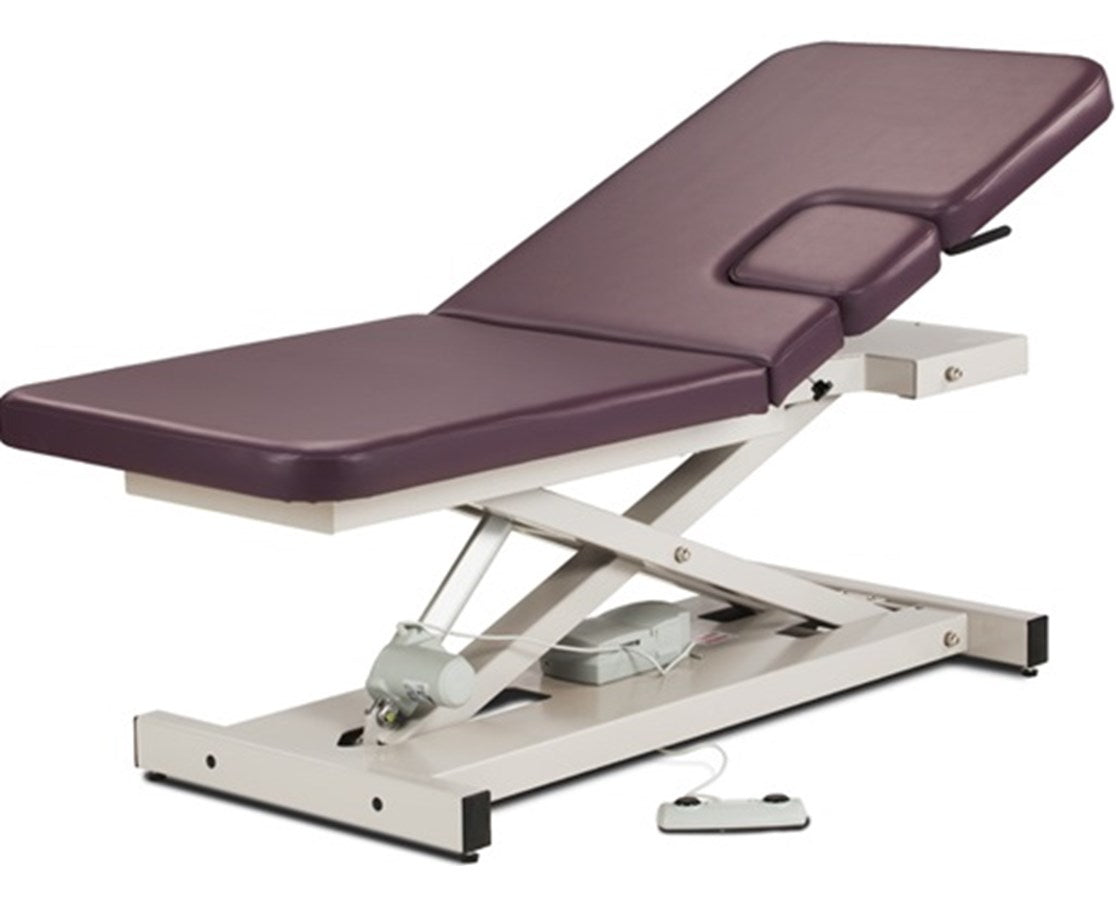

The Clinton Power Hi Lo Imaging Table with Open Base delivers professional-grade construction for clinical and diagnostic environments. This electric-powered examination table features a 10x10 hinged imaging window section, pneumatic adjustable backrest, and smooth height adjustment from 18" to 35". Built with a powder-coated steel frame and ultra-firm 2" vinyl upholstered padding, it accommodates up to 500 lbs and supports extended clinical workflows with optional accessories including paper dispensers, safety rails, and assist handles.
- Electric power height adjustment with hands-free foot control
- Pneumatic backrest adjustable from either side, raises 80 degrees
- Open base design with 10x10 hinged imaging window secured by metal slide latch
- Heavy-duty all-welded lift mechanism with self-lubricating pivot points
- Rounded corners and ultra-firm padding for patient comfort and safety
- 110-volt power supply meets UL 60601-1 and CAN/CSA C22.2 601.1 standards
- Available in 9 upholstery colors with optional accessories
- ADA-compliant design; low height may qualify for ADA tax credit
- Made in the USA with durable gray powder-coated steel construction
- Open Base Imaging Power Table with Window Drop and Adjustable Backrest

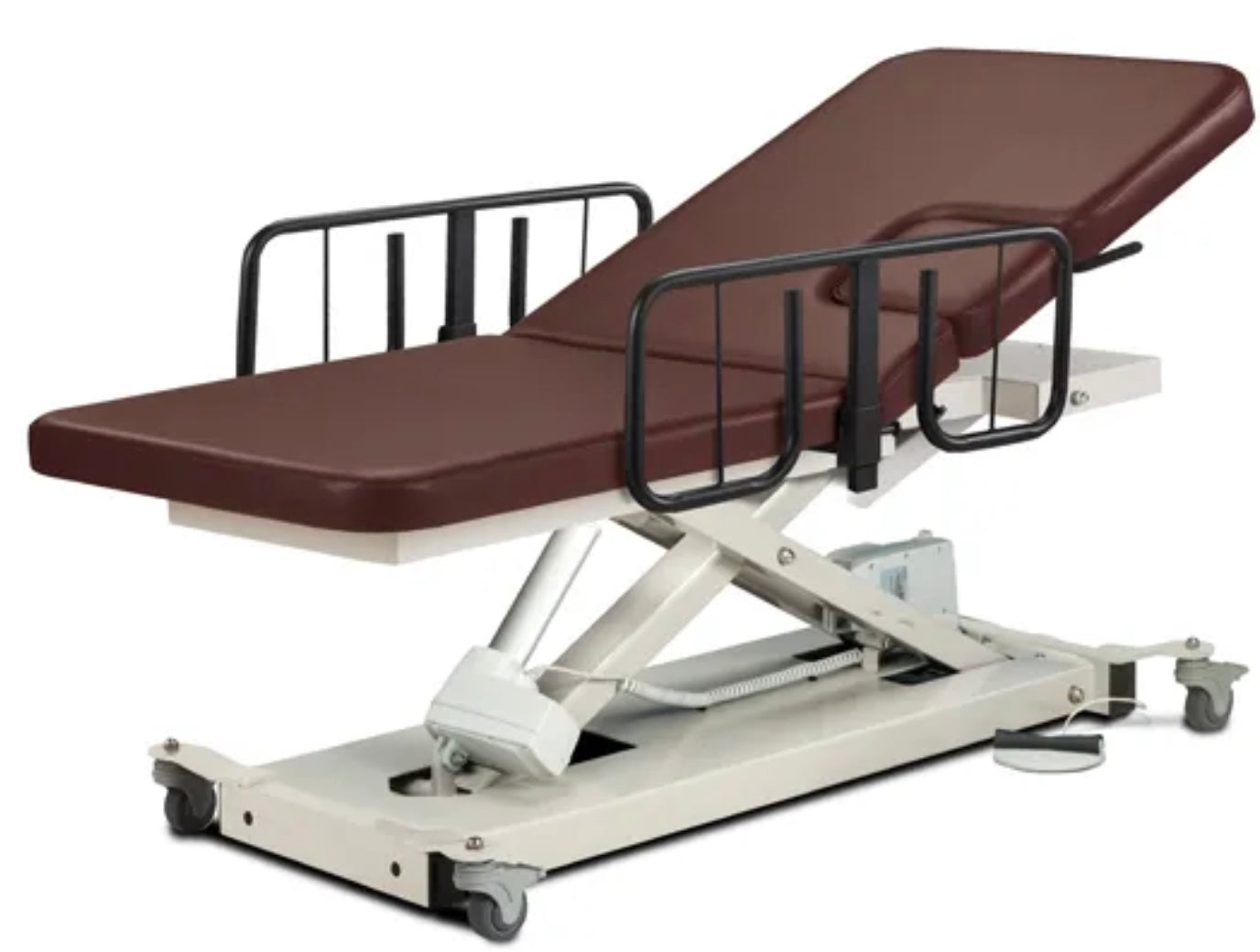

- Optional accessories: Height Control Hand Held, Locking Casters, Paper Cutter, Paper Dispenser, Paper Dispenser/Cutter Combo, Safety Rails, Safety Straps
What happens if it breaks?
Manufacturer Warranty: 3-Year Limited Warranty
Morningside Medical Equipment General Refund Policy: There is a 30-day Return Policy (from the date of delivery) for all supplies and products purchased through our online store. These items must be unopened, unused, and in the original manufacturer packaging. Unfortunately, no returns will be accepted if used or damaged, or after the 30-day period. Customers are responsible for all shipping charges associated with the return. Initial shipping charges will not be refunded, and a 15%-20% restocking fee could be applied depending on the product. See our terms and conditions for more information: www.morningsidemedicalequipment.com/terms-and-conditions
| Weight Capacity | 500 lbs |
| Overall Dimensions | 72" L x 27" W x 18"–35" H |
| Length | 72" |
| Width | 27" |
| Height Range | 18"–35" |
| Weight | 345 lbs |
| Base Design | Open Base with 10x10 Hinged Imaging Window |
| Backrest Adjustment | 0 to 80 degrees |
| Sections | 2 Section |
| Seat Material | 2" Ultra Firm Padding |
| Upholstery | Vinyl, 9 Available Colors |
| Frame Material | Gray Powder-Coated Steel |
| Power Supply | 110 Volt |
| Foot Control | Yes, Hands-Free Low Voltage |
| Wheels | Optional Locking Casters |
| Warranty | 3 Years Limited |
| Certifications | UL 60601-1, CAN/CSA C22.2 601.1, ADA Compliant |
| Assembly | Shipped Assembled |
| Country of Origin | USA |
