The EasyOne Sky transforms respiratory diagnosis and management with a fully connected spirometry solution. Guided by Buddy, ndd's built-in spirometry coach, patients can perform tests more easily while providers achieve consistent, high-quality results. With secure cloud infrastructure protecting every test and real-time insights that give healthcare systems visibility into testing performance across their network, our ecosystem supports you from deployment to diagnosis, helping teams deliver better care with confidence.
- Buddy, your built-in spirometry coach, guides patients through each maneuver and provides real-time feedback to help achieve high-quality test results
- Patented TrueFlow ultrasonic transit-time technology delivers calibration-free, contact and resistance-free flow and volume measurement with proven long-term stability
- Automatic quality grading and interpretation based on ATS/ERS 2019 (grading) and ERS/ATS 2022 (interpretation) standards
- Comprehensive reference value sets: Global GLI (Bowerman 2023), GLI (Quanjer 2012), and NHANES III (Hankinson 1999)
- Performs FVC, FVL, and Post-bronchodilator tests with full clinical parameter sets
- Bluetooth Low Energy v5.1+ wireless connectivity to PC via the included BLE dongle, with EasyOne Mobile desktop software

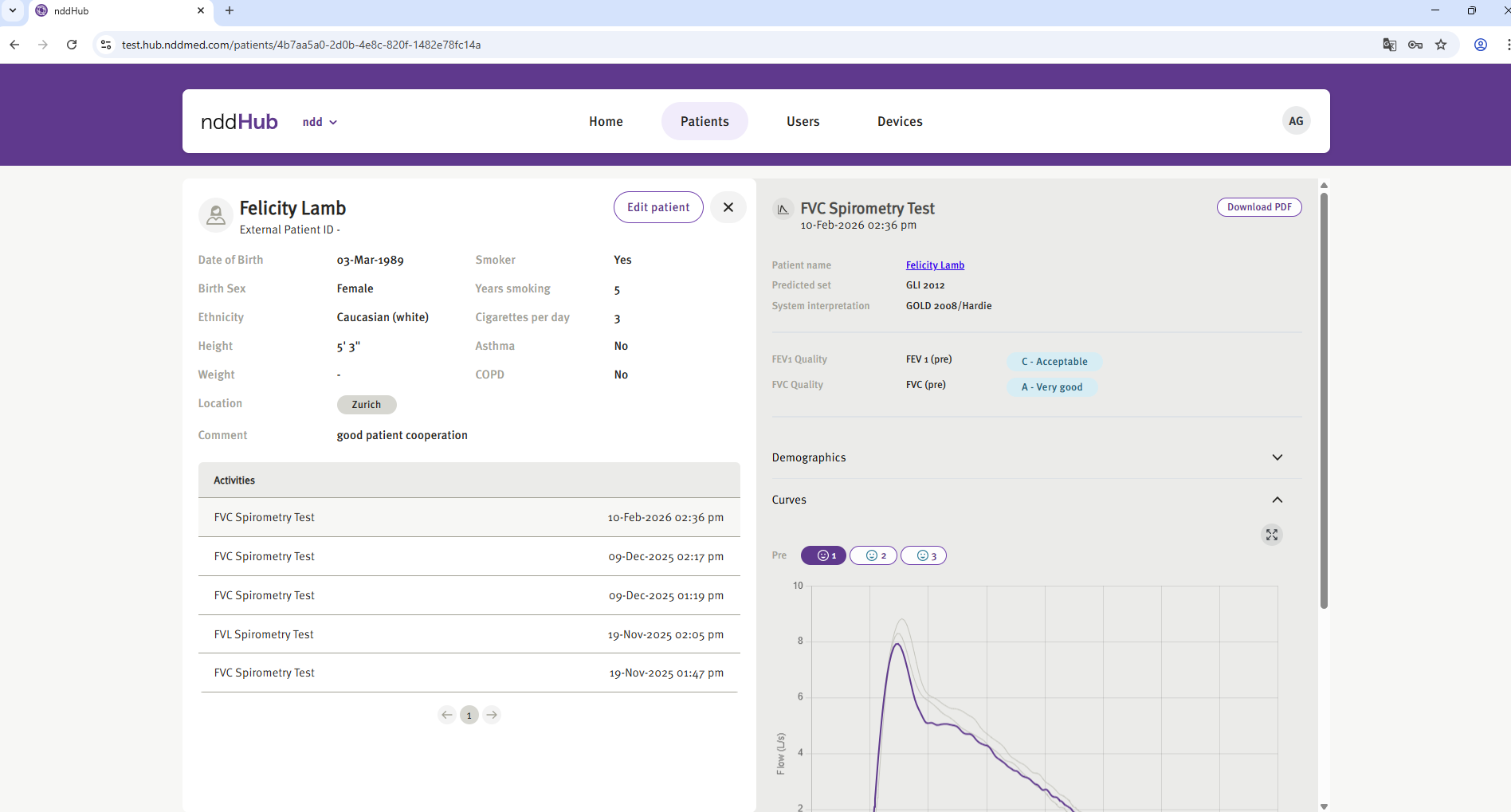

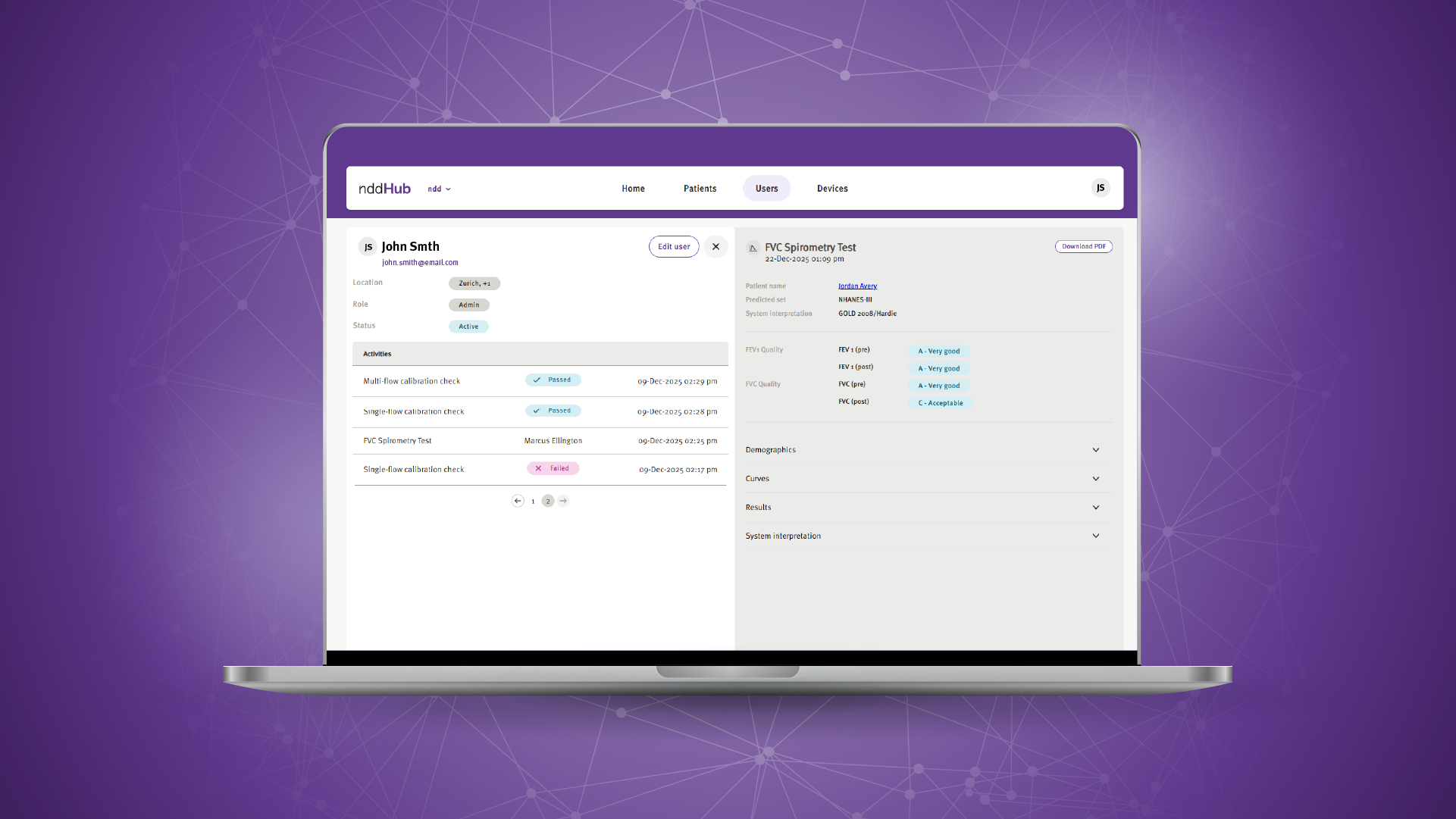

- nddHub web portal (when included) for centralized fleet management, real-time performance monitoring, and clinic-level oversight across your network
- HITRUST-certified nddCloud infrastructure with automatic backup, continuous monitoring, and secure access to every test
- EMR / EHR integration via HL7 and API through the nddCloud platform
- Compact, portable design — 4.3 × 3.3 × 1.3" (111 × 84 × 33 mm), 4.9 oz (140 g) without battery, powered by 2 × AA batteries
- FDA 510(k) cleared and EU MDR 2017/745 (CE) approved; compliant with ATS/ERS 2019 Spirometry Standard

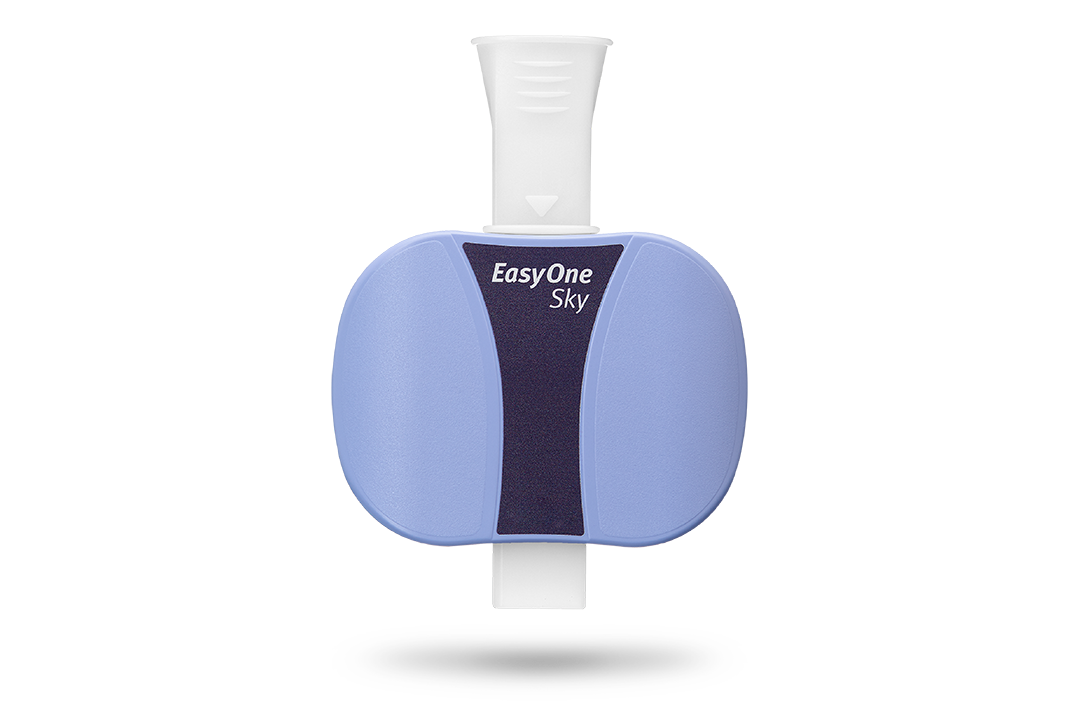

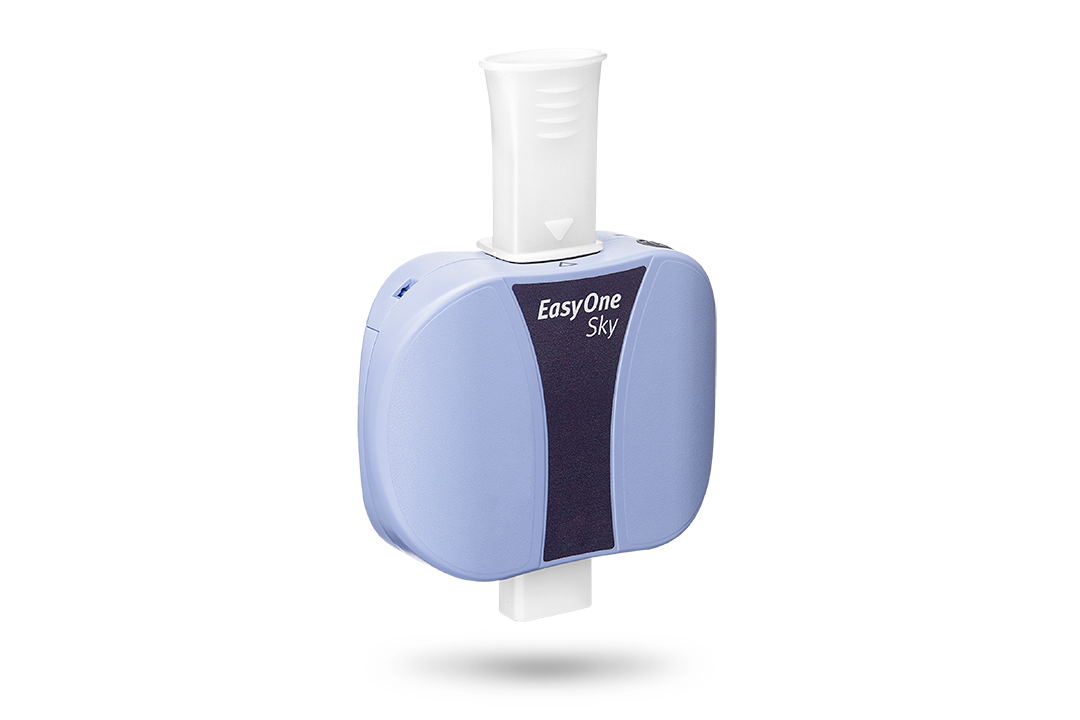

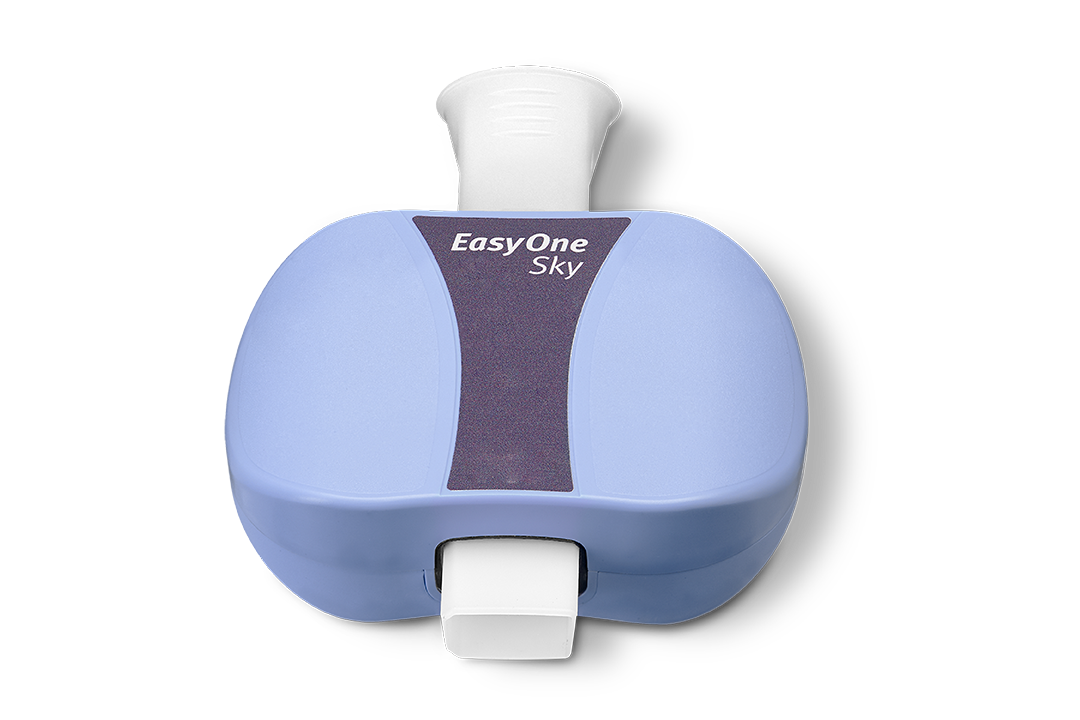

- EasyOne Sky spirometer (model 2800-1D)
- Bluetooth Low Energy (BLE) dongle for PC use
- 3-year manufacturer warranty
- nddCloud access (3 years, up to 5 users per device)
- Initial in-service
What happens if it breaks?
Manufacturer's warranty: ndd Medical Technologies provides a 3-year manufacturer warranty on the EasyOne Sky Spirometer (model 2800-1D) covering the device against defects in materials and workmanship from the date of purchase.
Morningside Medical Equipment General Refund Policy: There is a 30-day Return Policy (from the date of delivery) for all supplies and products purchased through our online store. These items must be unopened, unused, and in the original manufacturer packaging. Unfortunately, no returns will be accepted if used or damaged, or after the 30-day period. Customers are responsible for all shipping charges associated with the return. Initial shipping charges will not be refunded, and a 15%-20% restocking fee could be applied depending on the product.
See our terms and conditions for more information: www.morningsidemedicalequipment.com/terms-and-conditions
| Standards & Recommendations | |
|---|---|
| Quality, electrical, medical devices | ISO 13485, ISO 14971, IEC 62366-1, IEC 60601-1, IEC 60601-1-2, 2012/19/EU, 2011/65/EU, 2015/863, 2006/66 EU, 2018/852, 2014/53/EU |
| Market clearance | FDA 510(k); EU MDR 2017/745 |
| Standards | ATS/ERS 2019 Spirometry Standard |
| Languages – User Interface | |
| Languages | English, Spanish |
| Users & Patients | |
| User group | Healthcare professional |
| Age range (patient) | > 4 years |
| Technical Specifications | |
| Dimensions (L × H × W) | 4.3 × 3.3 × 1.3 in / 111 × 84 × 33 mm |
| Weight | 4.9 oz / 140 g (without battery) |
| Device classification | Type BF applied part |
| Operating temperature | 41–104 °F / 5–40 °C |
| Operating humidity | 15–90% rel. humidity, non-condensing |
| Atmospheric pressure | 700–1060 hPa |
| Power source | 2 × AA batteries (power consumption 0.3 W) |
| Communication interface | Bluetooth Low Energy v5.1 and higher |
| Data management software | EasyOne Mobile |
| App compatibility | EasyOne Mobile is compatible with Windows |
| Tests & Parameters | |
| FVC (Forced expiratory vital capacity) | BEV, FEF25, FEF25-75, FEF50, FEF75, FET, FEV.75*, FEV.75/FVC*, FEV1, FEV1/FVC, FEV1Q, FVC, PEF (*shown for children <6 yr) |
| FVL (Flow volume loop) | BEV, FEF25, FEF25-75, FEF50, FEF75, FET, FEV.75*, FEV.75/FVC*, FEV1, FEV1/FVC, FEV1Q, FIVC, FVC, PEF, PIF (*shown for children <6 yr) |
| Post (Post-bronchodilator) | FVC %change, FEV1 %change |
| Predicted Normal Values – Spirometry | |
| Reference value sets | Global GLI (Bowerman) 2023, GLI (Quanjer) 2012, NHANES III (Hankinson) 1999 |
| System Interpretation | |
| Interpretation standards | ERS/ATS 2022, GOLD/Hardie |
| Flow / Volume Sensor | |
| Type | Ultrasonic transit time |
| Flow range | ± 16 L/s |
| Flow resolution | 1 mL/s |
| Flow accuracy (except PEF) | ± 2% or 0.020 L/s |
| PEF accuracy | ± 5% or 0.2 L/s |
| Volume range | ± 12 L |
| Volume accuracy | ± 2% or 0.050 L |
| Resistance | < 1.5 cm H2O/L/s at 14 L/s |
