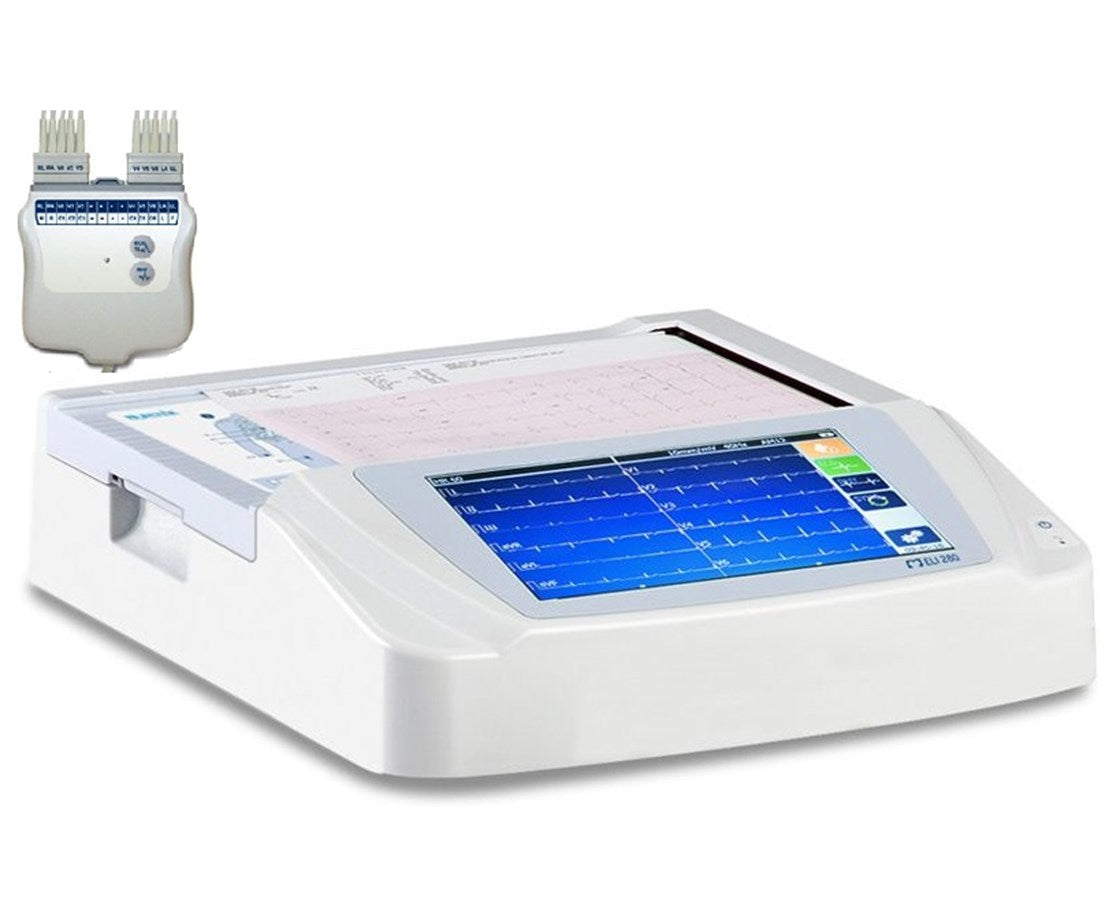

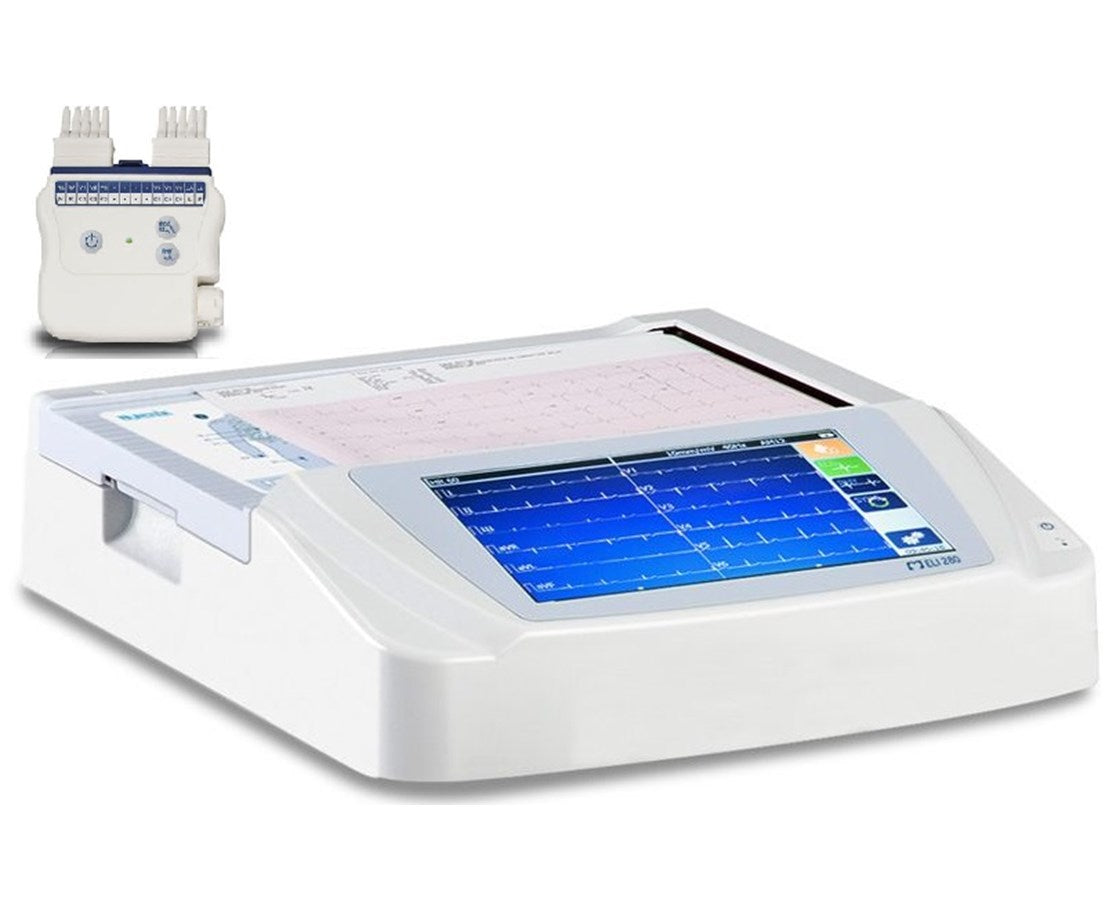

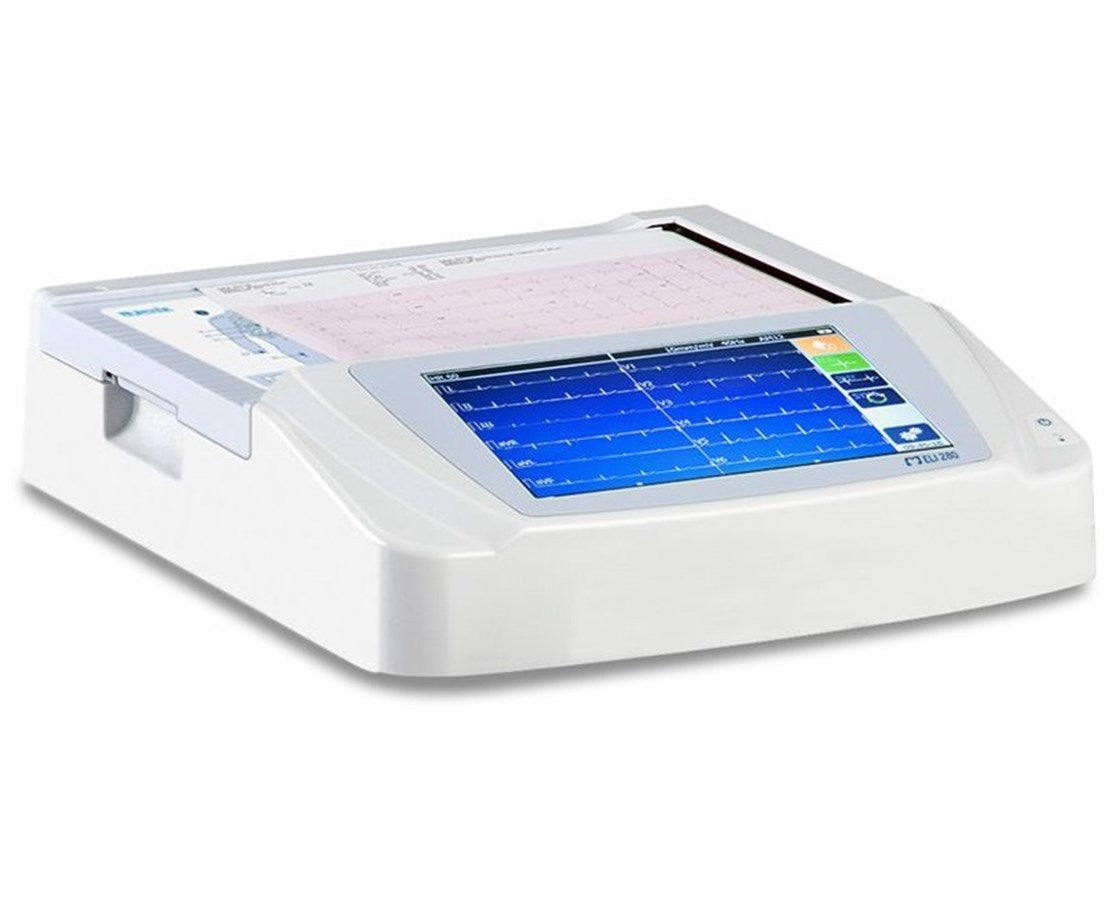

The Burdick ELI 280 EKG is a portable, high-accuracy 12-lead electrocardiograph system designed for fast, reliable cardiac diagnosis in clinical and hospital settings. Featuring a 10.1" full-lead touchscreen, VERITAS® interpretation algorithm, and Best 10™ signal selection technology, this device delivers precise, age- and gender-specific EKG results. Weighing just 13.9 lbs and measuring 15.55" L x 17" W x 4" H, it combines portability with professional-grade diagnostic capability. Made in the USA, the ELI 280 supports both wired and wireless acquisition modules with seamless bidirectional connectivity via USB, LAN, modem, and Wi-Fi.

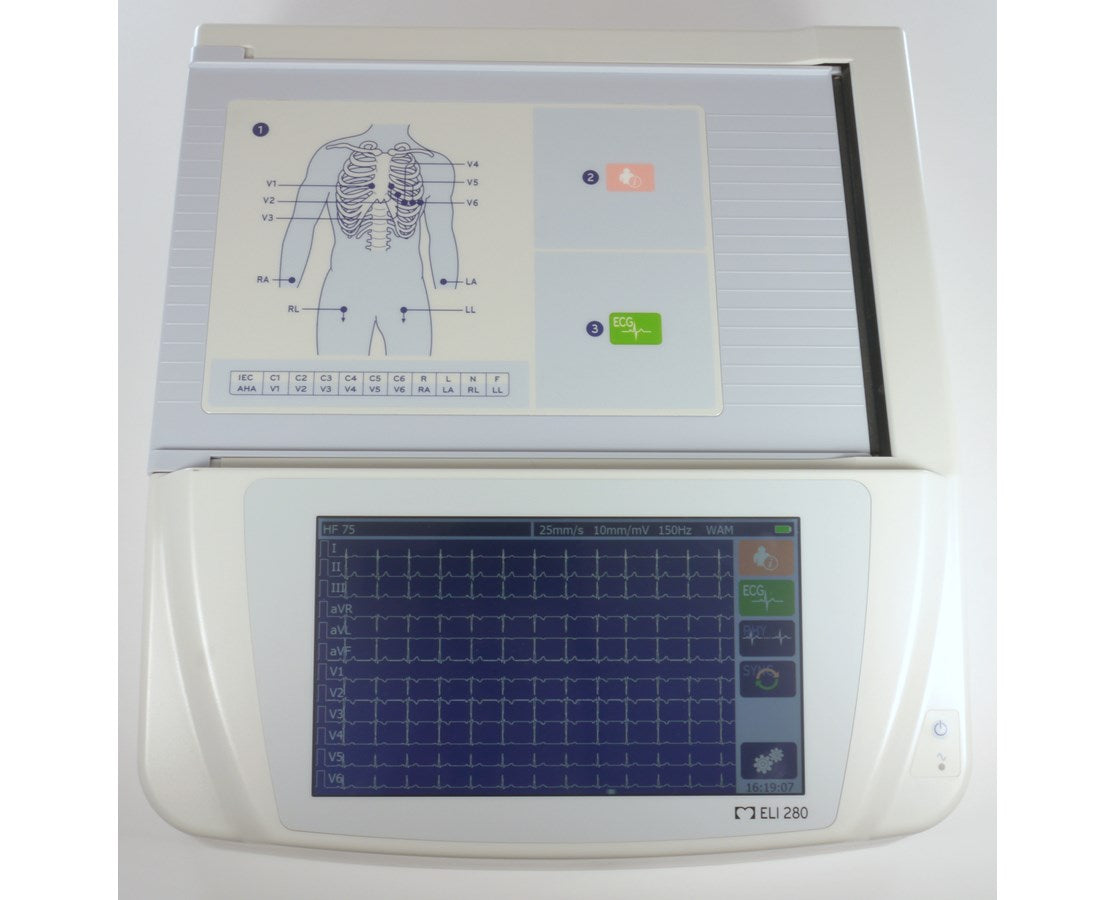

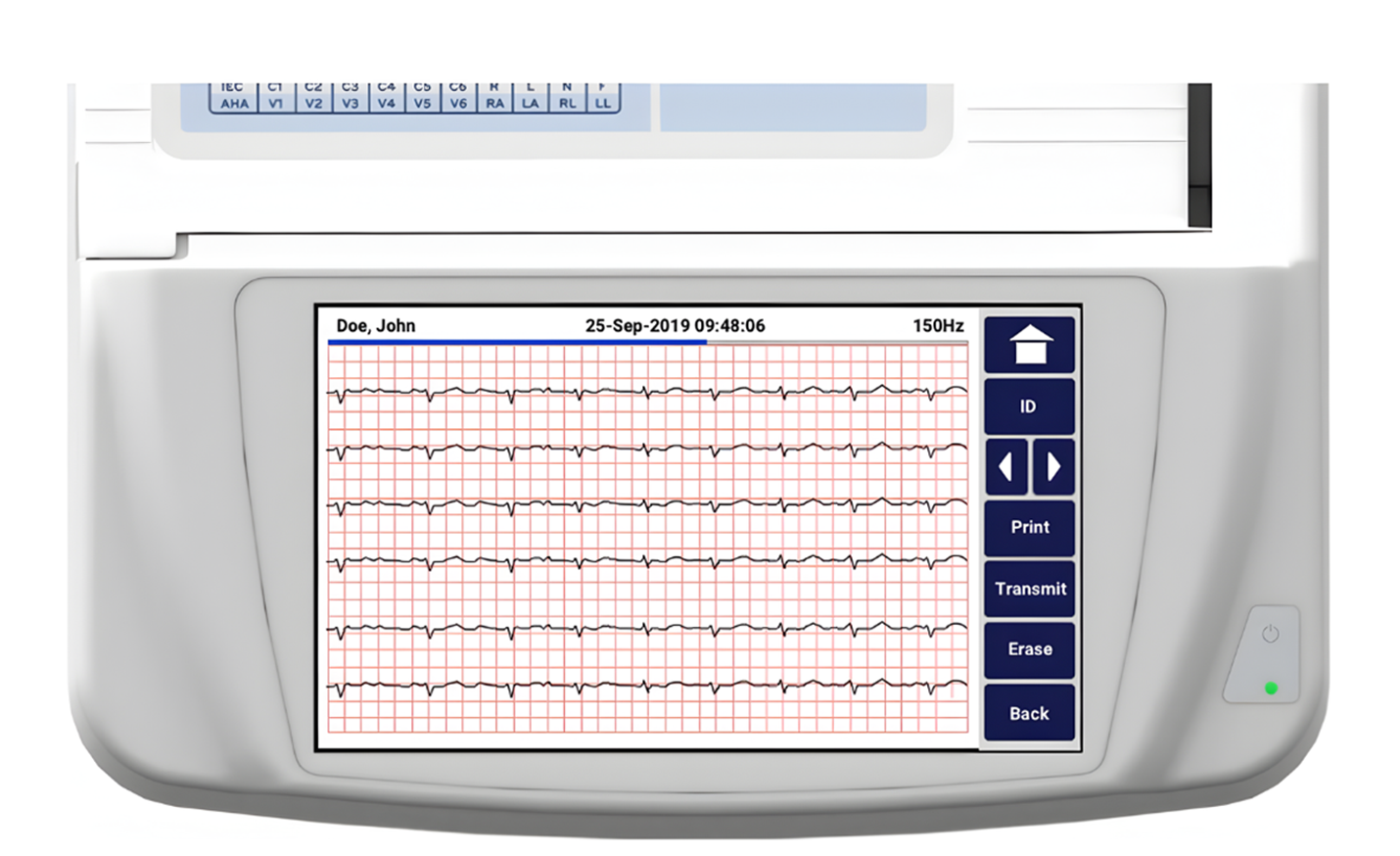

• 10.1" High-Resolution Color Touchscreen — Provides clear full 12-lead display for enhanced navigation, data entry, and electrode verification.

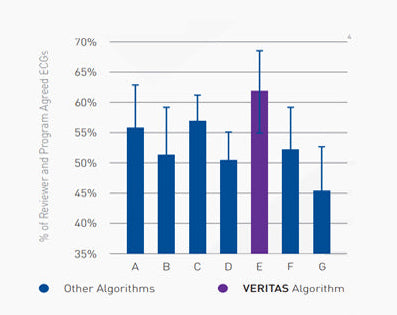

• VERITAS Algorithm — Delivers age- and gender-specific interpretation for tailored diagnostic accuracy.

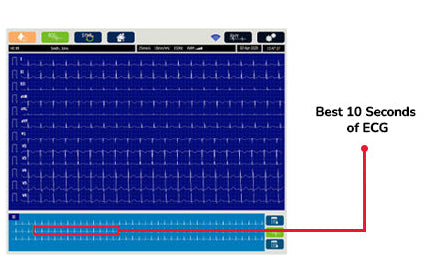

• Best 10 Technology — Automatically selects the cleanest 10 seconds from a full minute of recording to reduce errors and ensure reliable results.
• Exceptional Sampling Rate — Captures 40,000 samples per second per channel for precise pacemaker detection and high-quality diagnostic data.
• Bidirectional Connectivity — Integrates with Mortara e-scribe, third-party PACS systems, and cloud services via USB, LAN, modem, and wireless connectivity.
• EKG Safe Cloud Service — Enables secure storage and convenient access to PDF reports from anywhere.
• Lightweight and Portable — Easy to transport and store for busy clinics and hospitals.

• Burdick/Welch Allyn ELI 280 Electrocardiograph
• Pouch of Ultra II Electrodes (10 patients worth)
• Set of Adapter Clips, Pack of Paper (250 patients worth)

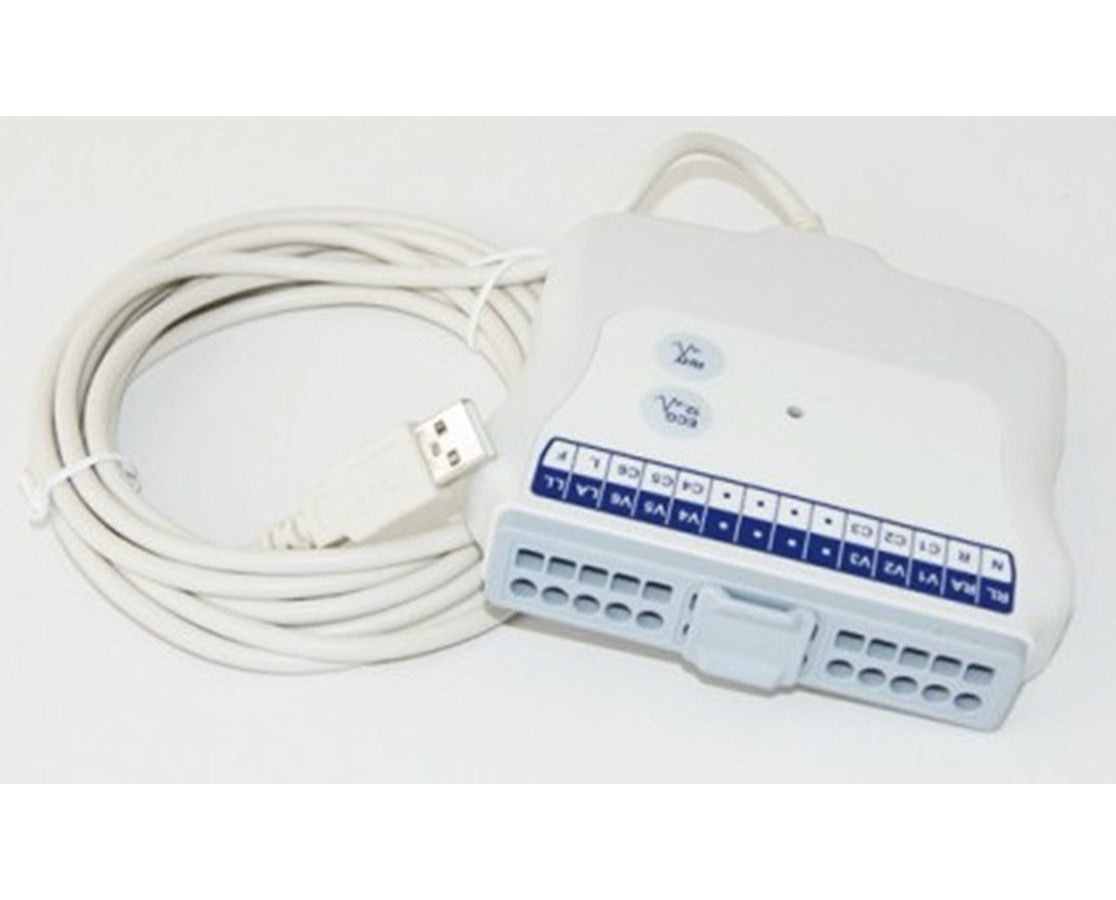

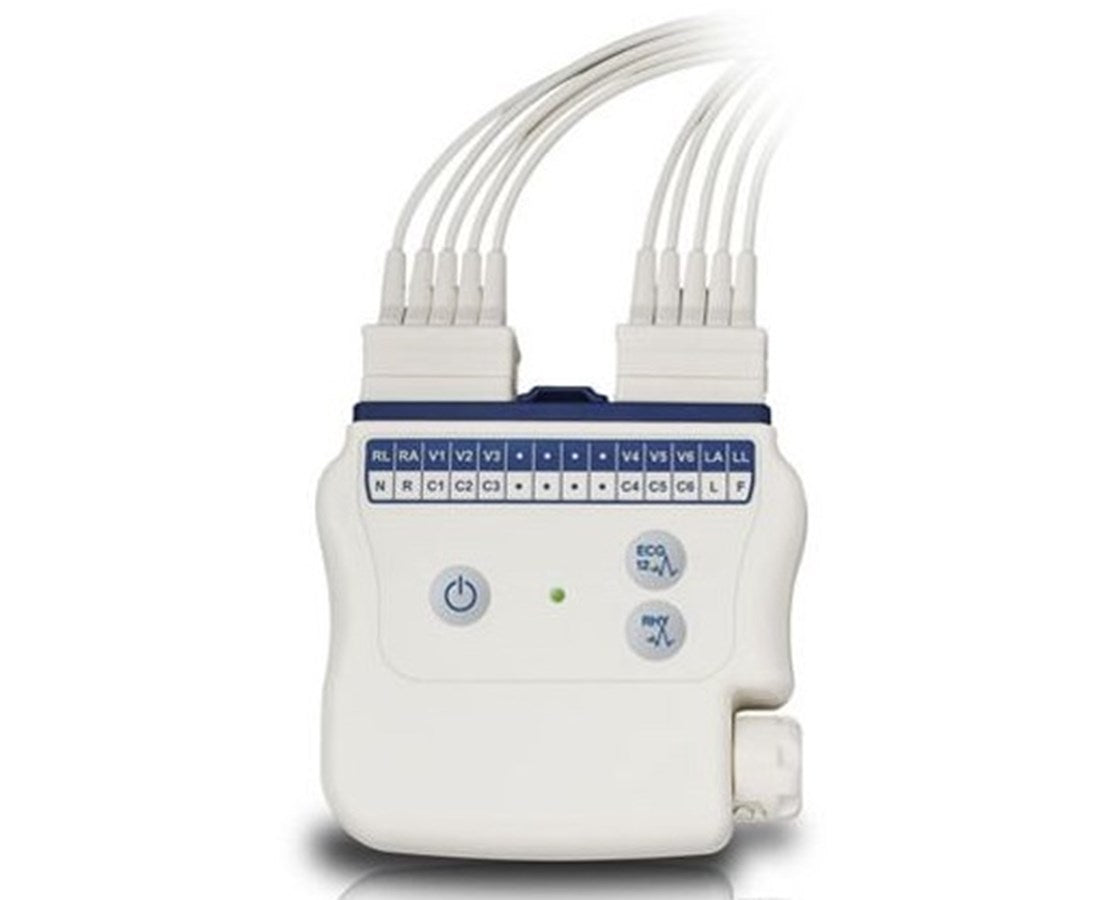

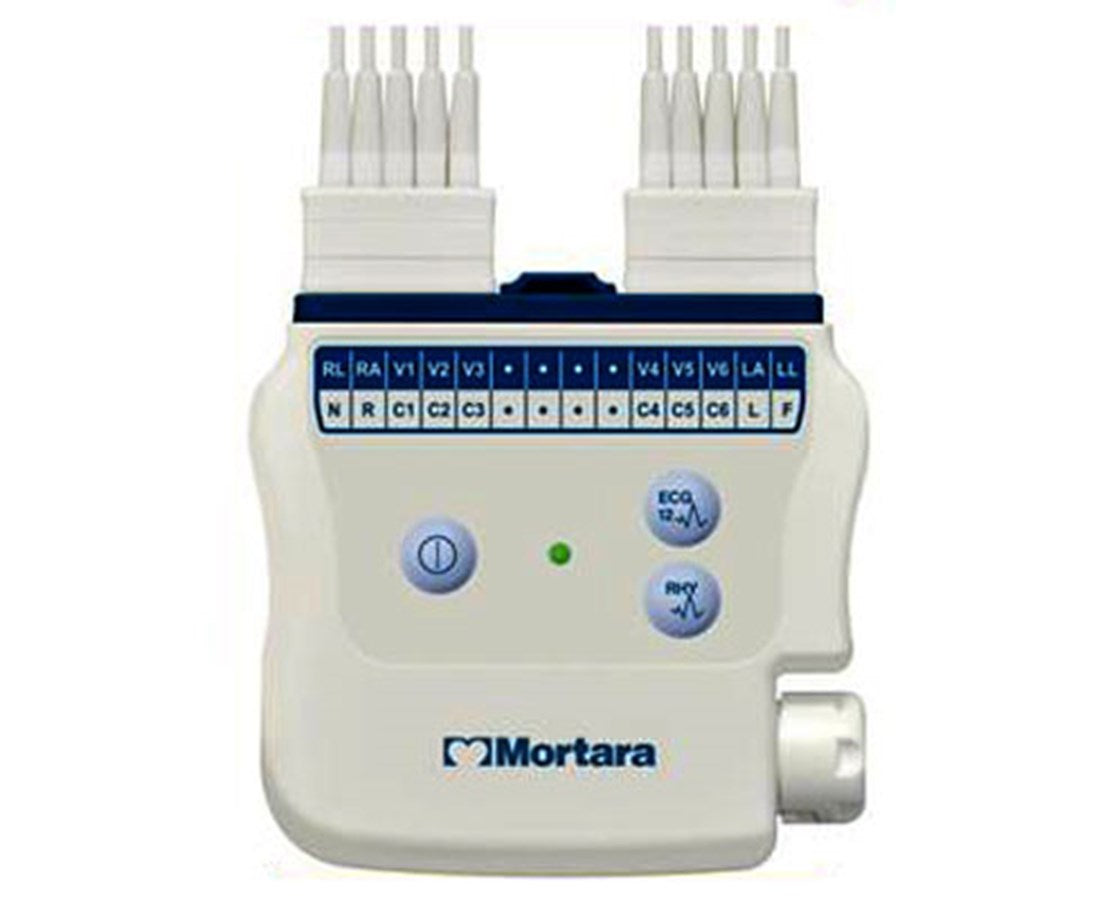

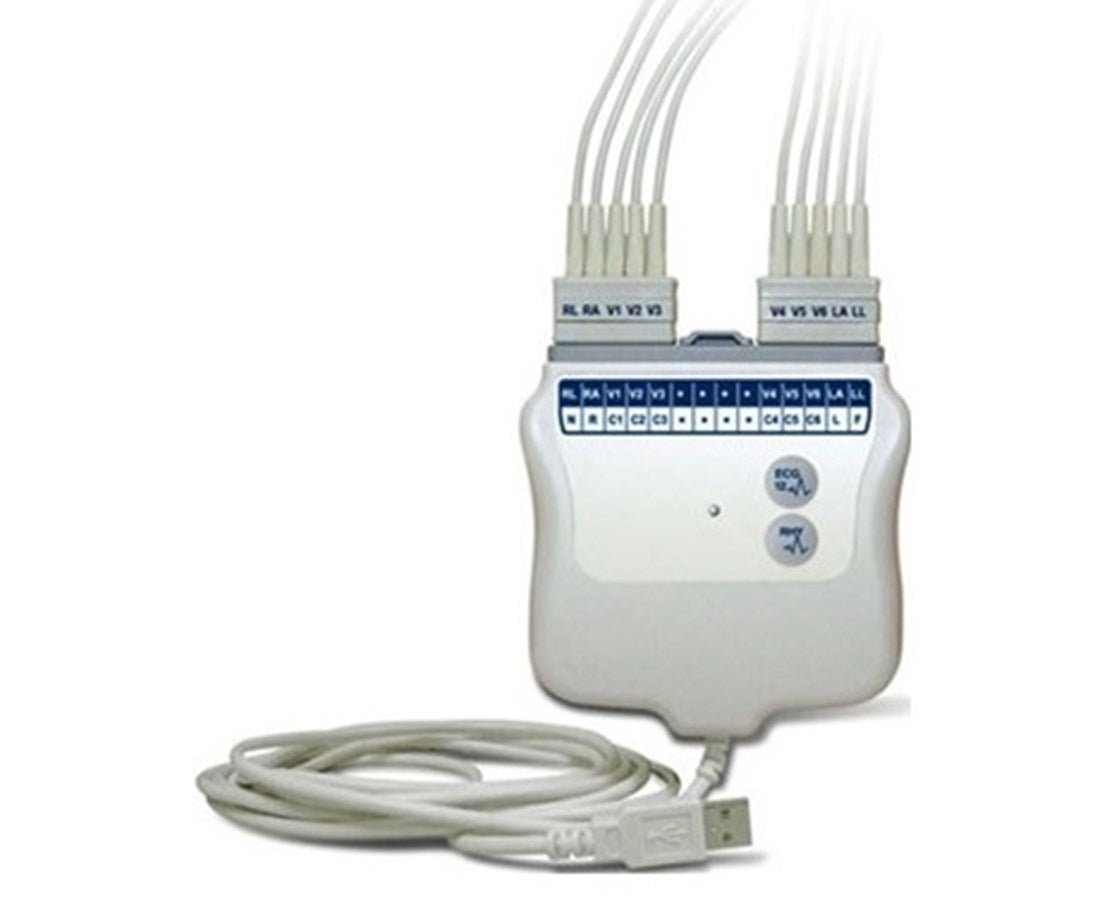

• Patient Cable, Power Cord, and 3-Year Warranty. Available acquisition modules include AM12 Wired Acquisition Module and WAM Wireless Acquisition Module
• Communication options include DICOM Communication and EMR Wireless Communication
• Storage options range from Standard (up to 40 EKG Results) to Expanded (up to 200 EKG Results)

What happens if it breaks?

Morningside Medical Equipment General Refund Policy: There is a 30-day Return Policy (from the date of delivery) for all supplies and products purchased through our online store. These items must be unopened, unused, and in the original manufacturer packaging. Unfortunately, no returns will be accepted if used or damaged, or after the 30-day period. Customers are responsible for all shipping charges associated with the return. Initial shipping charges will not be refunded, and a 15%-20% restocking fee could be applied depending on the product.

See our terms and conditions for more information: www.morningsidemedicalequipment.com/terms-and-conditions

• Display: 10.1" High-Resolution Color Touchscreen LCD.
• Dimensions: 15.5 x 14.5 x 4".
• Weight: 13.9 lbs. Sampling Rate: 40,000 samples/sec/channel for pacemaker detection; 1,000 samples/sec/channel for recording and analysis.
• Memory: Up to 40 EKGs; expandable to 200 EKGs.
• Frequency Range: 0.05 to 300 Hz.
• Filters: 40 Hz, 150 Hz, or 300 Hz low-pass filters; 50/60 Hz AC interference filter; high-performance baseline filter.
• Power Supply: Universal AC 110 VA with internal rechargeable battery (7+ hours battery life).
• Operating Temperature: 50–104°F.
• Storage Temperature: -40 to +158°F.
• Operating Humidity: 10–95%, non-condensing.
• Connectivity: EMR compatible, PC compatible, printer compatible.
• Print Formats: Standard or Cabrera. Print Speeds: 5, 10, 25, or 50 mm/s. Country of Origin: USA.
• Standards: Meets or exceeds IEC 60601-1 and IEC 60601-2-25 requirements.
