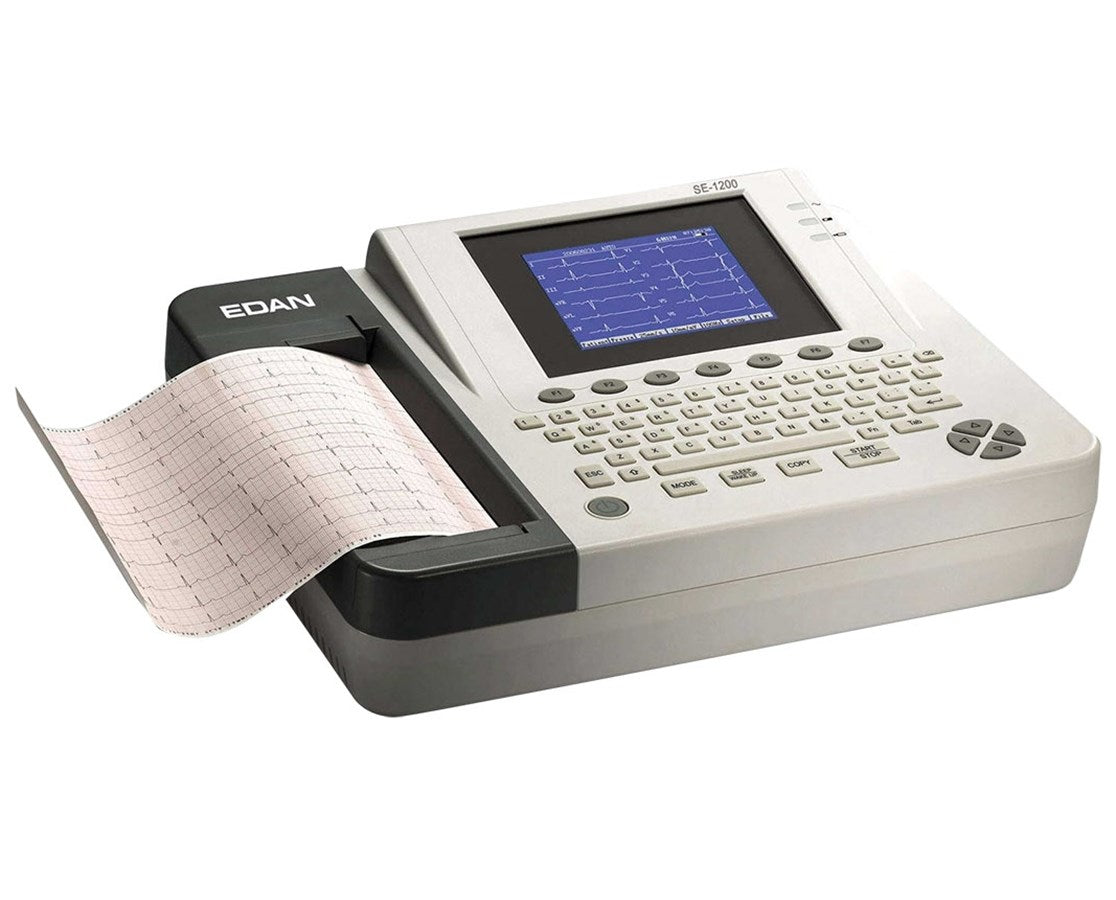

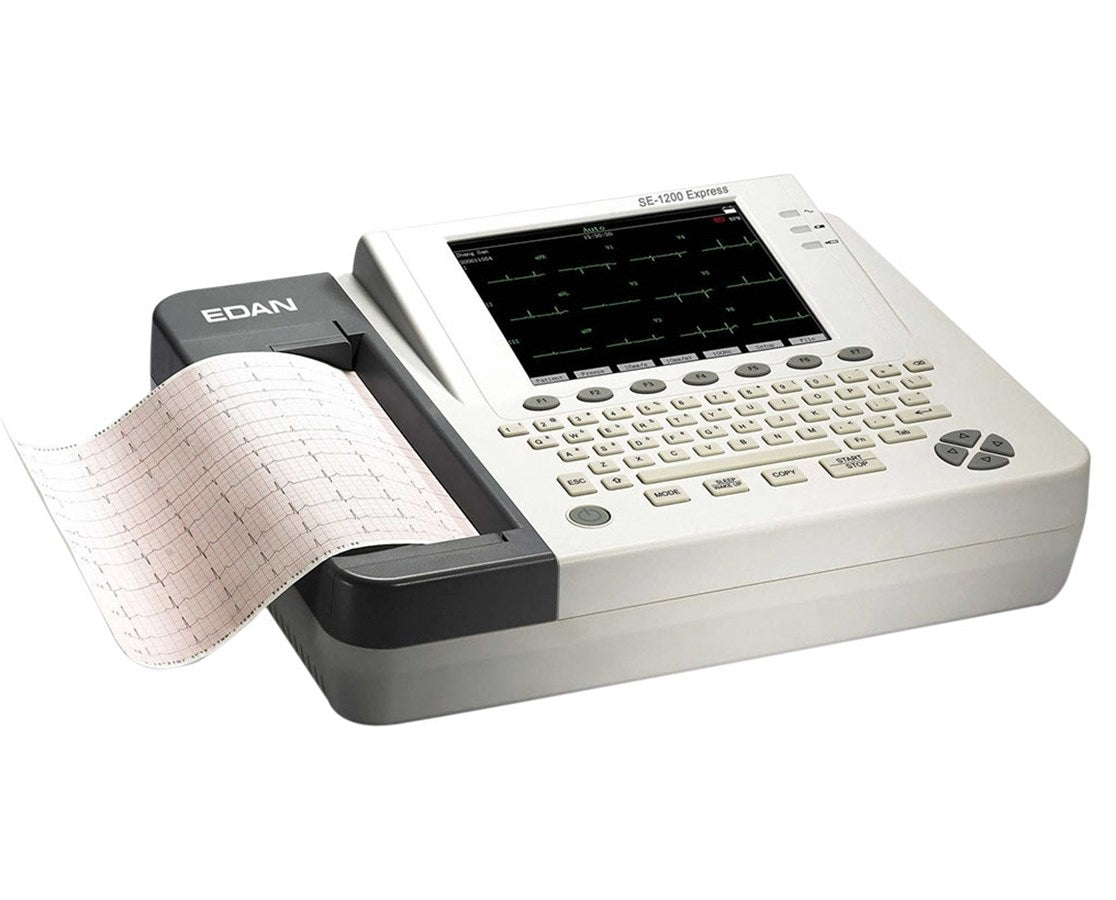

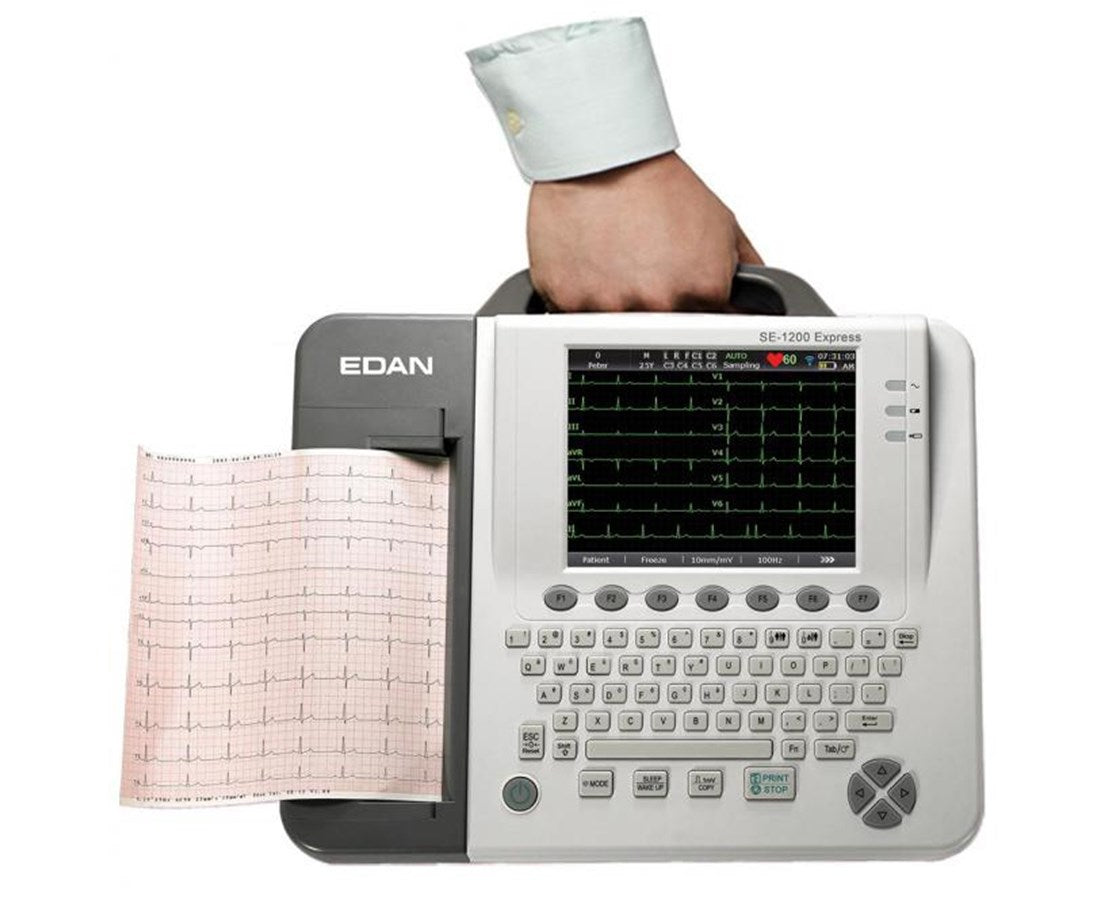

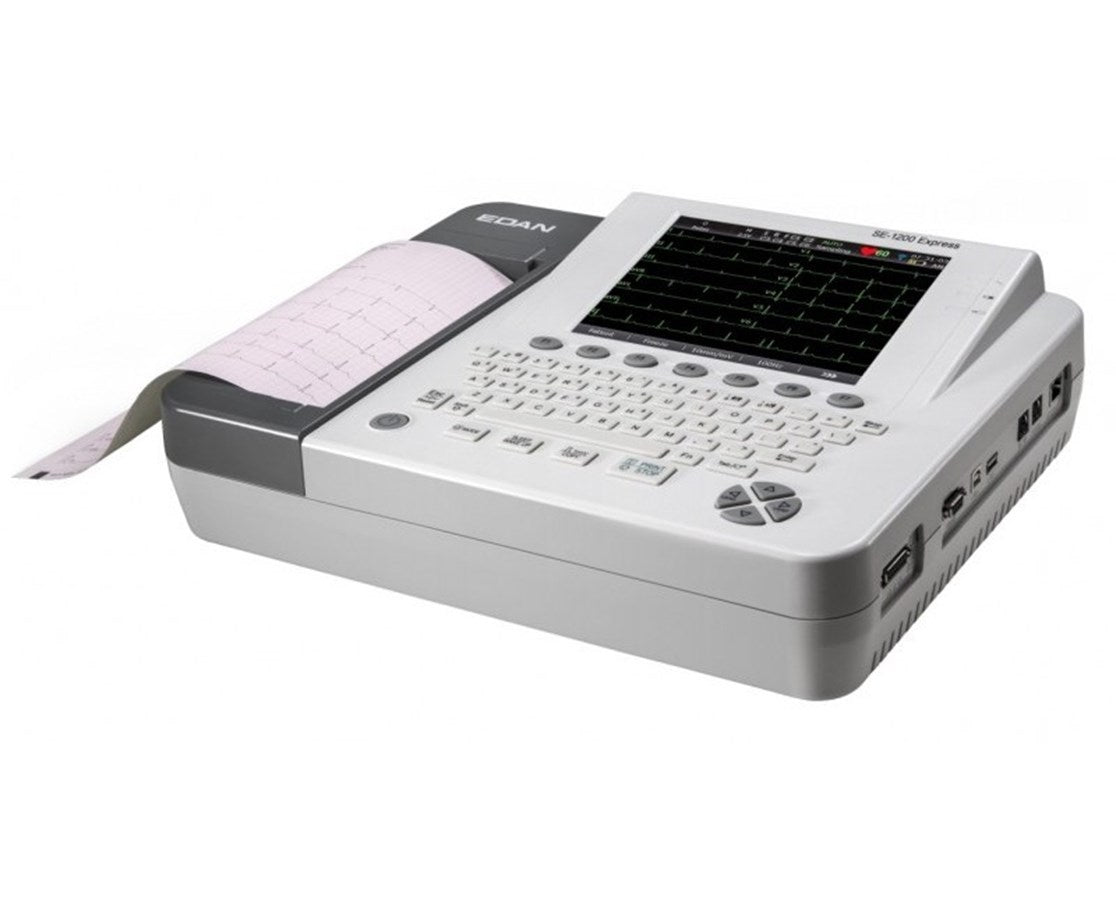

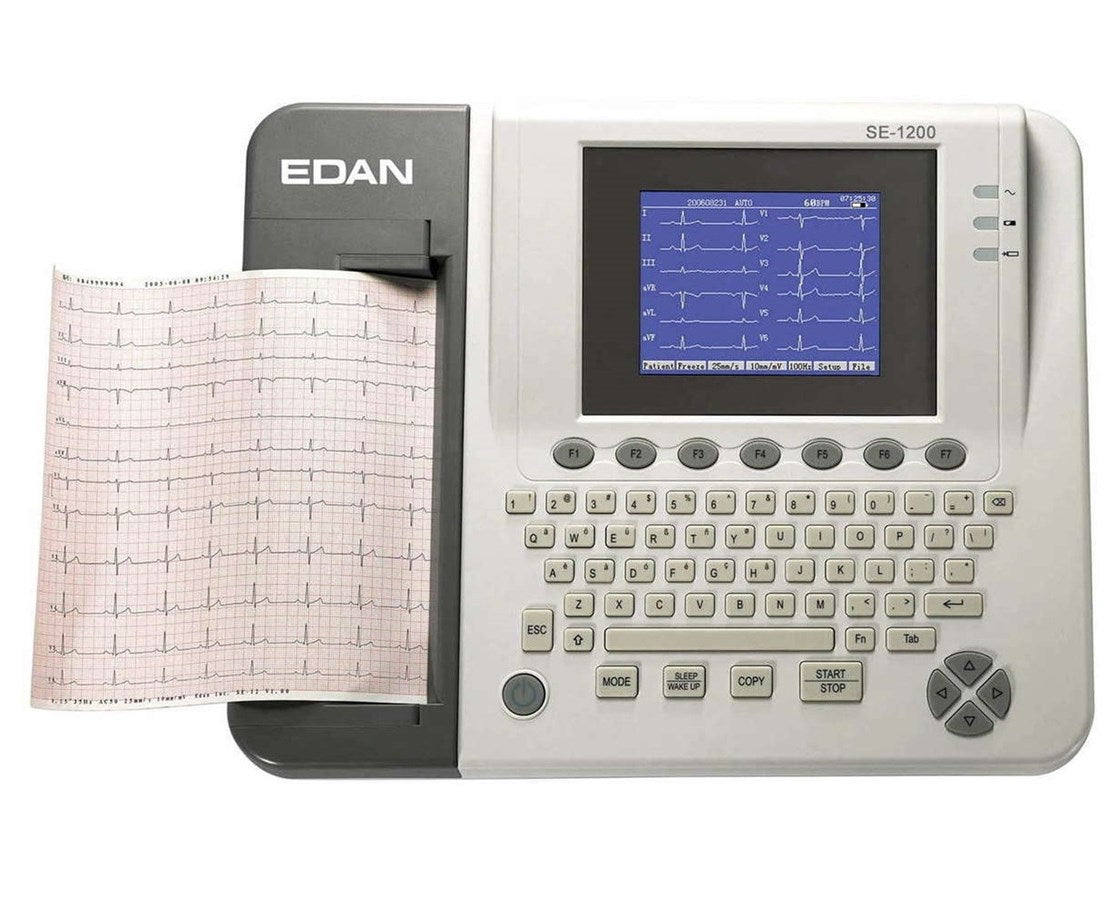

The Edan SE-1200 Series is a professional-grade 12-channel electrocardiograph engineered for reliable cardiac diagnostics in clinical and hospital settings. Weighing just 20 lbs with compact dimensions (16" L x 20" W x 12" H), this portable system delivers advanced EKG acquisition and interpretation without sacrificing mobility or ease of use.

• Clinical Accuracy & Advanced Interpretation 12-lead simultaneous acquisition at 1000 Hz sampling frequency with Glasgow interpretation algorithm—one of the most advanced EKG interpretation systems available. Real-time waveform freezing captures up to 120 seconds of rhythm data for comprehensive arrhythmia detection. Weak signal detection and anti-noise technology ensure accurate results even in challenging environments.
• Flexible Display & User Interface 8.4" LCD screen (single-color or multi-color touchscreen options) with full alphanumeric keyboard and one-touch operation keys. Barcode scanner support streamlines patient data management and workflow efficiency.
• Dual Printing & Data Management Built-in high-resolution thermal printer supports roll and Z-fold paper; compatible with external A4/US letter printers for full-size reports. Multiple printing modes include Auto Lead Group, Manual Lead selection, Rhythm analysis (60s/20s), and R-R histograms with trend analysis. Export formats include DAT, SCP, FDA-XML, and PDF.
• Comprehensive Connectivity USB, RS232, Ethernet, LAN, and WiFi connectivity enable seamless integration with hospital information systems and remote data transmission.

• Main unit, 12-lead EKG cable (4mm banana connector, AHA standard)
• 100 Bio ProTech resting tab electrodes
• 10 Unomedical 10-lead universal clips
• Z-fold recording paper (210mm × 295mm × 100 sheets)
• USA power cord
• rechargeable 2200mAH lithium battery with fixed bar
• 2 replacement fuses (1A), user manual, quick reference card, and interpretation guide

What happens if it breaks?

Manufacturer warranty: 2-year

Morningside Medical Equipment General Refund Policy: There is a 30-day Return Policy (from the date of delivery) for all supplies and products purchased through our online store. These items must be unopened, unused, and in the original manufacturer packaging. Unfortunately, no returns will be accepted if used or damaged, or after the 30-day period. Customers are responsible for all shipping charges associated with the return. Initial shipping charges will not be refunded, and a 15%-20% restocking fee could be applied depending on the product.

See our terms and conditions for more information: www.morningsidemedicalequipment.com/terms-and-conditions

• Display: Color LCD (8.4"), single-color or multi-color touchscreen options
• EKG Parameters: 12-lead simultaneous acquisition, 1000 Hz sampling rate, 0.05–150 Hz frequency range
• Filters: Lowpass (150/100/75 Hz), EMG (25/35/45 Hz/OFF), DFT (0.05–0.67 Hz)
• Memory: 100–200 EKGs storage (varies by configuration); 300–350 EKGs printout on battery
• Printing: Built-in thermal printer; 5–50 mm/s print speeds; external A4/US letter printer compatible
• Power: 100–240V AC, 50/60 Hz; 5-hour battery life
• Connectivity: USB, RS232, Ethernet, LAN, WiFi; PC compatible
• Dimensions & Weight: 16" L × 20" W × 12" H; 20 lbs
• Operating Environment: +5°C to +40°C; 25–80% non-condensing humidity
• Storage Environment: -20°C to +55°C; 25–93% non-condensing humidity
• Country of Origin: USA
