The Edan Express 12-Channel EKG Machine delivers advanced resting and stress EKG solutions for adult and pediatric patients. This portable, reliable system combines precise cardiac diagnostics with user-friendly operation, making it ideal for any point-of-care clinical environment. Built-in weak signal detection and anti-noise technology ensure accurate measurements even in challenging conditions.

• 12-Lead EKG with Signal Detection: Simultaneous 12-lead capture with weak signal detection for enhanced accuracy in any setting.
• Anti-Noise Technology & Comprehensive Filtering: Multiple filter options (LOWPASS, EMG, DFT) reduce interference and deliver clear, precise readings.
• Real-Time Waveform Freezing: 120-second EKG freezing and review capability, plus Vector EKG option for detailed analysis.
• Flexible Data Storage & Export: Stores up to 200 EKGs internally with USB expansion. Exports in PDF, SCP, FDA-XML, and DICOM formats via LAN or WiFi.
• 12.1" Foldable Touchscreen: High-resolution 800 x 600 LCD display with intuitive navigation and one-touch operation.
• Alphanumeric Keyboard: Age and gender presets with barcode scanner support streamline workflow and reduce data entry time.
• Thermal Printing Options: Supports standard thermal paper, A4 fax paper, and external USB printers. Automatically extends printing when arrhythmia is detected.

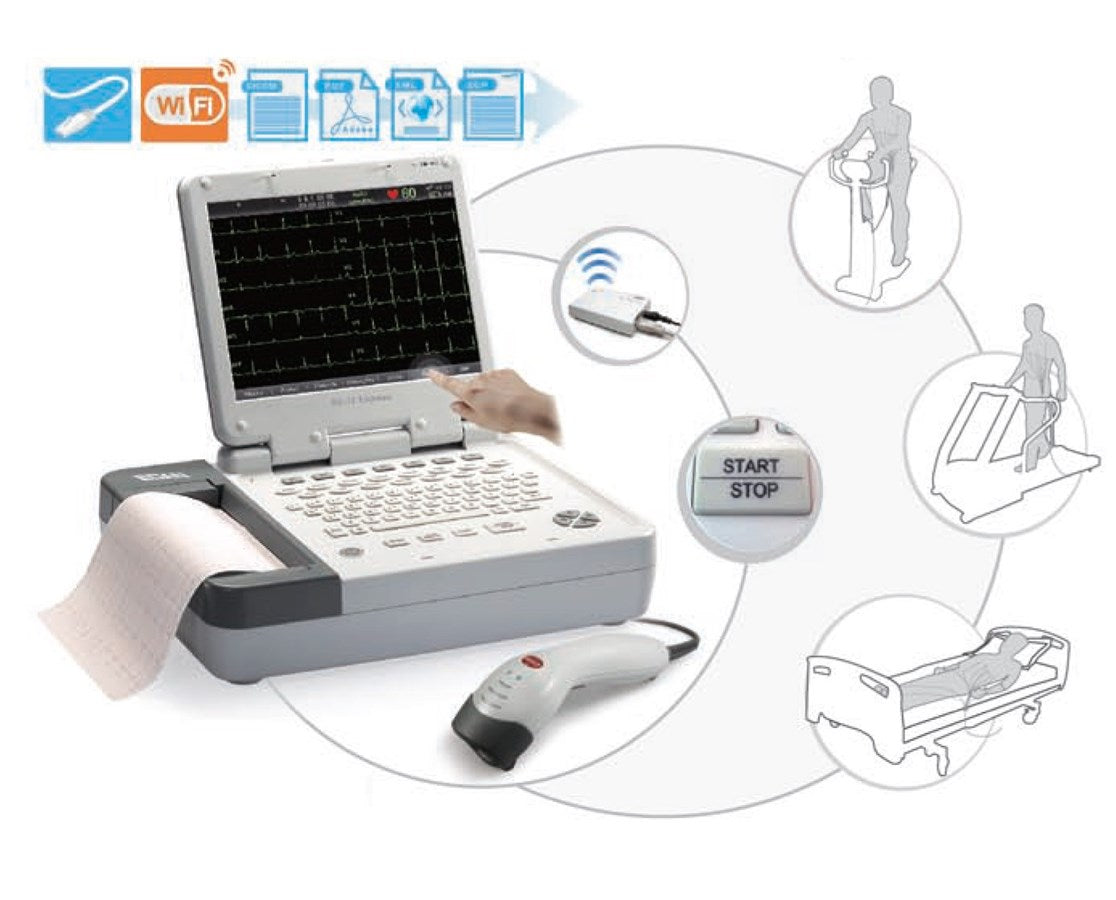

• Stress Testing Capability: Detects myocardial ischemia during exercise EKG. Compatible with various treadmills, ergometer bikes, and Suntech Tango+ exercise blood pressure monitors.

• Main Unit, 1 EKG Cable (4mm banana connector, AHA)
• 100 Bio ProTech Resting Tab Electrodes
• 10 Unomedical 10-Lead Universal Clips
• 1 Recording Paper (Z-fold, 210mm×295mm×100P)
• 1 Power Cord (USA standard)
• 1 Rechargeable Lithium Battery (2200mAH)
• 1 Fixed Bar for Battery
• 2 Fuses (1A)
• User Manual, Quick Reference Card, User Guide for Interpretation

What happens if it breaks?

Manufacturer Warranty: 2-Year

Morningside Medical Equipment General Refund Policy: There is a 30-day Return Policy (from the date of delivery) for all supplies and products purchased through our online store. These items must be unopened, unused, and in the original manufacturer packaging. Unfortunately, no returns will be accepted if used or damaged, or after the 30-day period. Customers are responsible for all shipping charges associated with the return. Initial shipping charges will not be refunded, and a 15%-20% restocking fee could be applied depending on the product.

See our terms and conditions for more information: www.morningsidemedicalequipment.com/terms-and-conditions

• Display: 12.1" TFT color LCD, 800 x 600 resolution, foldable touchscreen
• Dimensions & Weight: 17" L × 20" W × 11" H; 24 lb
• Power Supply: 100V–240V~ 50Hz/60Hz; Rechargeable lithium battery (2200mAH) with 4–5 hours runtime
• Measurement: Frequency range 0.05Hz–150Hz (−3dB); 1000 Hz sampling rate
• Memory: 200 EKGs internal storage, expandable via USB
• Filters: LOWPASS (150Hz/100Hz/75Hz), EMG (25Hz/35Hz/45Hz/OFF), DFT (0.05Hz–0.67Hz)
• Monitoring Formats: Auto, Manual, Rhythm, R-R
• Print Speeds: 5mm/s, 6.25mm/s, 10mm/s, 12.5mm/s, 25mm/s, 50mm/s (±3%)
• Operating Environment: Temperature +5°C to +40°C; Humidity 25%–80% non-condensing
• Storage Environment: Temperature −20°C to +55°C; Humidity 25%–93% non-condensing
• Connectivity: PC compatible; LAN and WiFi export; USB printer support
• Country of Origin: USA
