Product Details

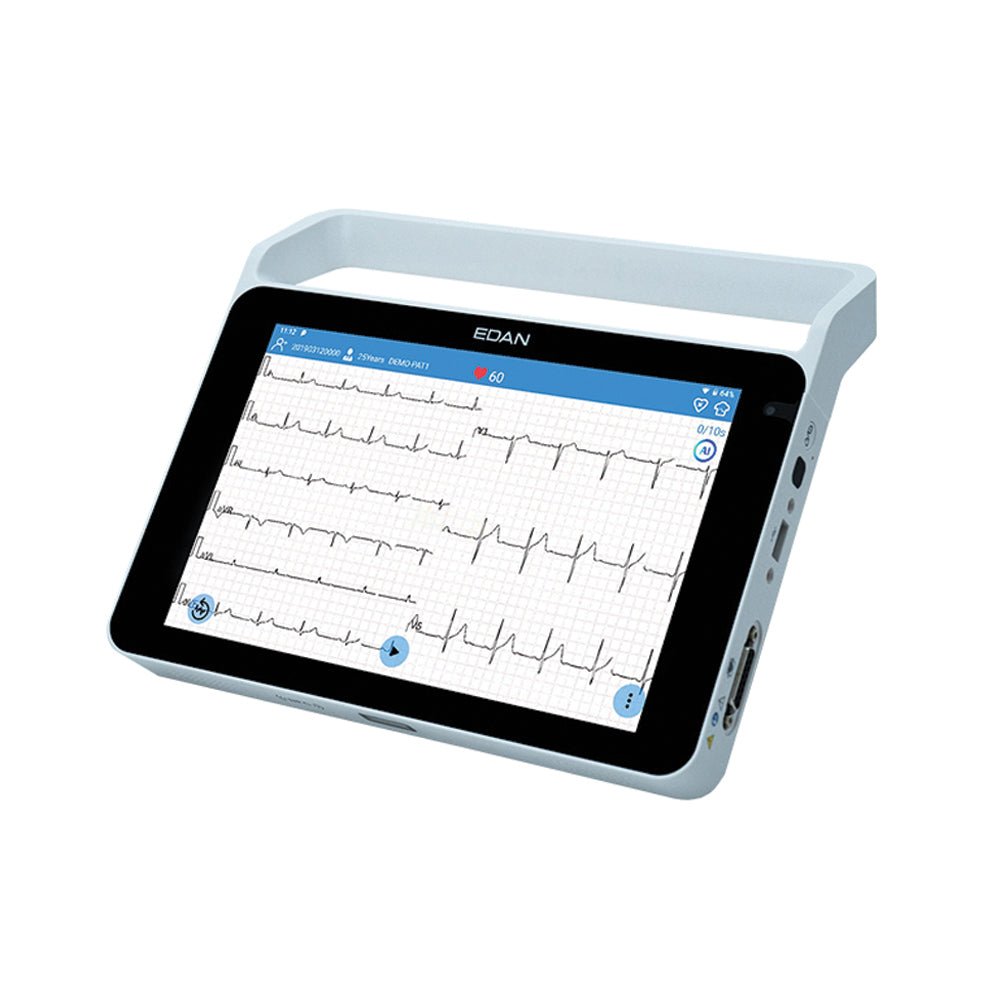

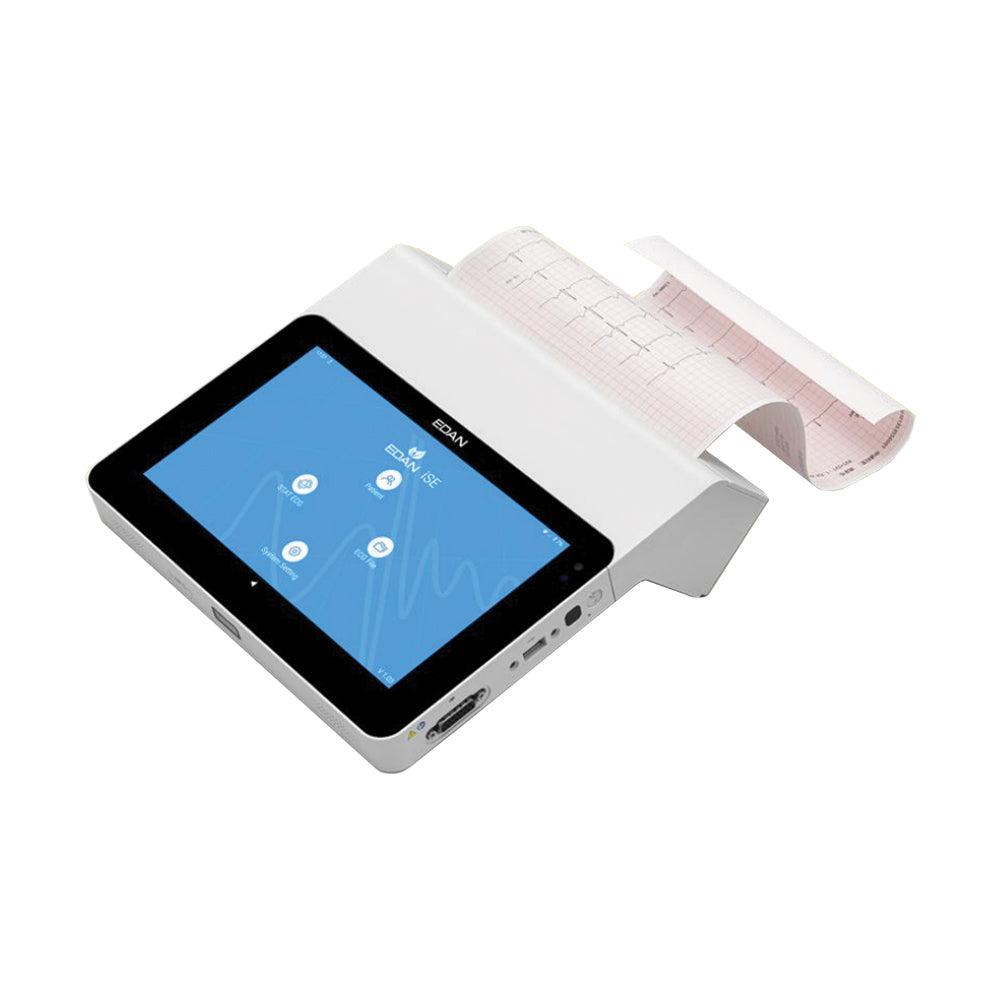

The Edan iSE EKG Machine Series combines tablet-like simplicity with advanced cardiac diagnostics. This lightweight, portable device features a 10" HD touchscreen and stores up to 100,000 EKGs with seamless bi-directional data sync via Wi-Fi, Bluetooth, or 4G. Available in three configurations—iSE-1210 (12-Lead with Carry Handle), iSE-1210.T (12-Lead with Thermal Recorder), and iSE-1810 (18-Lead)—the iSE Series integrates directly with EMR/HIS systems and supports multiple file formats including PDF, JPG, FDA XML, DICOM, and HL7.

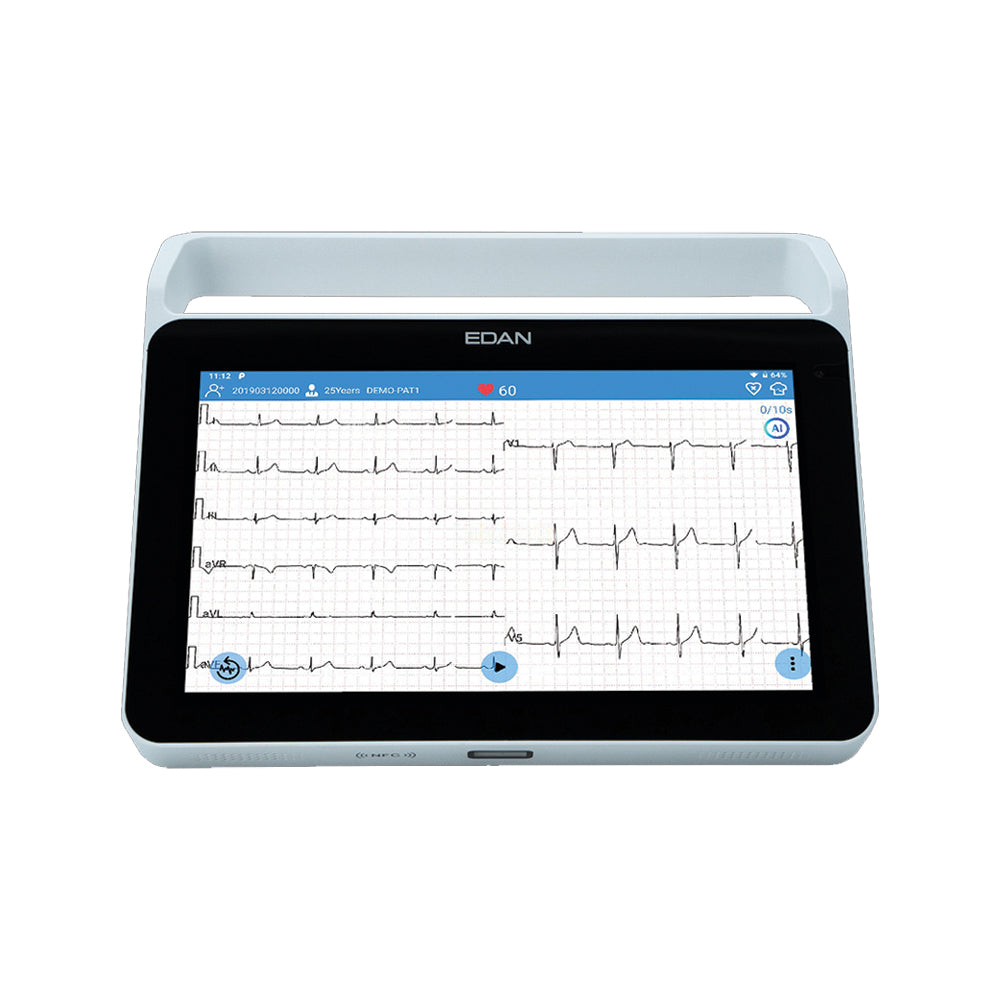

• Intuitive 10" touchscreen interface operates like an Android tablet for faster, easier EKG acquisition.
• Weighs under 2.2 lbs with built-in handle for portability.
• Zero-button design simplifies cleaning and disinfection.

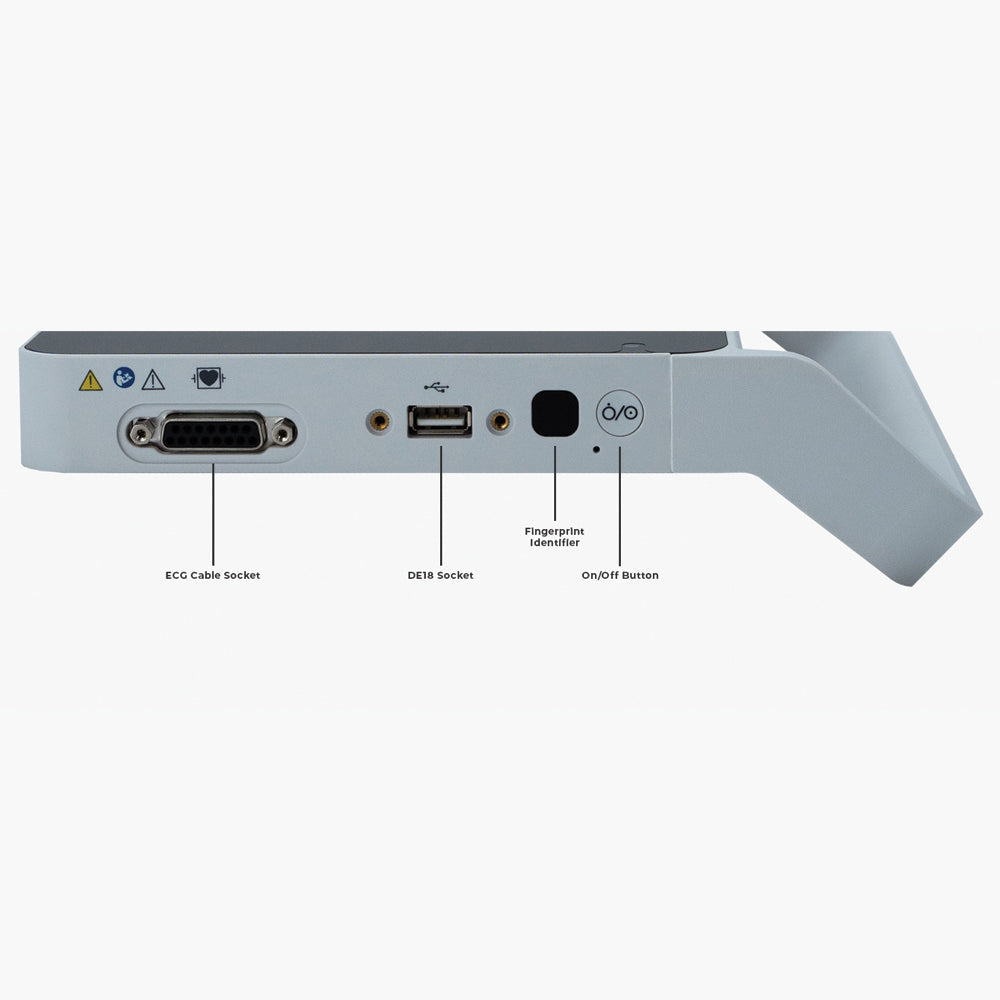

• Fingerprint identification provides secure access.
• Auto arrhythmia detection alerts clinicians to irregularities.
• Advanced Glasgow Algorithm interpretation with QTC analysis complements cardiac risk detection.
• Self-adaptive filter technology ensures superior signal quality in real-world clinical settings.
• Built-in rechargeable lithium-ion battery delivers up to 8 hours of operating time.

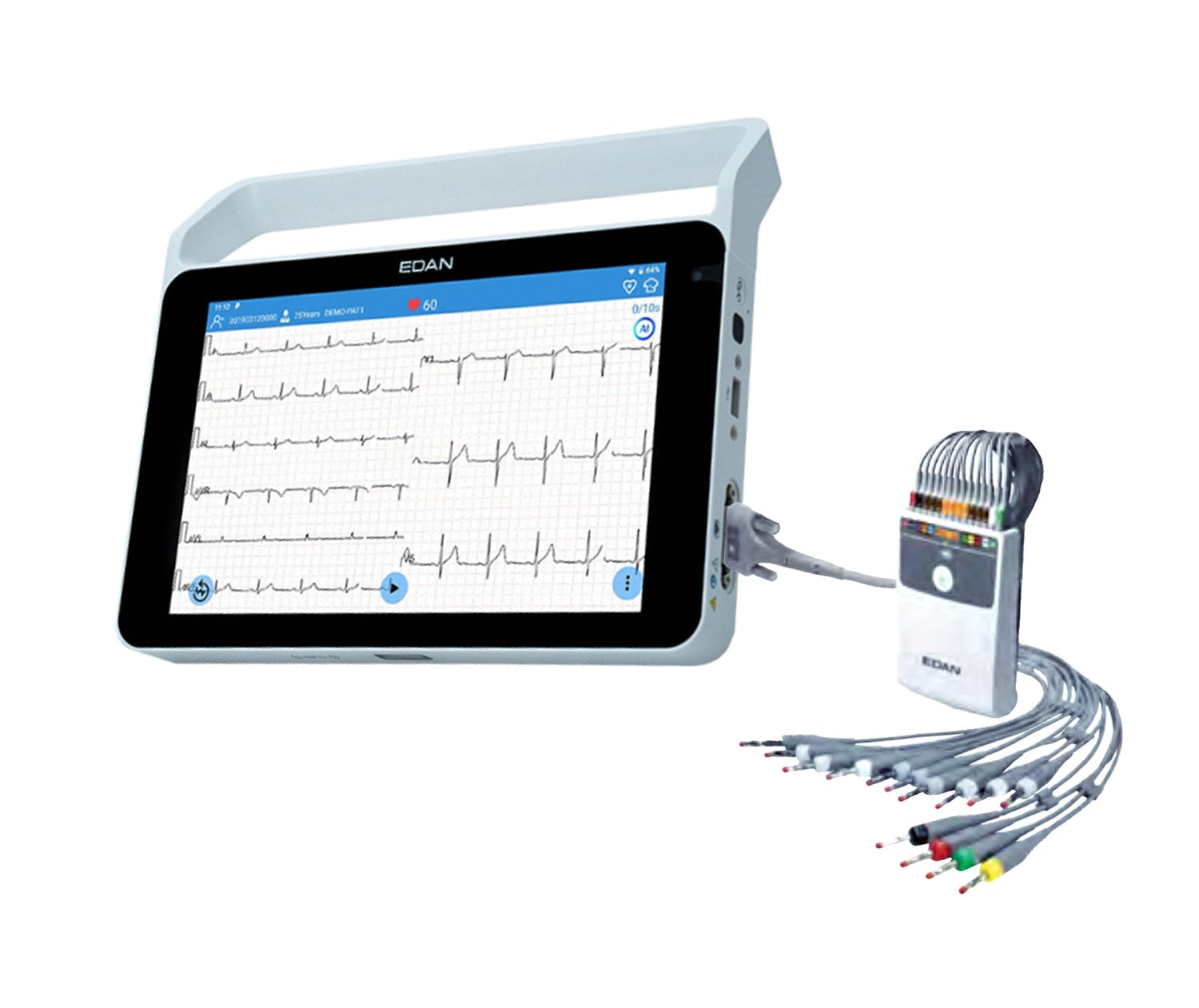

• Optional 18-lead configuration provides comprehensive coverage of right precordial and posterior wall.

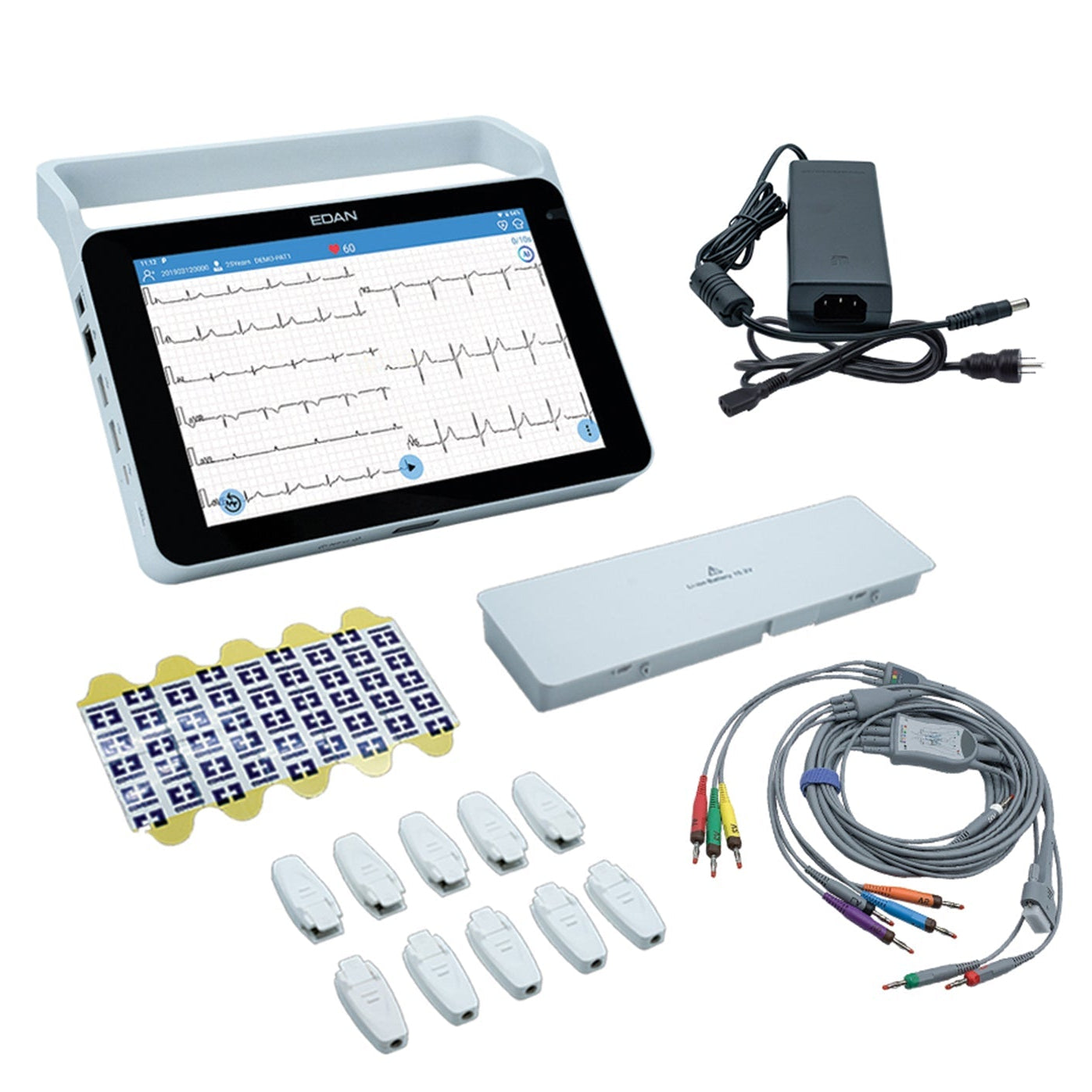

• EKG cable (4mm, banana connector, AHA)
• Rechargeable Li-Ion battery (3550mAh)
• 19V power adapter
• USA power cord, and 10-lead universal clips

What happens if it breaks?

Morningside Medical Equipment General Refund Policy: There is a 30-day Return Policy (from the date of delivery) for all supplies and products purchased through our online store. These items must be unopened, unused, and in the original manufacturer packaging. Unfortunately, no returns will be accepted if used or damaged, or after the 30-day period. Customers are responsible for all shipping charges associated with the return. Initial shipping charges will not be refunded, and a 15%-20% restocking fee could be applied depending on the product.

See our terms and conditions for more information: www.morningsidemedicalequipment.com/terms-and-conditions

• Display: Touchscreen.
• Frequency Range: 0.01Hz to 350Hz.
• Sampling Rate: 64,000.
• Memory Capacity: 100,000 EKGs.
• Power Supply: 19V with internal rechargeable battery; battery life exceeds 8 hours.
• Operating Temperature: 5°C to +40°C.
• Operating Humidity: 15%RH to 95%RH non-condensing.
• Weight: 1.2 kg (base), 1.4 kg (with handle), 2.3 kg (with thermal printer). Dimensions vary by configuration.
• EMR compatible with PC connectivity
