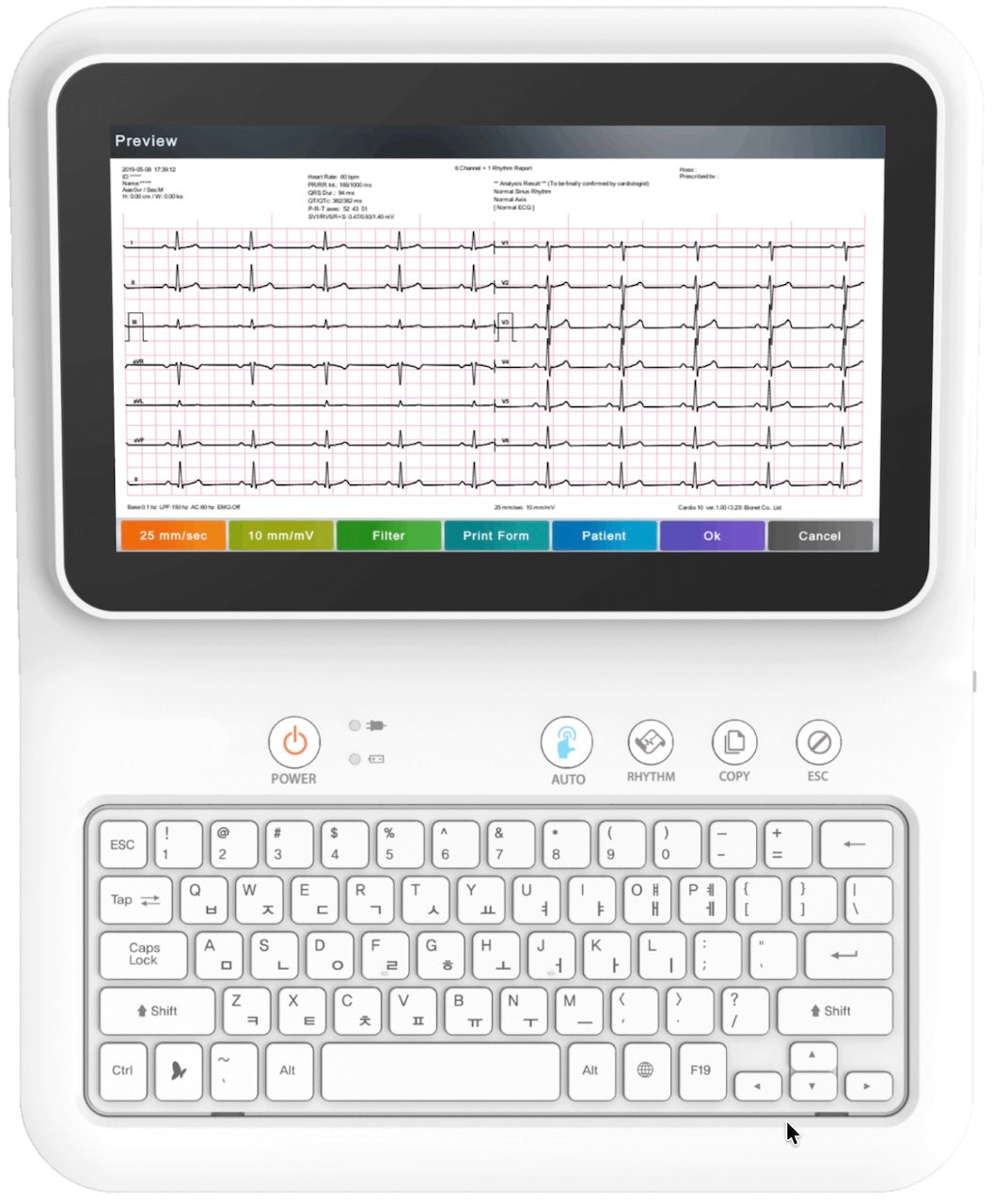

The MDPro Guardian 12-Channel Resting EKG with Spirometry combines advanced cardiac and pulmonary diagnostics in a single, efficient system. Featuring a vibrant 10.1" touchscreen display and one-touch automatic workflow, this device enables fast, confident assessments in busy clinical environments. With Glasgow interpretation, real-time arrhythmia detection, and up to 500 EKG files with 30-minute full disclosure storage, it delivers the intelligence clinicians need to diagnose with confidence.

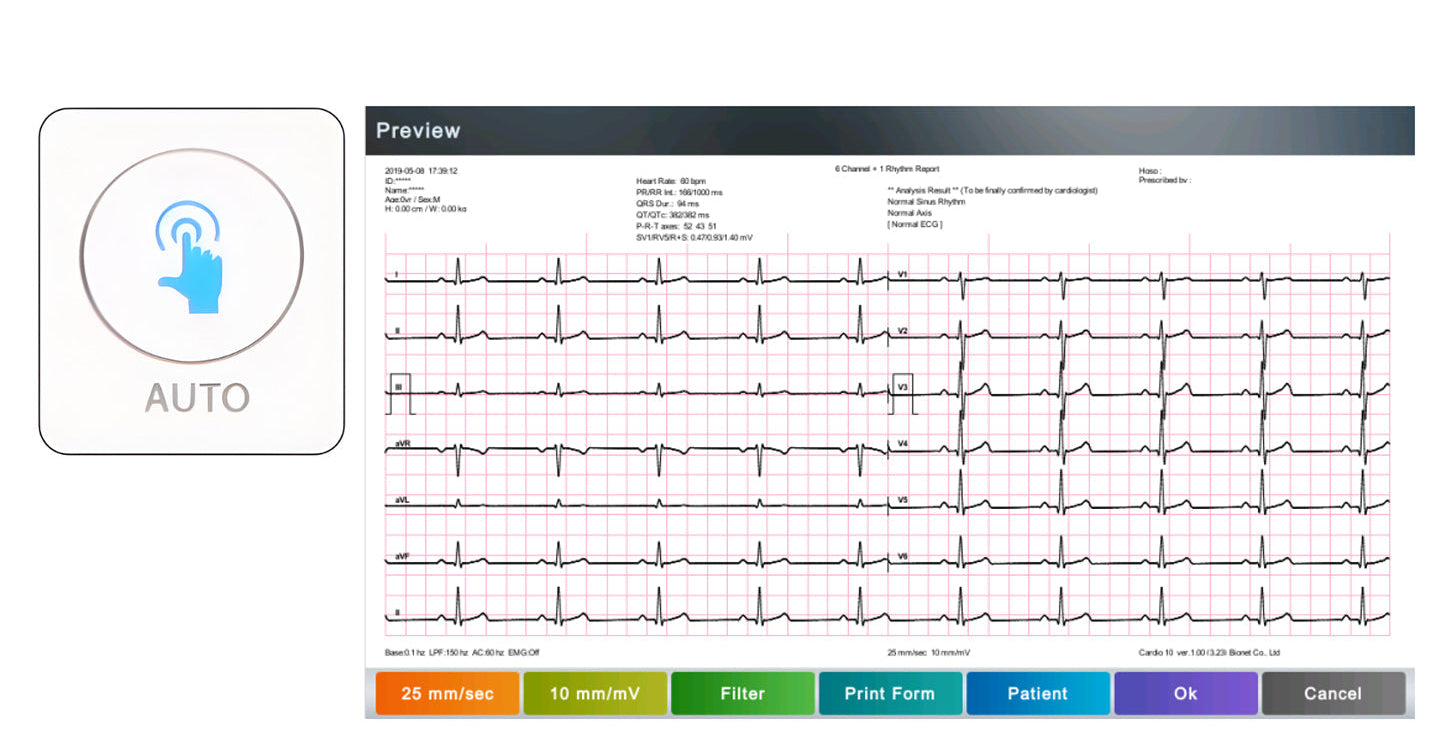

• One-Touch AUTO EKG workflow reduces exam time and manual errors with automatic acquisition, analysis, documentation, and export.
• Pre-acquisition mode enables interpretation and printout in as little as three seconds.

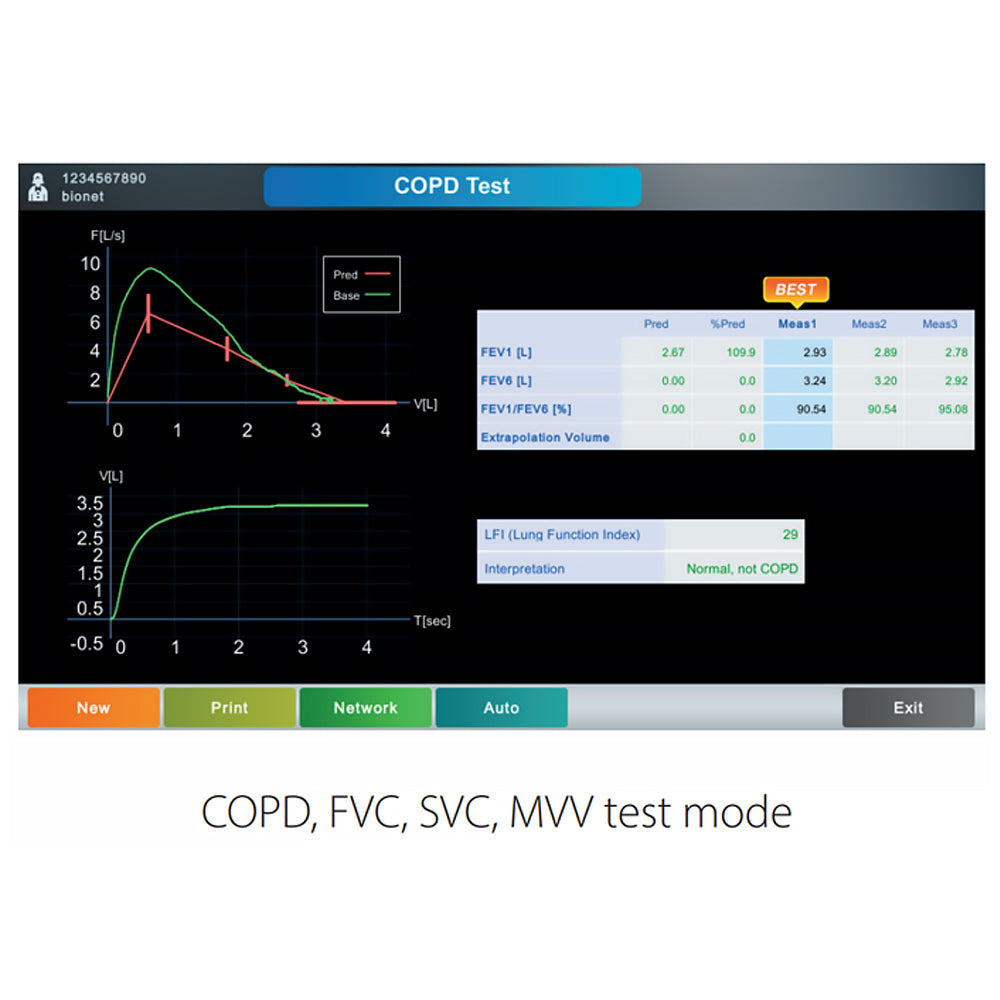

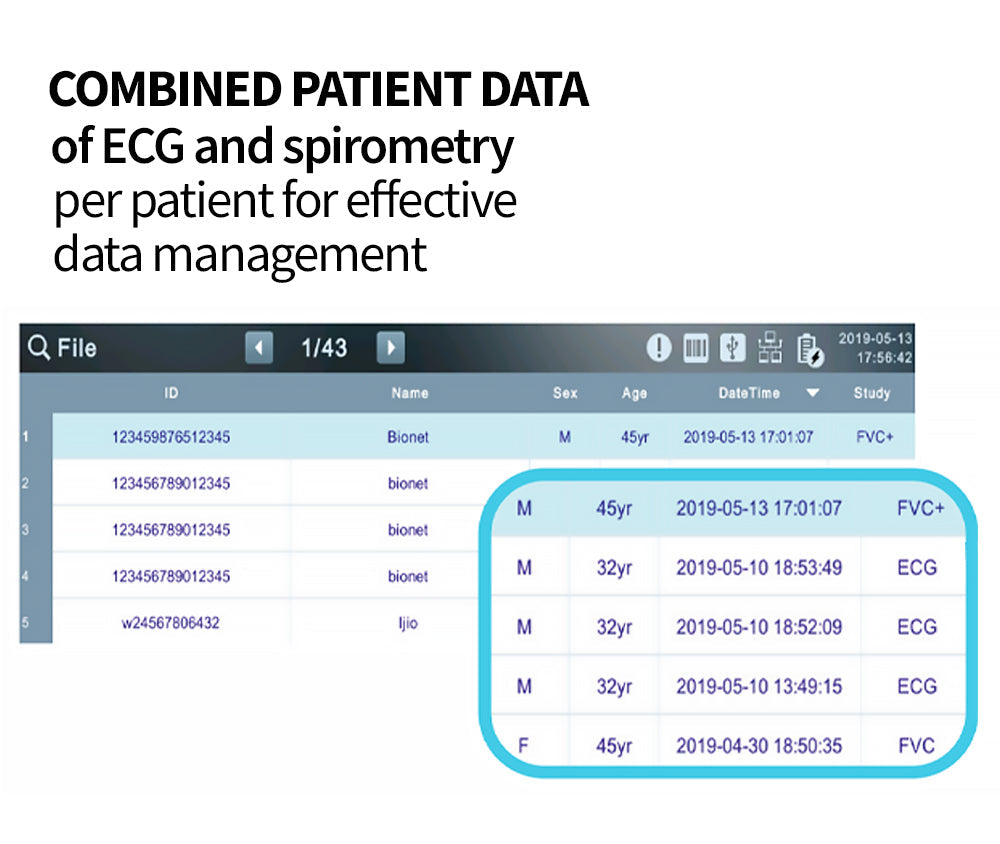

• Real-time arrhythmia detection identifies rhythm abnormalities as they occur. Integrated spirometry enables key pulmonary assessments alongside EKG in a single streamlined workflow.
• Glasgow interpretation—clinically validated for adults and children, including STEMI detection—supports accurate EKG analysis.

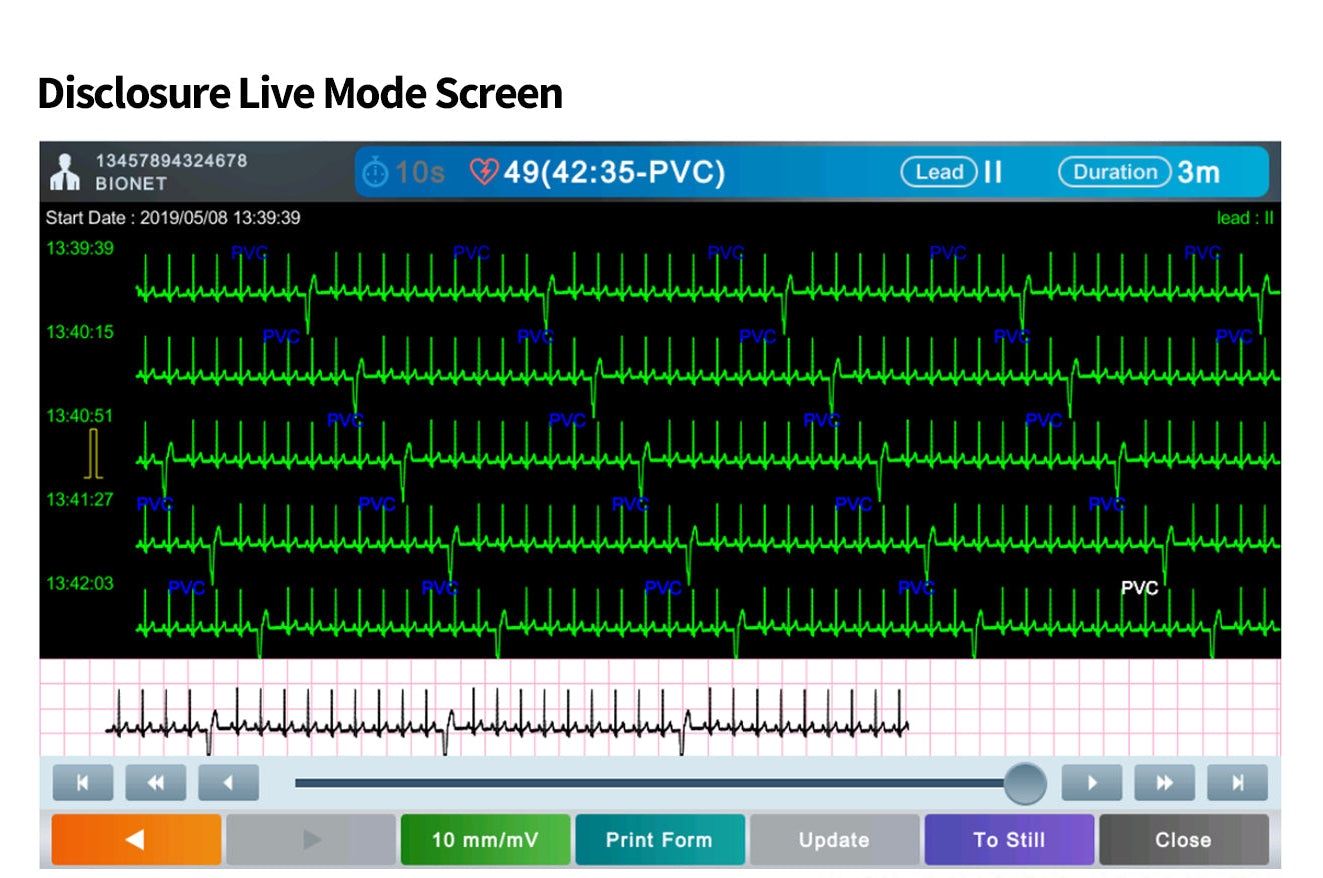

• Full-disclosure mode captures every beat with no gaps or missed events. Advanced EKG metrics including QTc and ST analysis improve diagnostic confidence.
• Multiple export options (PDF, XML, MFER, JPEG, BMP, DICOM) enable seamless EMR/HIS integration.
• Secure HIPAA-compliant wireless LAN connectivity supports fast data transmission across clinical networks.
• Built-in storage holds up to 500 EKGs with USB support for easy archiving.

• 1 MDPro Q70 Guardian Resting EKG Machine with Spirometry
• 10 Lead AHA Cable, Rechargeable Li-Ion Battery (6.5A, 6 Cell, 10.8V)
• Hospital Grade AC Power Cord (6ft)
• EKG Clips
• Sample Pack of Electrodes, gel and paper

What happens if it breaks?

Morningside Medical Equipment General Refund Policy: There is a 30-day Return Policy (from the date of delivery) for all supplies and products purchased through our online store. These items must be unopened, unused, and in the original manufacturer packaging. Unfortunately, no returns will be accepted if used or damaged, or after the 30-day period. Customers are responsible for all shipping charges associated with the return. Initial shipping charges will not be refunded, and a 15%-20% restocking fee could be applied depending on the product.

See our terms and conditions for more information: www.morningsidemedicalequipment.com/terms-and-conditions

• Display: 10.1-inch wide capacitive touchscreen LCD, 1024 × 600 resolution.
• Sampling Rate: 500Hz analysis, 8,000Hz digital.
• Memory: Up to 500 EKG records with 30-minute full disclosure.
• Filters: AC (50/60 Hz), Muscle (25–35Hz), Baseline Drift (0.05–0.2Hz), Low Pass (40/100/150Hz).
• Power: AC with rechargeable Li-ion battery; up to 10 hours or 350 EKG printouts per charge. Operating Temperature: 10–40°C. Operating
• Humidity: 30–85%.
• Dimensions: 286mm (W) × 350mm (D) × 144mm (H).
• Weight: Approx. 4.5kg.

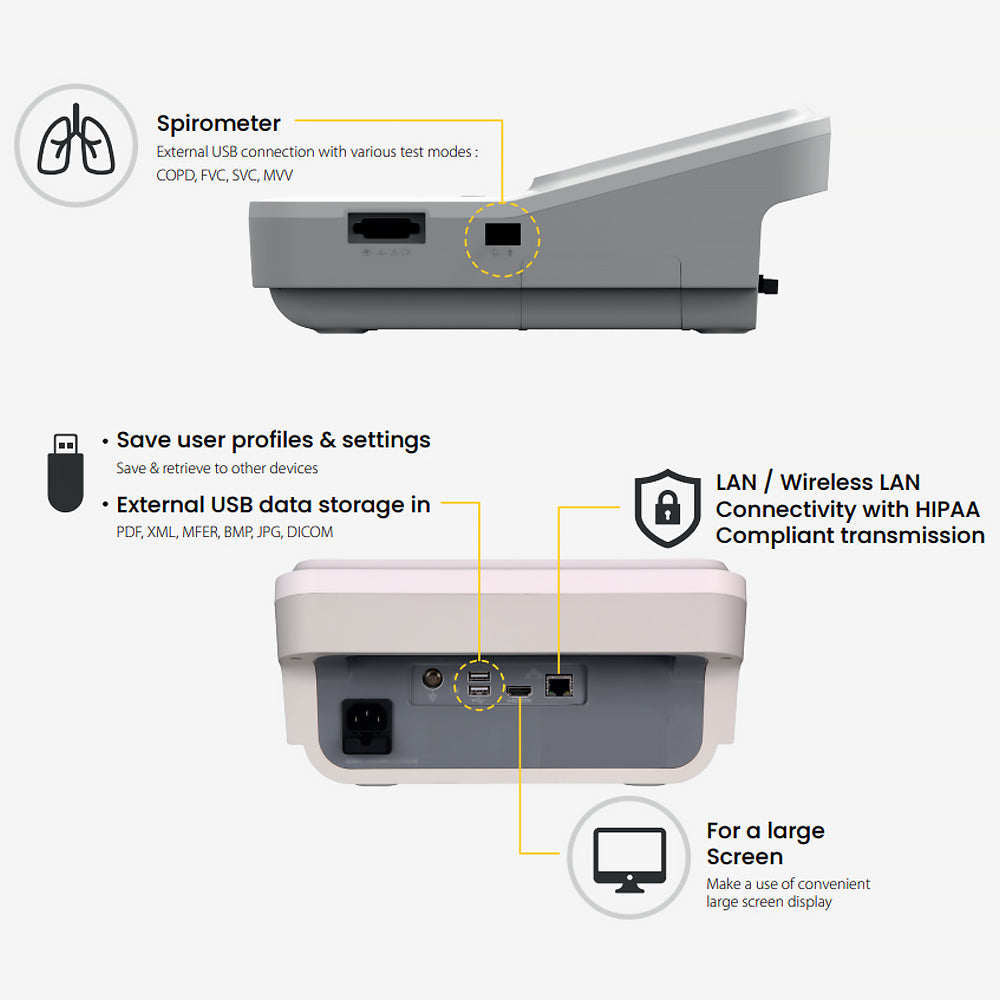

• Connectivity: USB, LAN, Wireless LAN, HDMI output; optional thermal printer supported.
• Print Formats: TEXT, GUIDE, VECTOR at 5, 12.5, 25, 50, 100 mm/sec.
• Standards: IEC 60601-2-25, AHA/ACCF/HRS recommendations, HIPAA-compliant data security.
