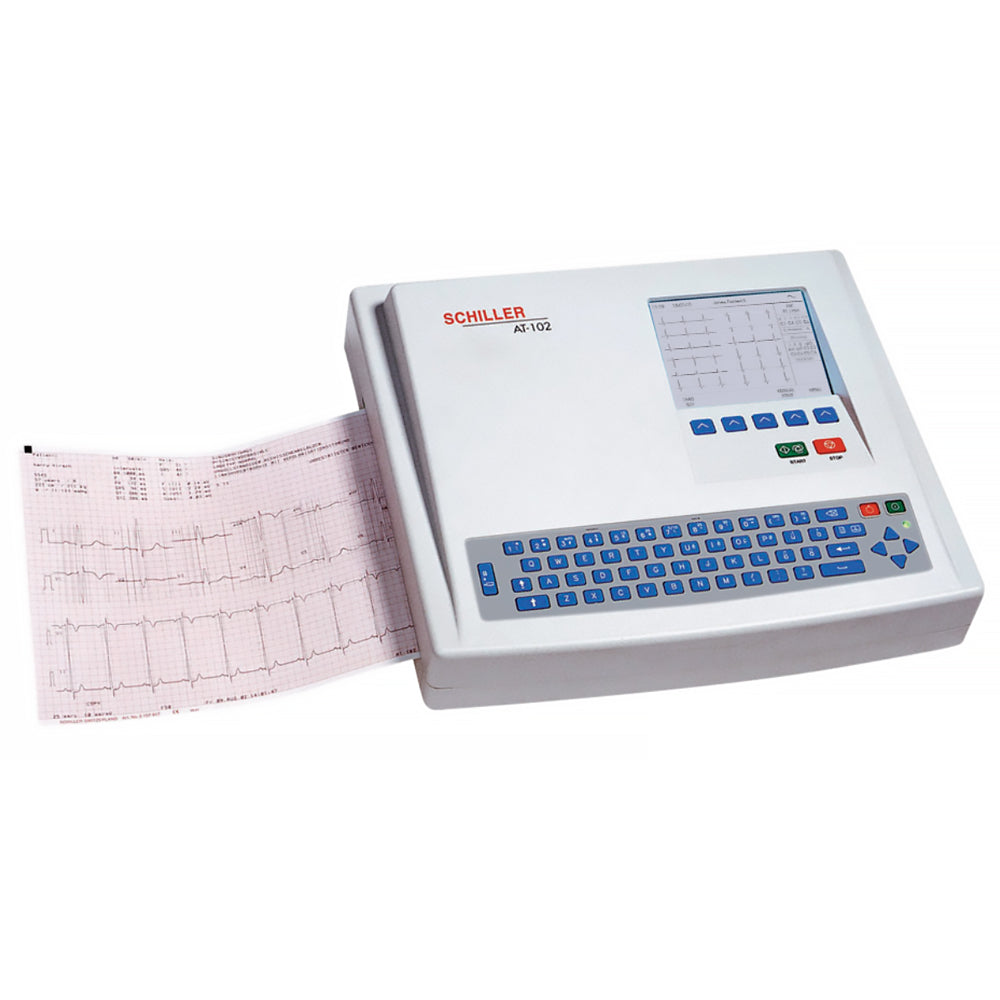

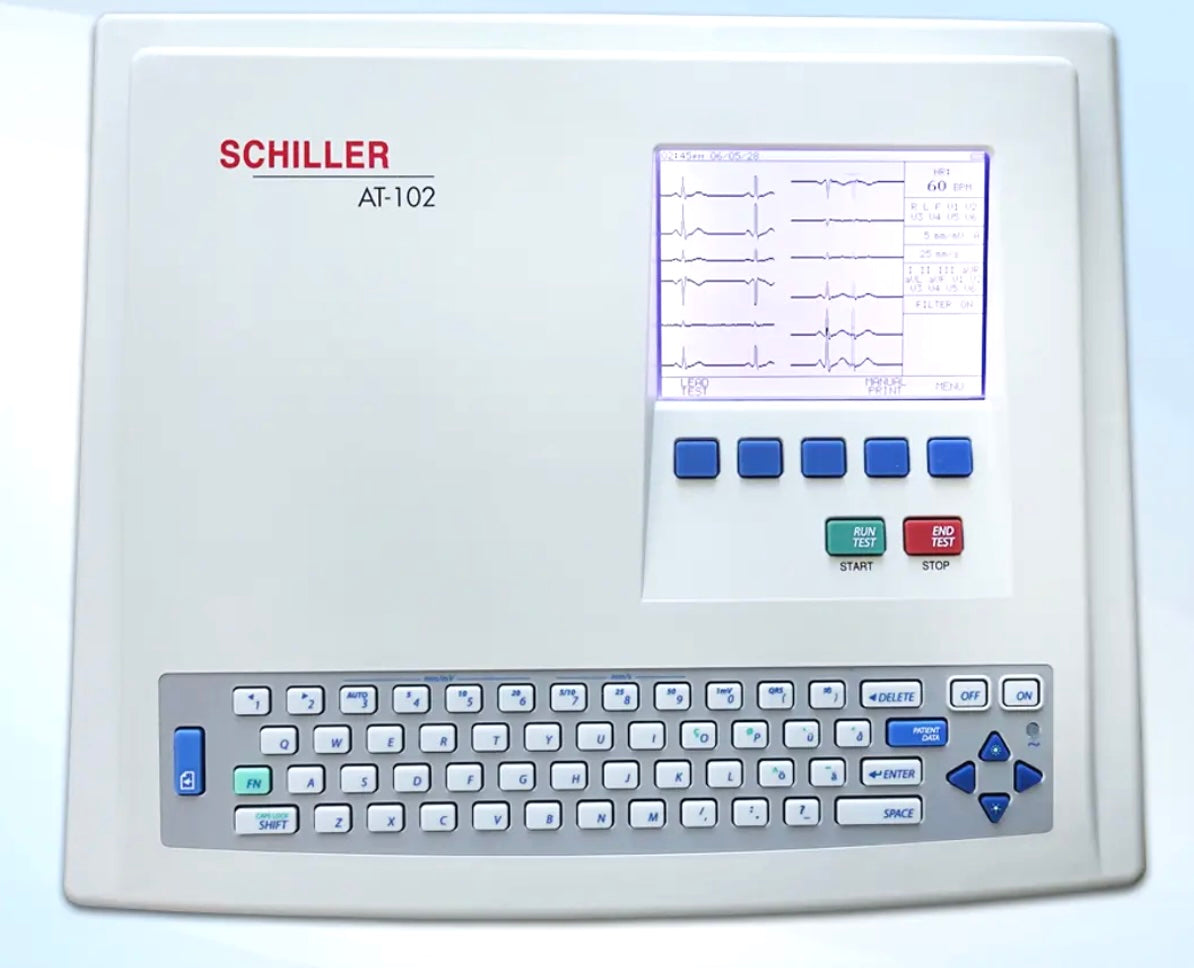

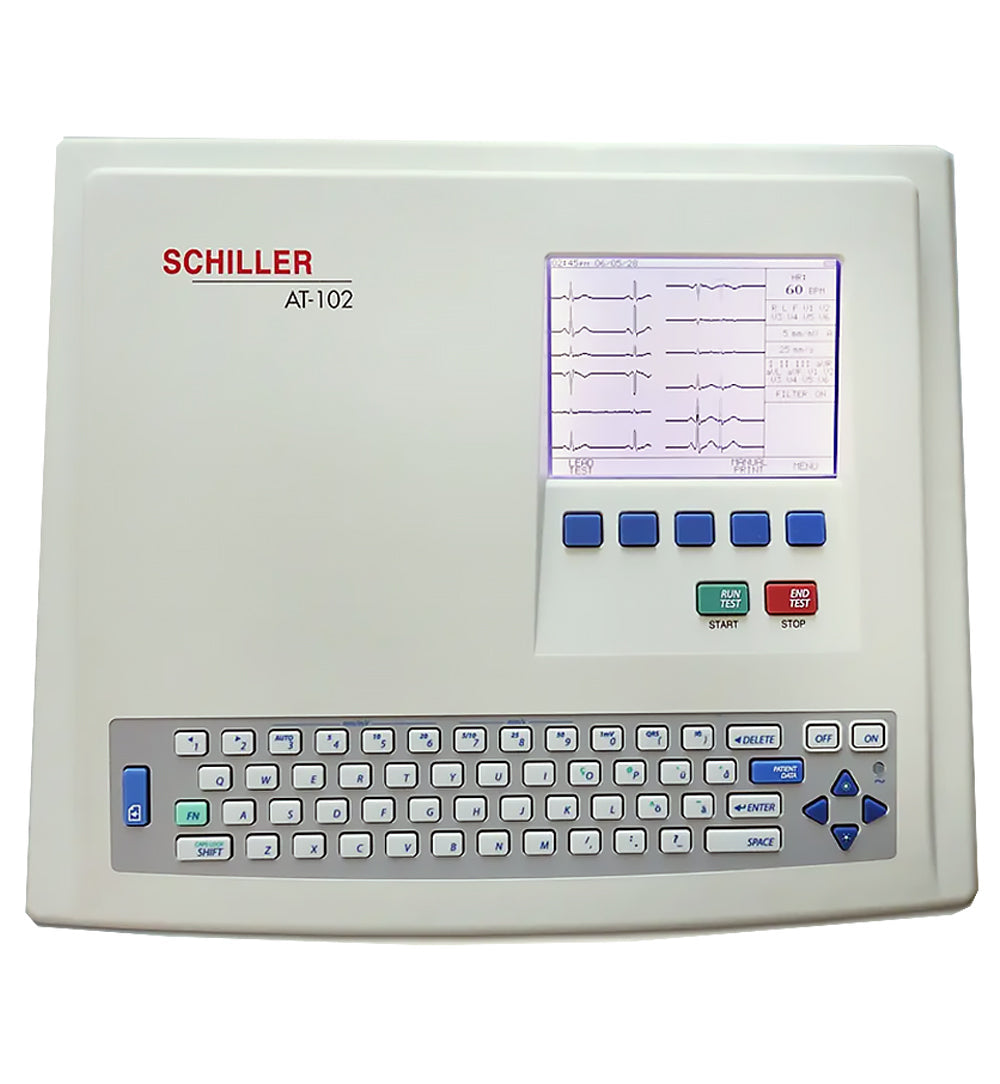

The Schiller CARDIOVIT AT-102 is a compact, user-friendly 12-lead EKG system designed for routine cardiac assessment in clinical, practice, and emergency settings. It acquires, stores, and automatically analyzes resting EKGs with physician-trusted interpretation algorithms built in. The device features a high-resolution color LCD display, full-size keyboard for efficient data entry, and Ethernet connectivity for seamless integration with EMR, HIS, and PACS systems. With capacity to store up to 40 records and a built-in A4 thermal printer for archive-quality output, it delivers reliable cardiac evaluation with minimal training required.

• Automatic 12-lead EKG analysis with SCHILLER's physician-trusted interpretation algorithm
• Built-in A4 thermal printer for high-resolution, long-term storage of recordings
• Multi-channel display showing up to 6 channels simultaneously on bright, easy-to-read screen
• One-key operation for streamlined EKG acquisition and faster workflow
• Simultaneous processing of all 12 leads for immediate recordings
• Ethernet wired LAN connectivity for bidirectional data transfer to medical systems
• Memory capacity of 40 resting EKG records

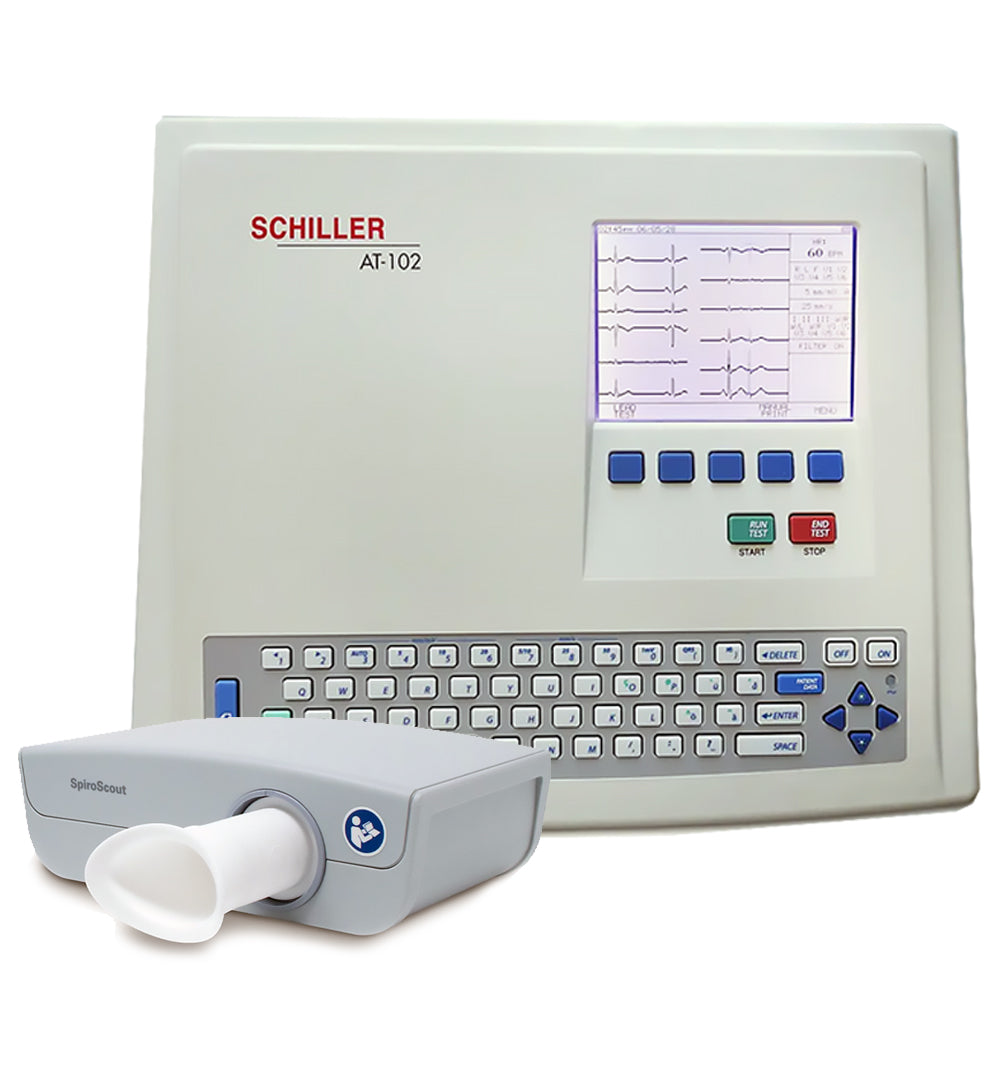

• Optional spirometry module for combined cardiac and pulmonary function testing
• Myogram filter and SCHILLER Baseline Stabilizer for stable, artifact-free recordings
• Battery life of approximately 4 hours (300 automatic EKG printouts or 100 spirometry records)

• Schiller CARDIOVIT AT-102 12-Lead EKG unit
• 10-lead patient cable
• 10 snap clip electrode adapters
• 500 disposable electrodes
• 1 pack of thermal paper
• Power cable
• Operating manual and interpretation guide
• Spiroscout SP flow sensor (spirometry model only)
• Box of 50 disposable mouthpieces and 2 nose clips (spirometry model only)
• 3-year limited warranty

What happens if it breaks?

Morningside Medical Equipment General Refund Policy: There is a 30-day Return Policy (from the date of delivery) for all supplies and products purchased through our online store. These items must be unopened, unused, and in the original manufacturer packaging. Unfortunately, no returns will be accepted if used or damaged, or after the 30-day period. Customers are responsible for all shipping charges associated with the return. Initial shipping charges will not be refunded, and a 15%-20% restocking fee could be applied depending on the product.

See our terms and conditions for more information: www.morningsidemedicalequipment.com/terms-and-conditions

• Display: High-resolution color LCD screen
• Measurement: Frequency range 0–120 Hz (UEC/AHA standard)
• Memory: 40 records capacity
• Filters: Myogram filter (muscle tremor) at 25 Hz or 35 Hz (switchable); SCHILLER Baseline Stabilizer and Smoothing Filter included
• Power Supply: Battery life approximately 4 hours of normal use
• Environmental Operating Conditions: Temperature 10–40°C; humidity 25–95% (no condensation)
• Storage Conditions: Temperature -10–50°C

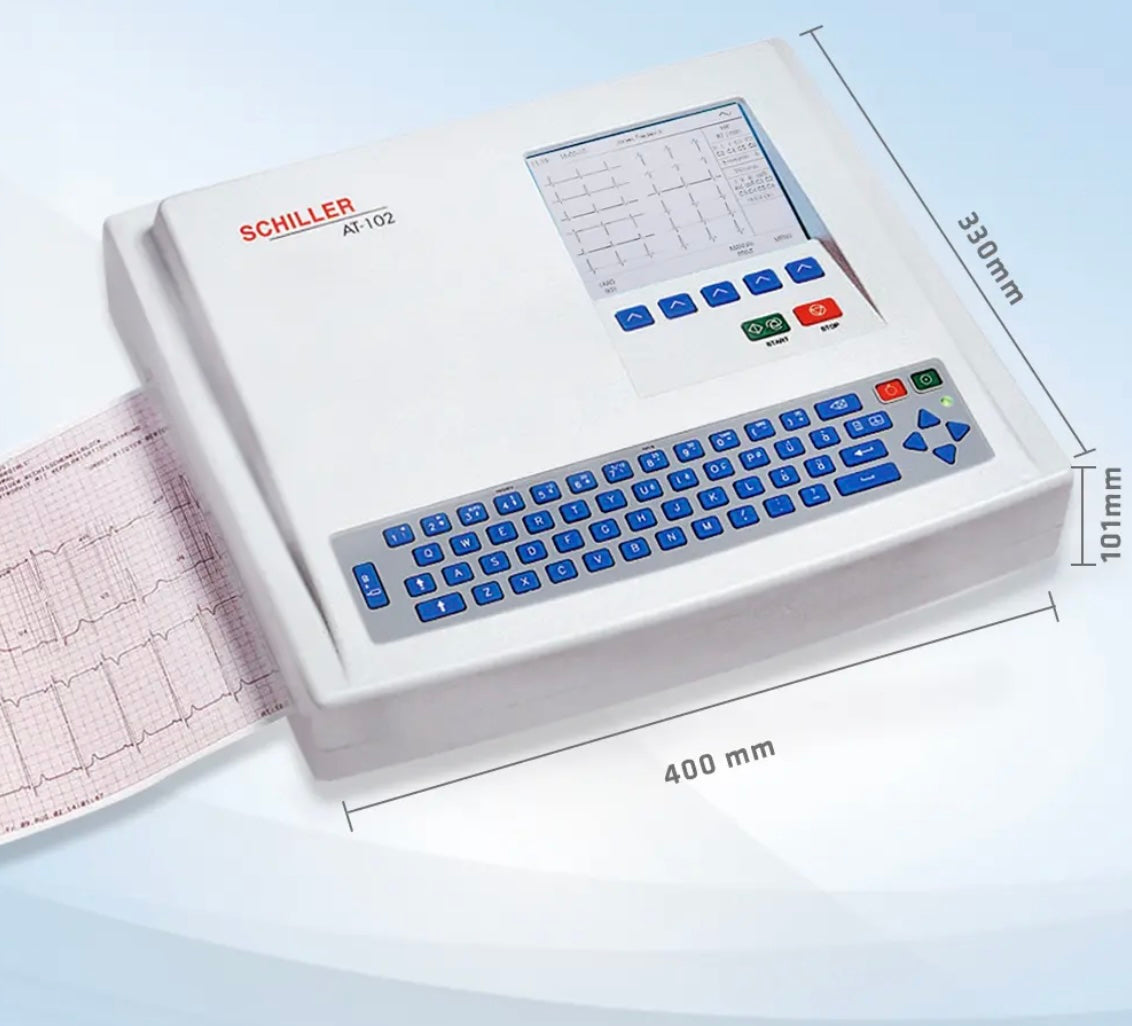

• Dimensions: 40 × 33 × 10.1 cm
• Weight: 5 kg
• Connectivity: Ethernet wired LAN; EMR compatible; built-in thermal printer
• Print Speeds: 5, 10, 25, or 50 mm/s (manual print)
• Certifications: IEC/EN 60601-1, UL 60601-1, IEC/EN 60601-2-25, IEC/EN 60601-1-2 (EMC); Class I applied part CF; CE/IIa per Directive 93/42/EEC (Medical Devices)
