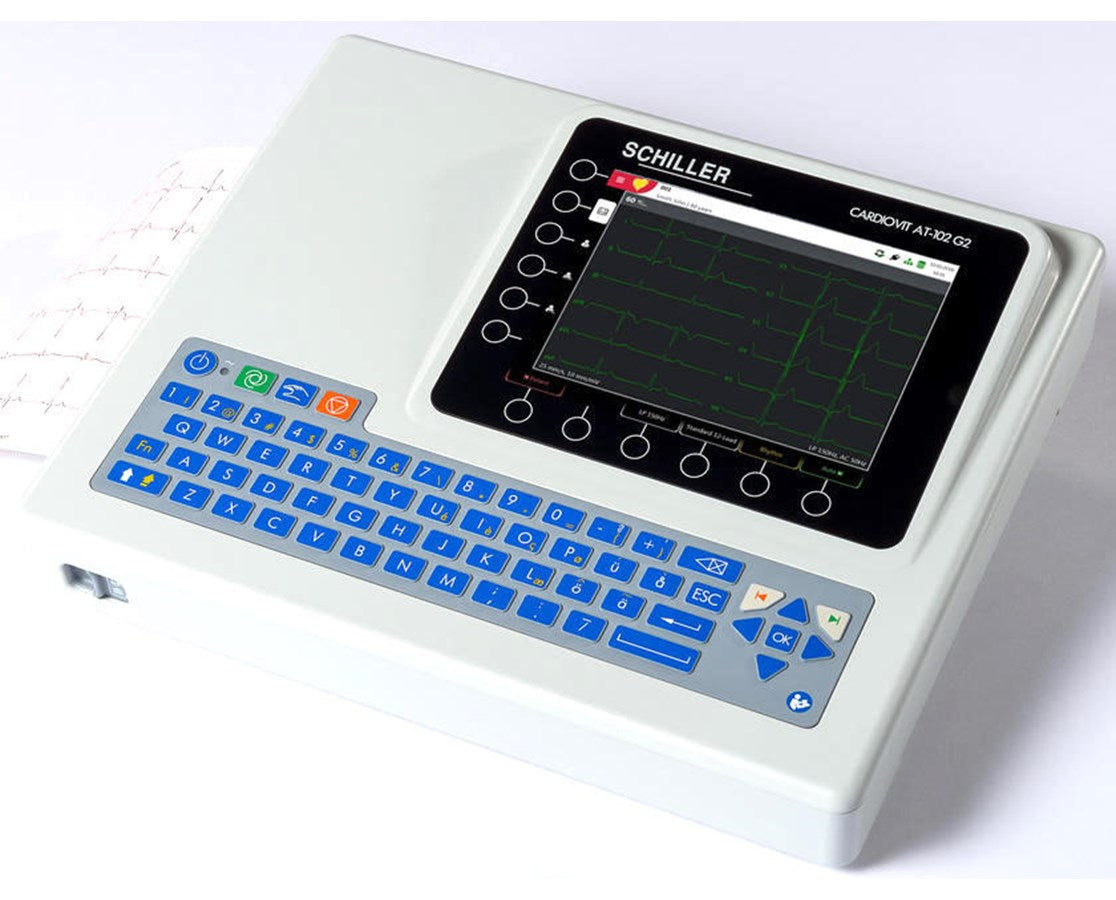

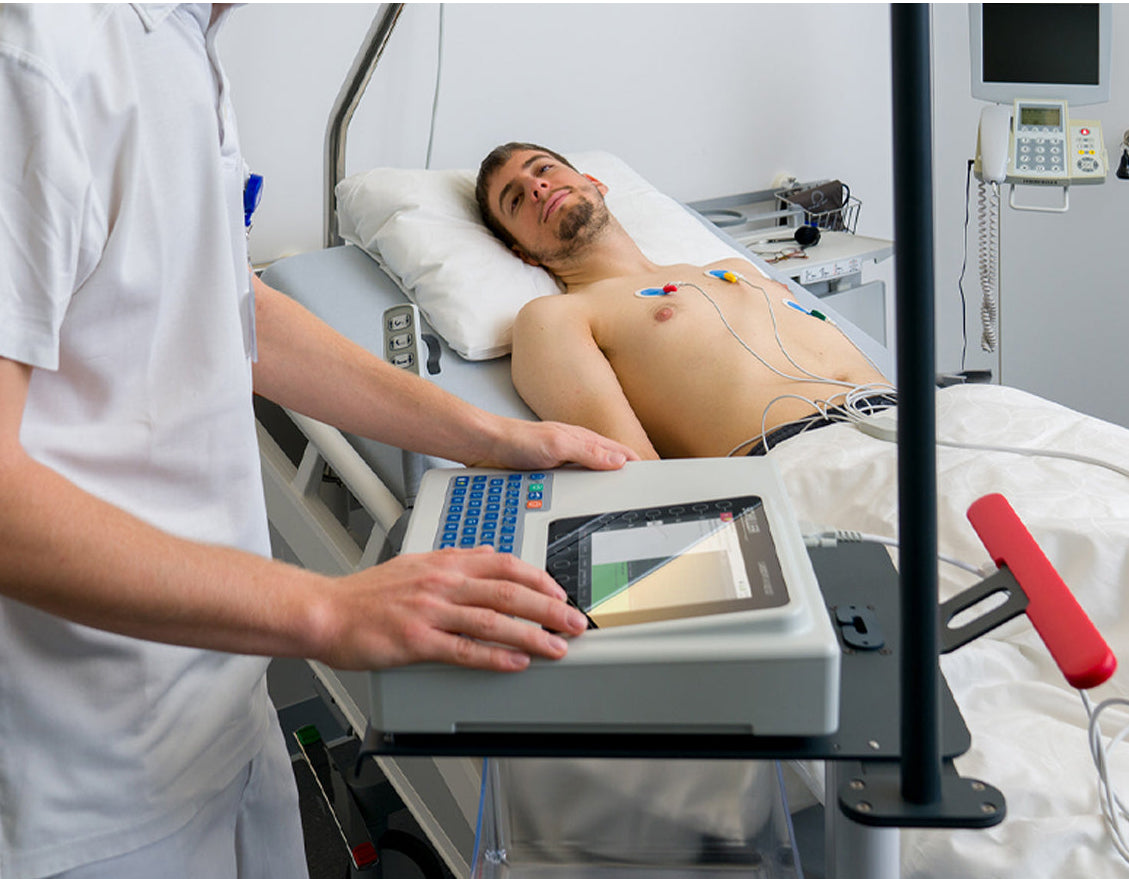

The Schiller Cardiovit AT-102 G2 EKG System is a next-generation electrocardiograph built for busy hospital and clinic environments. Combining advanced diagnostic algorithms with fast wireless connectivity, it simplifies EKG acquisition, improves workflow, and delivers superior signal quality for adult and pediatric patients alike.

✔ Touchscreen Navigation | ✔ Pediatric-Ready Precision | ✔ WiFi + LAN Connectivity

ADVANCED DESIGN & USER EXPERIENCE

INTUITIVE 8" TOUCH DISPLAY: Bright, high-resolution screen with touch function keys and sealed alphanumeric keyboard for easy navigation and cleaning.

SMART BATTERY PERFORMANCE: Provides over 8 hours of continuous EKG recording and up to 10 minutes of resting rhythm capture.

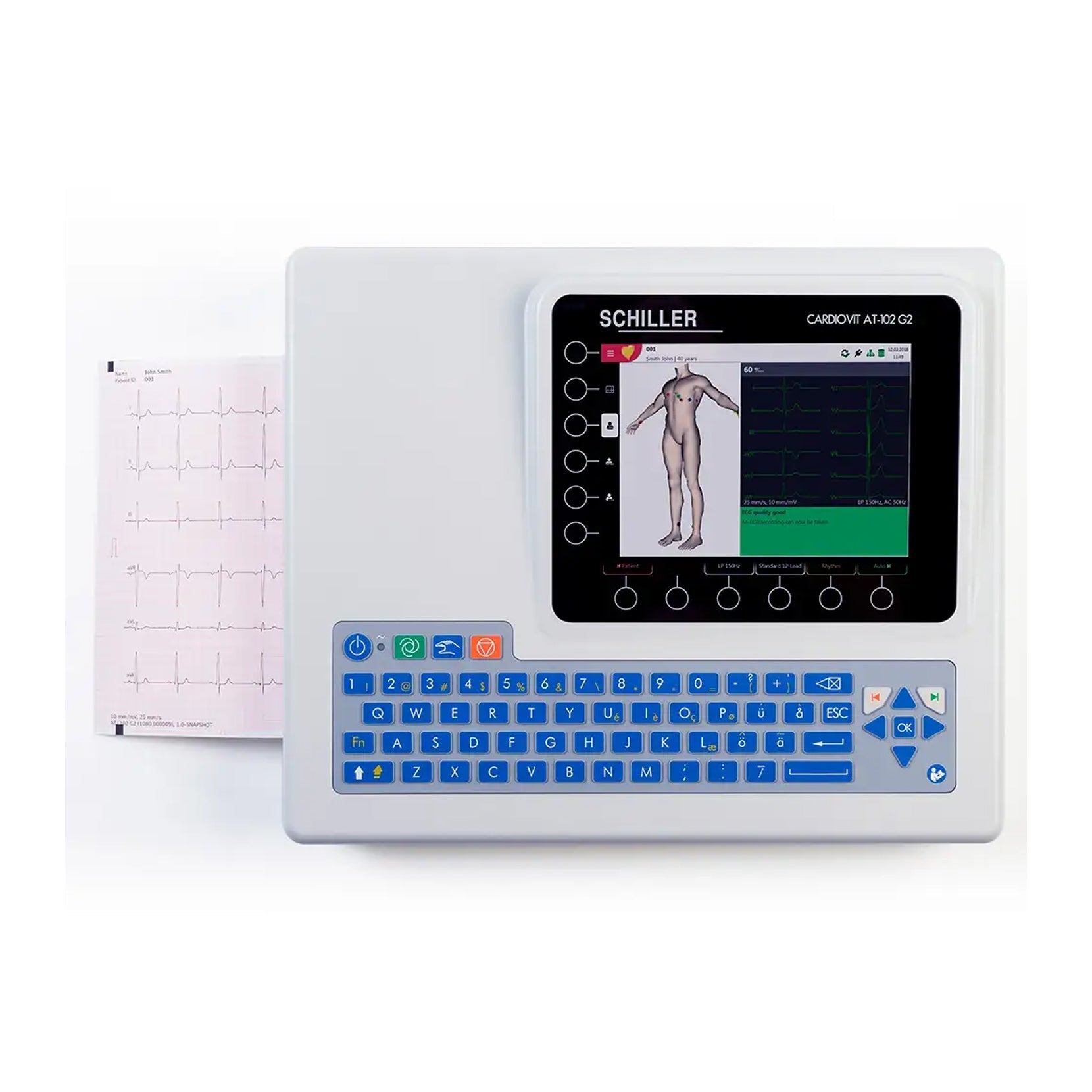

HOOK-UP ADVISER & LEAD REVERSAL DETECTION: Color-coded waveforms and anatomical model guide users for optimal lead placement and signal quality.

1-2-3 EKG ACQUISITION WORKFLOW: Quickly enter patient data, check lead signals, and transmit or print the EKG in just 20 seconds using one navigation key.

CLINICAL ACCURACY & DIAGNOSTIC POWER

PEDIATRIC-READY SIGNAL QUALITY: High sampling frequency and 250 Hz bandwidth ensure accurate results, even in neonates and pediatric cases.

SIMULTANEOUS 12-LEAD ANALYSIS: Integrated ETM and ETM Sport algorithms provide trusted EKG interpretation for both general and athletic populations.

ADVANCED DIAGNOSTIC TOOLS: Features SCHILLER's CCAA (Culprit Coronary Artery Algorithm) to identify the obstruction site and cardiac risk area in chest pain cases.

RESTING RHYTHM & EXERCISE EKG OPTIONS: Capture up to 10-minute rhythm recordings or conduct stress EKG with complete trend reports and interpretation templates.

EFFORTLESS CONNECTIVITY & DATA MANAGEMENT

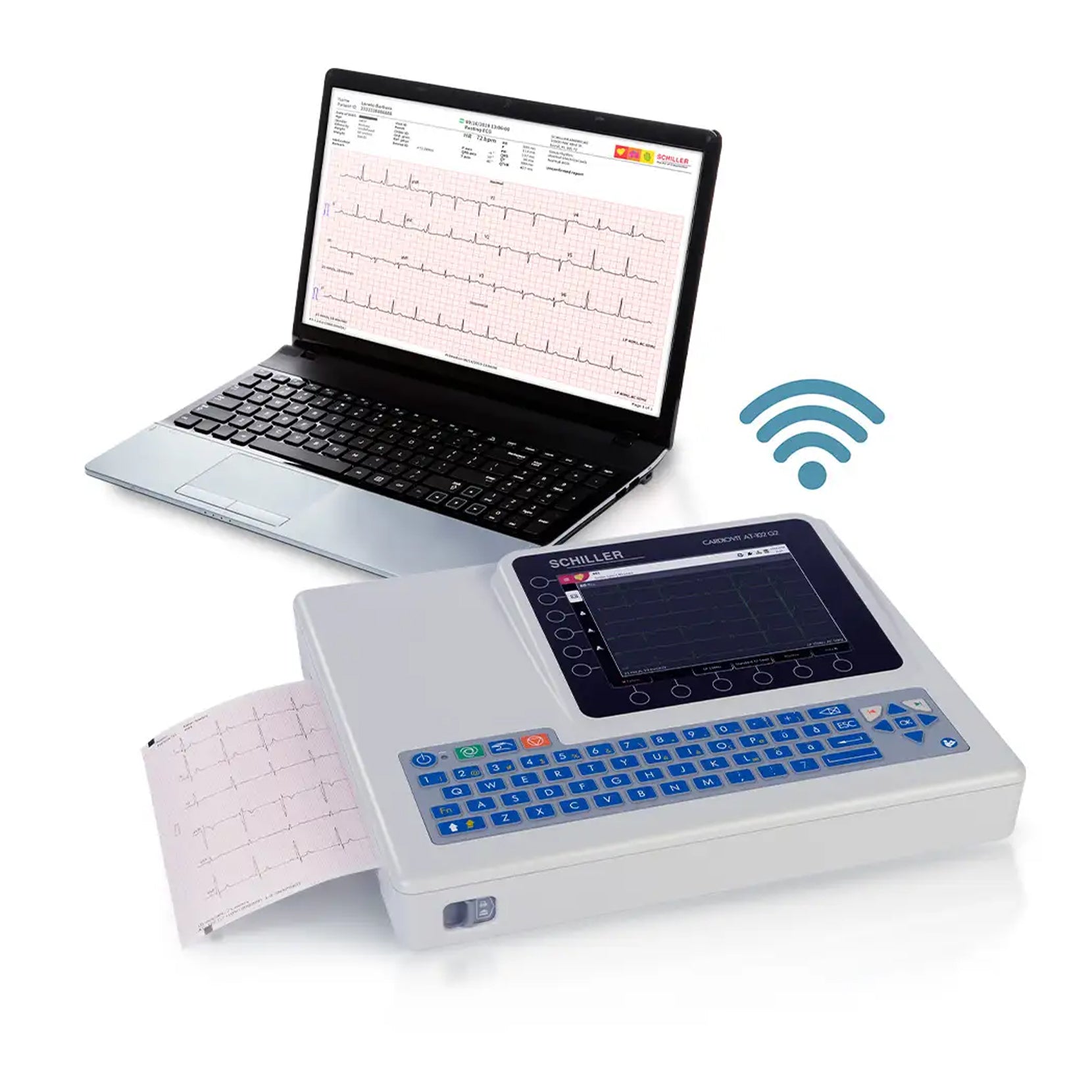

WIRED & WIRELESS CONNECTION: Effectively transmit EKGs directly to HIS/EMR systems via standard bidirectional Wi-Fi and LAN (ethernet), with support for PDF, HL7, and DICOM formats..

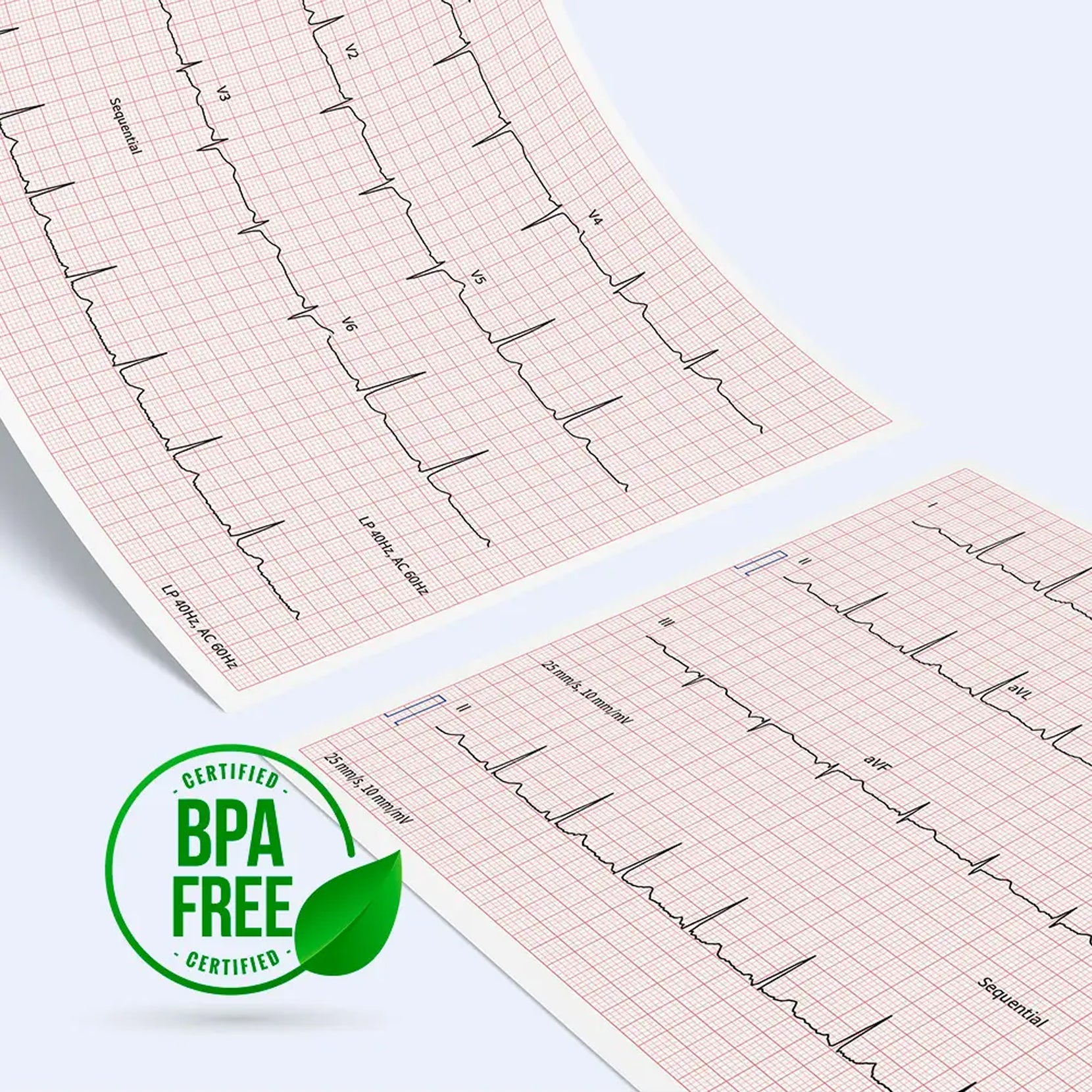

INTEGRATED A4 PRINTER: Internal high-resolution thermal printer offers customizable printouts when needed.

SEMA COMPATIBILITY: Seamlessly integrates with the Schiller Information System for centralized data management.

OPTIONAL PC WORKSTATIONS: Add CardioSoft client software to PCs for remote access, editing, and printing of EKG data.

OPTIONAL CONNECTIVITY KITS: Add software and licenses for broader connectivity capabilities: Basic (through DICOM/HL7/PDQ protocols) and Advanced ( through a wider range of protocols, including DICOM/HL7/PDQ/XML/Worklist/Orders).

The Schiller Cardiovit AT-102 G2 delivers reliable performance, superior signal quality, and fast EKG acquisition, making it the perfect fit for modern clinical settings focused on speed, accuracy, and patient care.

WARNING: This product can expose you to chemicals known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.

• PARAMETERS: EKG (12-Lead), Heart Rate
• Next-Gen Touchscreen EKG System for Hospitals & Clinics
• Trusted 12-Lead Analysis with Pediatric & Athletic Algorithms
• Fast 1-2-3 EKG Workflow with Hook-Up Adviser
• 8" Color Touchscreen with Alphanumeric Keyboard
• 8+ Hours Battery Life
• Built-In WiFi, LAN & A4 Printer for Seamless Workflow

• One (1) Schiller Cardiovit AT-102 G2 EKG

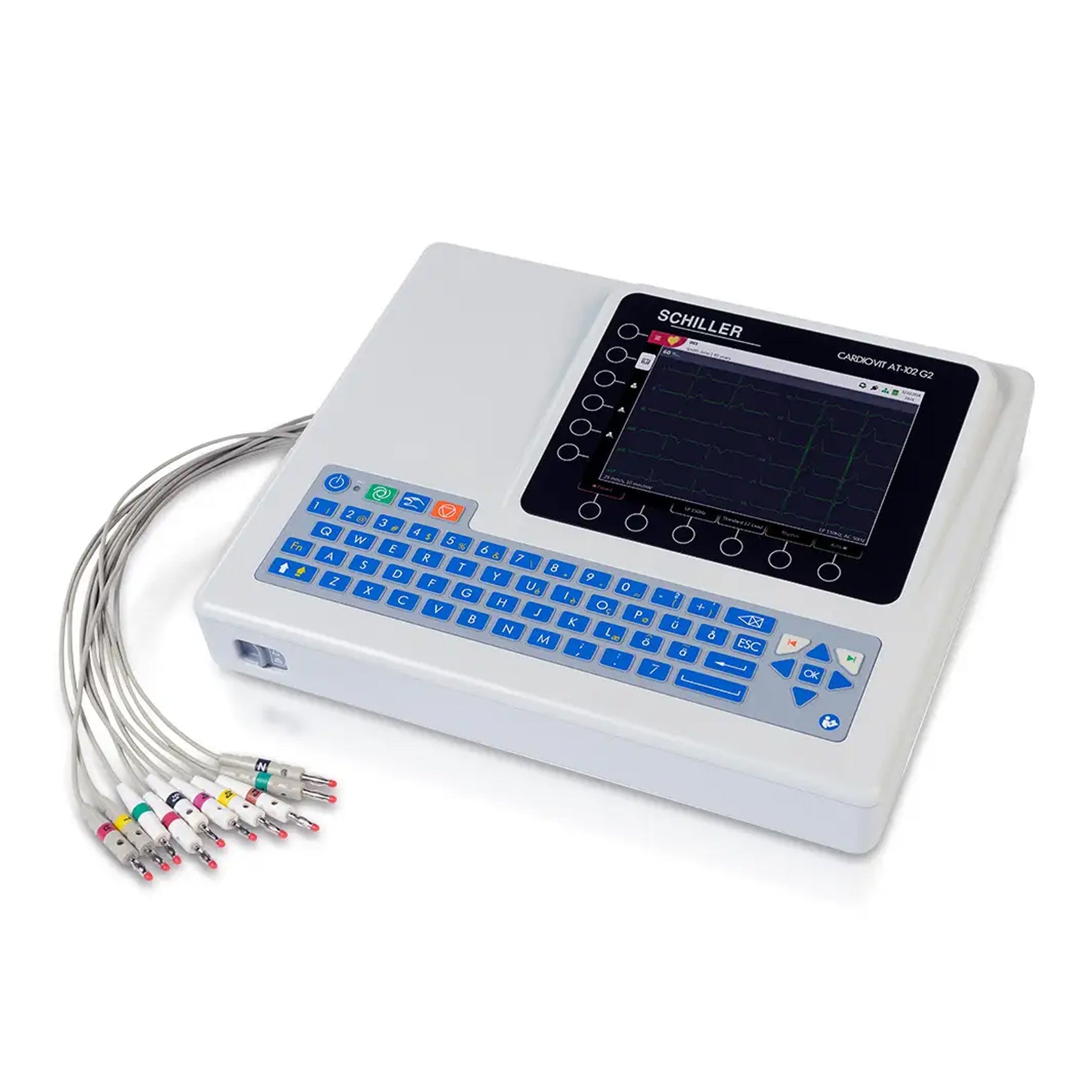

• 10 Lead Patient Cable
• 10 Snap Clip Electrode Adapters
• 100 Disposable Electrodes
• 1 Pack of Paper
• Power Cable
• Operating Manual
