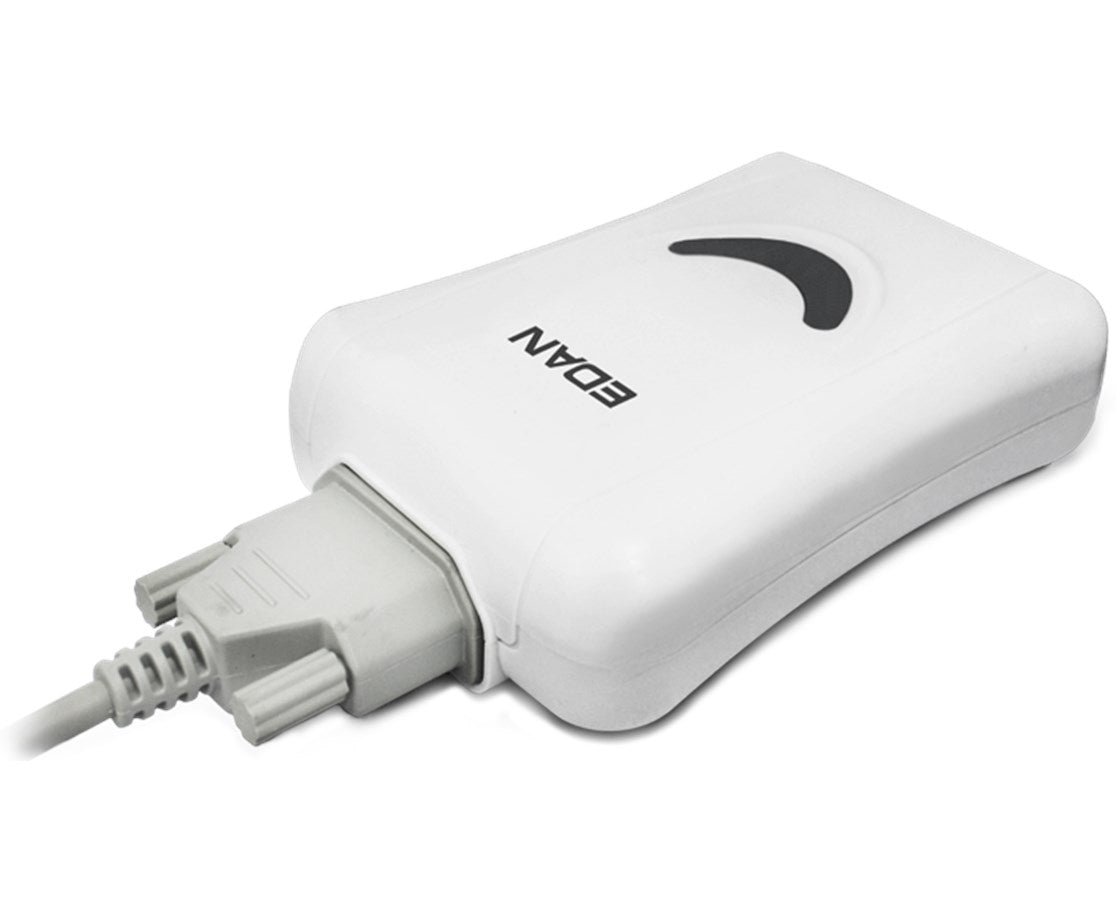

The Edan PC-Based Wired EKG Sampling Box is a compact 12-channel EKG solution that transforms any PC into a fully functional cardiac monitoring system. Designed for both resting and stress testing in adult and pediatric patients, this device delivers clinical-grade performance with real-time interpretation and seamless EMR integration.

• Simultaneous 12-lead EKG acquisition with up to 30 minutes of continuous recording and live monitoring.

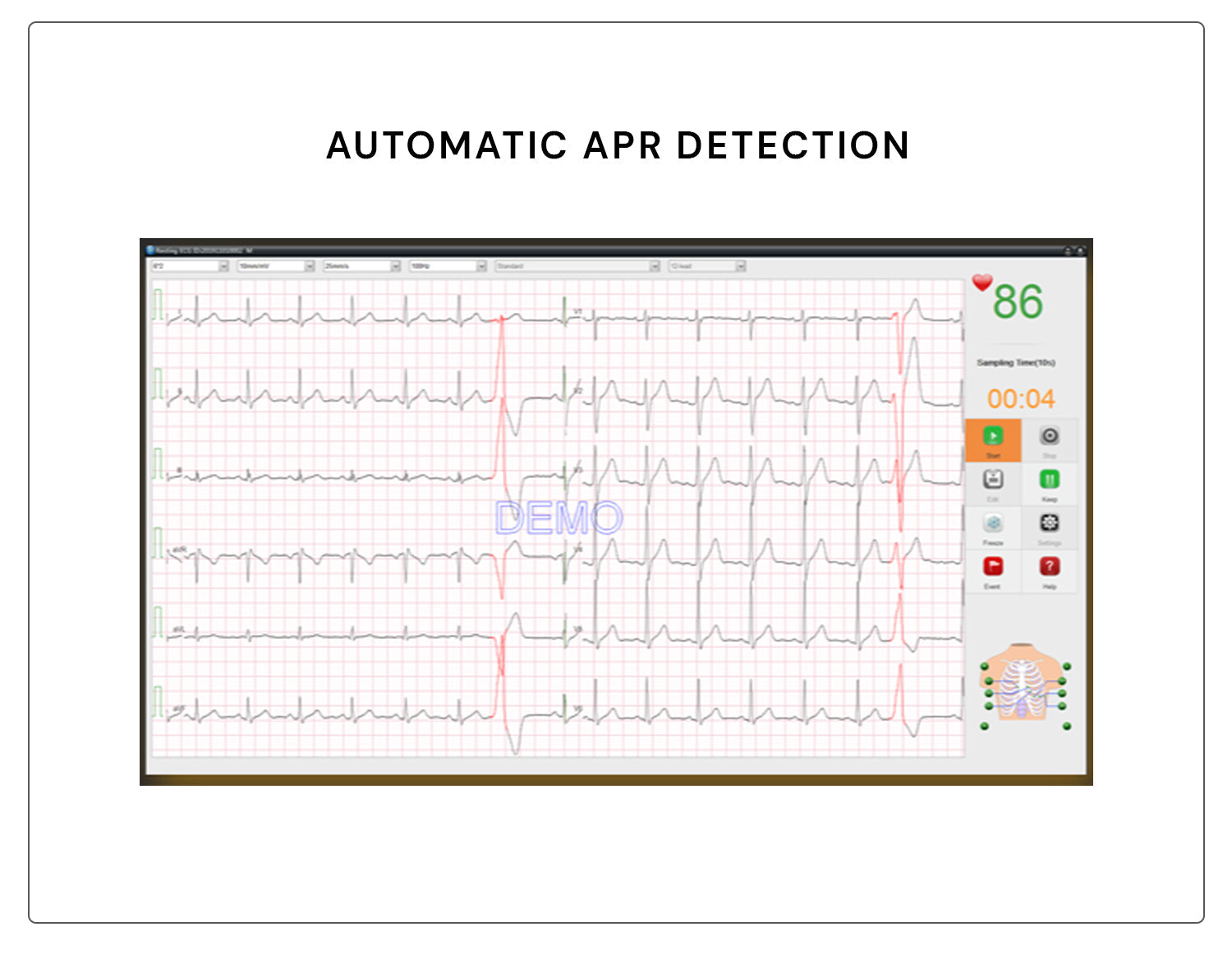

• Automatic arrhythmia detection and marking for immediate clinical awareness.
• Advanced analysis capabilities including Normal EKG, Frequency EKG, QT Dispersion, Vector EKG, HRT, HRV, and Signal-Averaged EKG.
• Precision SEMIP algorithm ensures reliable diagnostic accuracy.

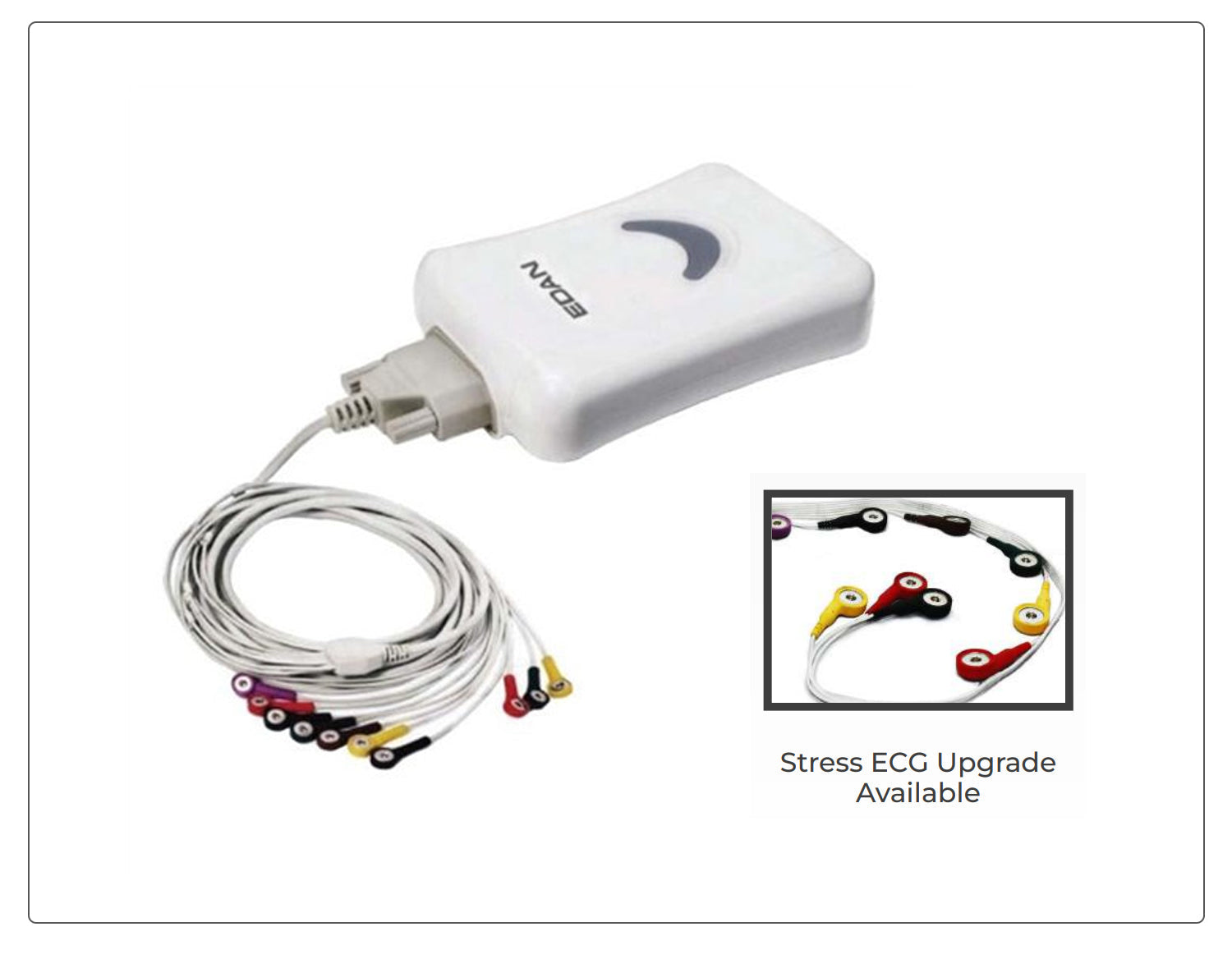

• Optional stress testing module supports automated treadmill and ergometer control with ST analysis, METs calculation, and Duke Score evaluation.
• Bi-directional data transfer and multi-format export (PDF, DOC, XML, SCP, DICOM, JPG). Full HL7 and DICOM compatibility for seamless EMR, HIS, and PACS integration.

• PC-Based Wired EKG Sampling Box
• EKG Data Acquisition Box
• EKG Cable (4mm banana connector, AHA standard)
• Bio ProTech Resting Tab Electrodes (100 per box)
• Unomedical 10-Lead Universal Clips (10 per box)
• USB Cable (9.5 ft)
• SE-1515 EKG Software CD
• USB Sentinel Key
• Carry Case
• PC EKG User Manual
• Quick Reference Guide
• Interpretation User Guide
•  Software Installation Guide

What if it breaks?

Manufacturer Warranty: 5-Year Warranty.

Morningside Medical Equipment General Refund Policy: There is a 30-day Return Policy (from the date of delivery) for all supplies and products purchased through our online store. These items must be unopened, unused, and in the original manufacturer packaging. Unfortunately, no returns will be accepted if used or damaged, or after the 30-day period. Customers are responsible for all shipping charges associated with the return. Initial shipping charges will not be refunded, and a 15%-20% restocking fee could be applied depending on the product.

See our terms and conditions for more information: www.morningsidemedicalequipment.com/terms-and-conditions

Dimensions: 5.8"L × 3.9"W × 1.6"H

Weight: 0.63 lbs | Made in USA.

Operating Temperature: +5°C to +40°C

Storage Temperature: -40°C to +55°C

Operating Humidity: 25–80% non-condensing.

Sampling Rate: 10,000/sec/channel

Frequency Range: 0.05–150 Hz (-3 dB).

Display: PC-based.

Power Supply: 1 VA (max), 0.5 VA (min).

Filters: LOWPASS (25/35/45/75/100/150 Hz), DFT (weak/strong).

Print Formats: A4 or Letter at 5–50 mm/s.

Certifications: IEC/EN 60601-1+A1+A2, IEC/EN 60601-1-2+A1, IEC/EN 60601-2-25, ANSI/AAMI EC11, IEC/EN 60601-2-51.
