Newman Medical simpleABI Automated Cuff-Link System

The simpleABI Automated Cuff-Link System is a PC-based vascular testing workstation for diagnosing peripheral artery disease.

It uses continuous-wave Doppler ultrasound — the AHA/ACC gold standard for PAD diagnosis — together with pulse volume recording waveforms, and automates cuff selection, inflation and deflation so results stay consistent from one operator to the next.

The system runs multiple exam types on one workstation, from ABI-Q PVR screening through multi level Doppler ABI to exercise and treadmill stress testing. Choose the configuration that matches your practice.

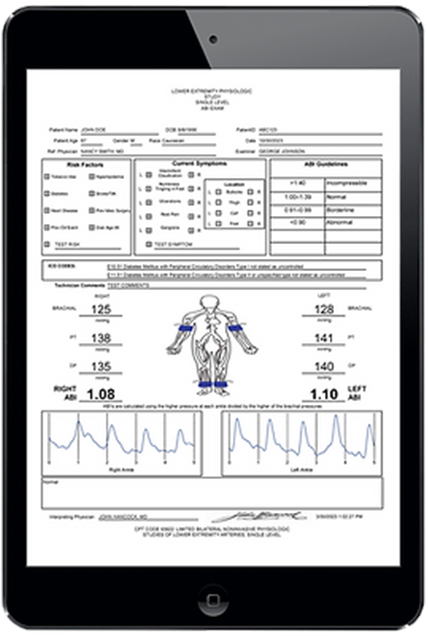

With the simpleABI Automated Cuff-Link System, accurate full-page reports are quickly produced with the necessary documentation for reimbursement. The exam is made easy by following the report being generated on the computer screen, eliminating the need for memorizing complex menus or protocols. Since the system automatically generates the report, there is no need for secondary downloading steps to store, print or share the results.

Choose your configuration

Two choices build your system: study level and exercise protocol.

Study level

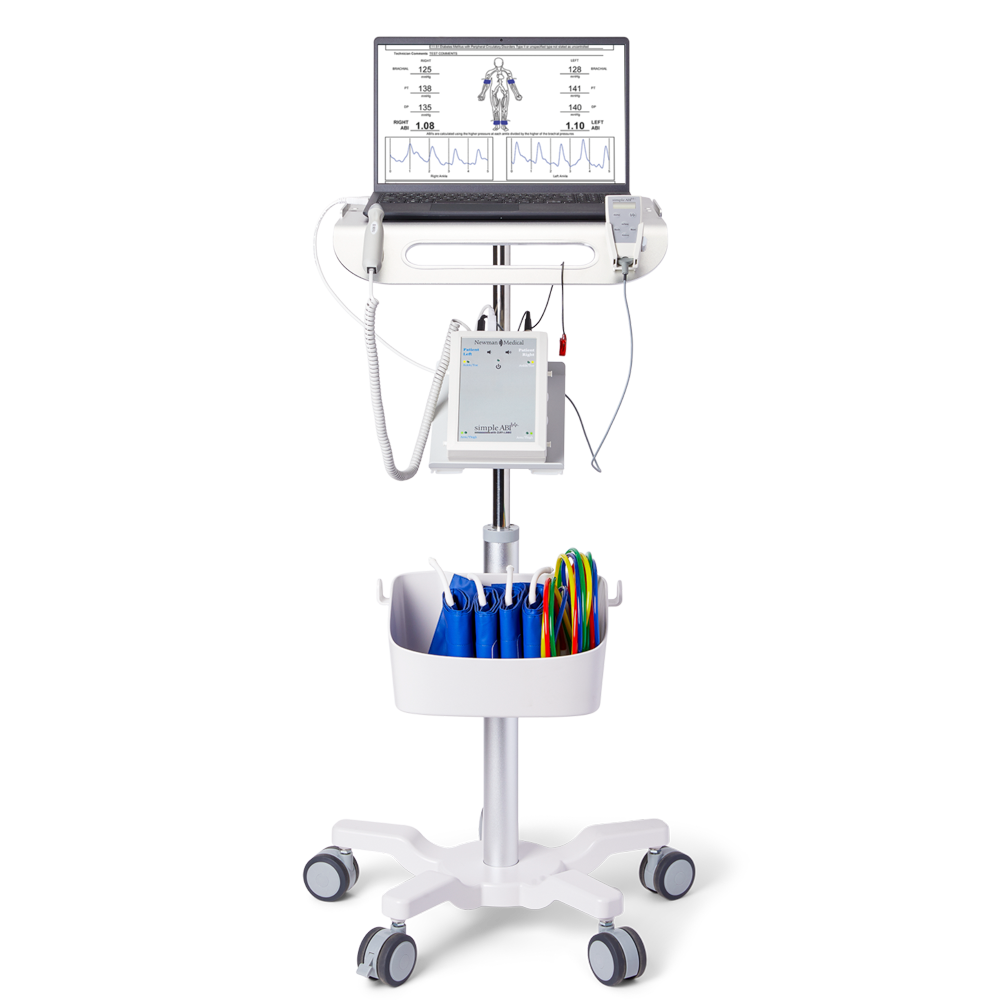

Single level studies — for diagnosing the presence of obstruction and confirming a diagnosis of PAD. Runs on a four-port cuff selector.

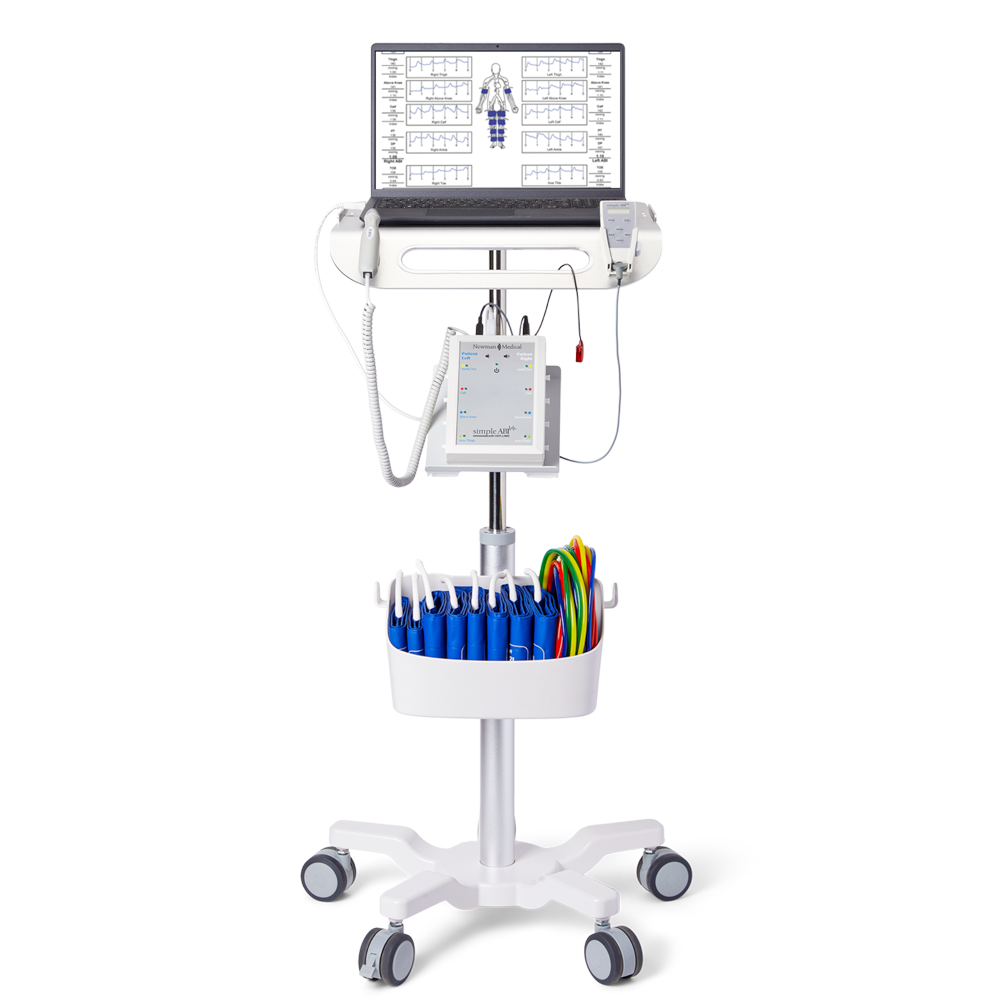

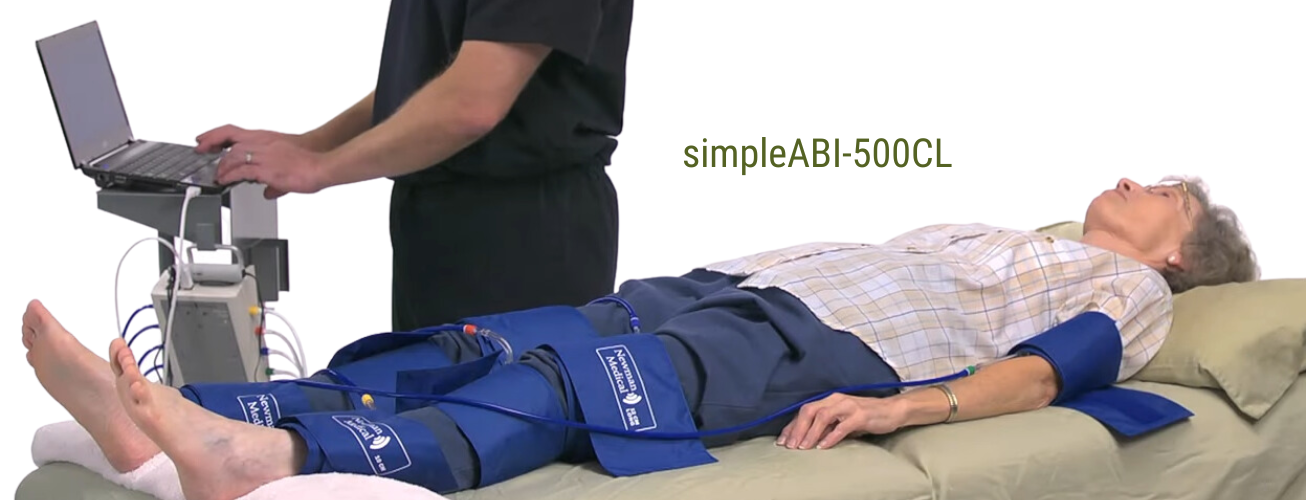

Single and multi level studies — adds segmental studies for determining where the obstruction sits (aortoiliac, femoral, popliteal, tibial), which guides treatment planning, interventional decisions and follow-up after revascularization. It is fully aligned with AHA/ACC guidelines. Runs on an eight port cuff selector, so several cuffs stay connected at once and nobody has to swap lines mid-exam.

Exercise exams

Around 30 percent of patients with symptoms of PAD test normal at rest but abnormal after exercise, so an exercise study catches disease a resting study misses.

Functional Maneuvers — a post-exercise ABI performed table-side, with no gym or exercise equipment needed.

Functional Maneuvers and Stress Testing (treadmill not included) — while resting and post-exercise ABI confirm the presence of PAD, the added stress test exam quantifies how much the disease is limiting the patient. Maximum walking time, the point at which claudication begins, and the time required for pressure to recover after stopping all provide objective functional data that resting exams cannot.

Clinical applications

• PAD diagnosis and confirmation, and baseline vascular assessment in at-risk patients
• Diabetic patient vascular evaluation, including calcified and incompressible arteries
• Wound care and limb preservation programs
• Primary care and podiatry screening, with rapid screening and Doppler confirmation on one device
• Symptomatic patients and claudication evaluation — on stress testing configurations
• Pre-interventional planning and post-procedural follow-up — on multi level configurations, where localizing the affected segment is what guides the decision

Doppler and probes — the Doppler is built into the control unit and has the sensitivity and audio response to let you hear blood flow sounds quickly and clearly, through a high-fidelity speaker with a smooth, rich response across the whole range of Doppler sounds.

Automated Cuff-Link systems include an 8 MHz probe and an SPPG probe. All probes are interchangeable and work on every Cuff-Link system, with a smooth contour that is comfortable to hold, comfortable for the patient and easy to clean.

Additional probes available:

• 5 MHz probe — deep penetration for the femoral, popliteal and brachial arteries and for deep veins. Available separately.
• SteadyDop probes — wide-angle versions of the 5 MHz and 8 MHz probes, which makes vessels easier to locate. Available separately.

Seamless EMR integration — reports can be printed on any standard printer or saved as PDF/TIFF files for easy attachment to EMR patient records.

Interested in DICOM connectivity? Call us at 800-675-1202 or email info@morningsidemedical.com for more information.

Accessories and supplies

Replacement cuffs, Cuff-Link tubing, ultrasound gel, carry bags and additional probes are listed in our ABI supplies collection.

Available exams by study level configuration

✓ available · — not available on that configuration.

Available exams by exercise configuration

✓ available · — not available on that configuration.

• Continuous-wave Doppler ankle brachial index with toe brachial index
• Automated cuff selection, inflation and deflation through Cuff-Link technology
• Integrated rapid PVR screening exam for Doppler-free assessment of calcified or incompressible arteries
• Consistent, repeatable results across different operators
• Report builds on screen during the exam — no strip-chart paper, no secondary data transfer
• Short staff training and re-training time — no menus or protocols to memorize
• Drop-down ICD-10 codes and interpretation of results on every report
• Segmental configurations localize disease to a limb segment rather than only detecting it
• Seated ABI protocol on every configuration for patients who cannot lie flat
• Compact workstation footprint designed for in-room use
• Designed and manufactured in the United States, near Denver, Colorado

• The Cuff-Link main control — an integrated speed machine. One box holds the cuff selector, interchangeable Doppler probes, pressure sensors, the pump and the control software. That integration is what makes the exam faster and easier to perform, and what takes the costly errors out of it.
  • Single level studies: four port cuff selector
  • Single and multi level studies: eight port cuff selector
• The Cuff-Link remote — steps the operator through the exam with push-button simplicity.
  • Move easily from one measurement site to the next
  • Large, easy to read display of the current cuff pressure
  • Push-button inflation
  • Automated cuff deflation, which is what keeps pressures accurate
  • One-button waveform creation
• Doppler and probes — the Doppler is built into the control unit, and all probes are interchangeable and work on every Cuff-Link system, with a smooth contour that is comfortable to hold, comfortable for the patient and easy to clean.

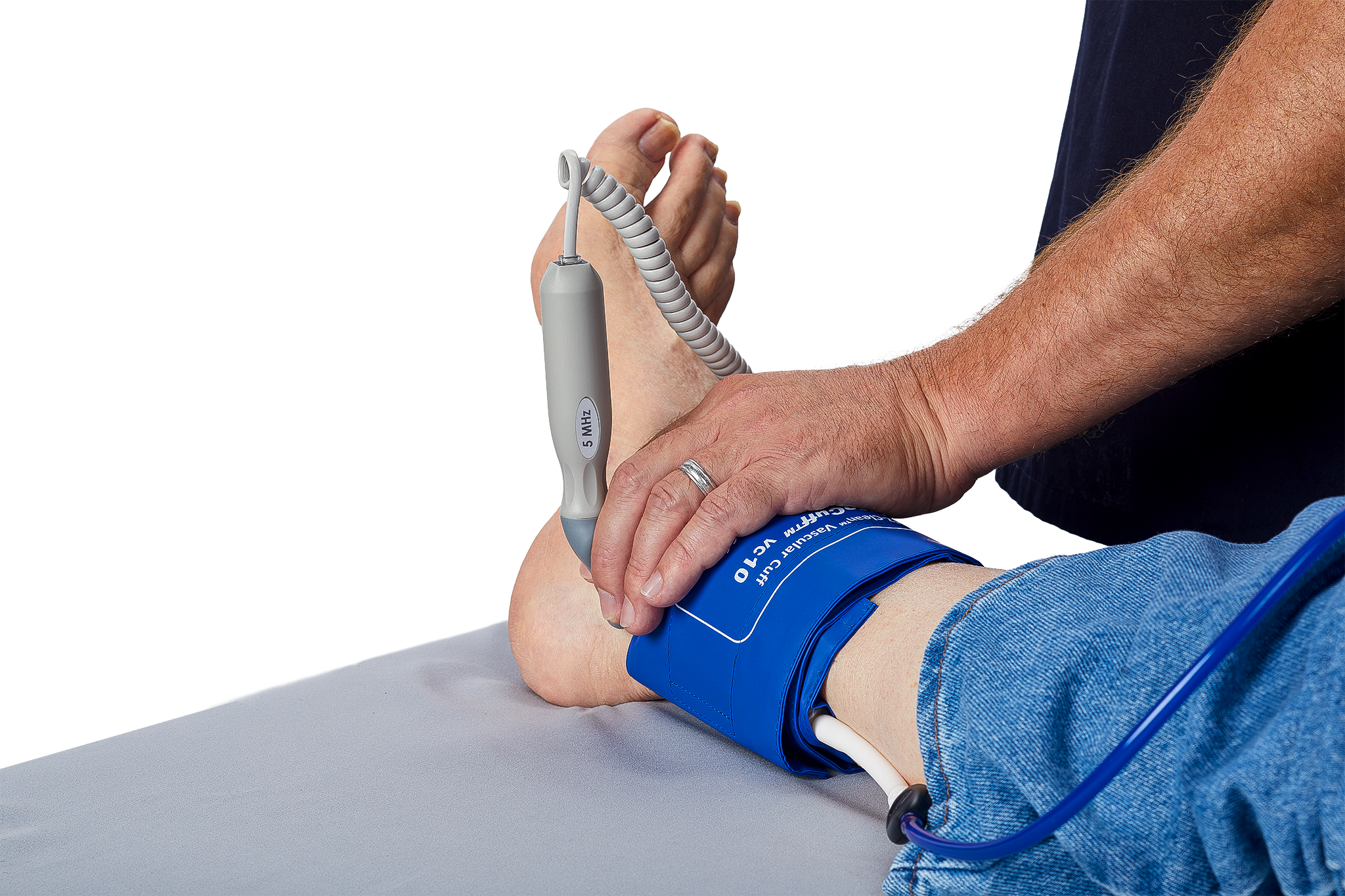

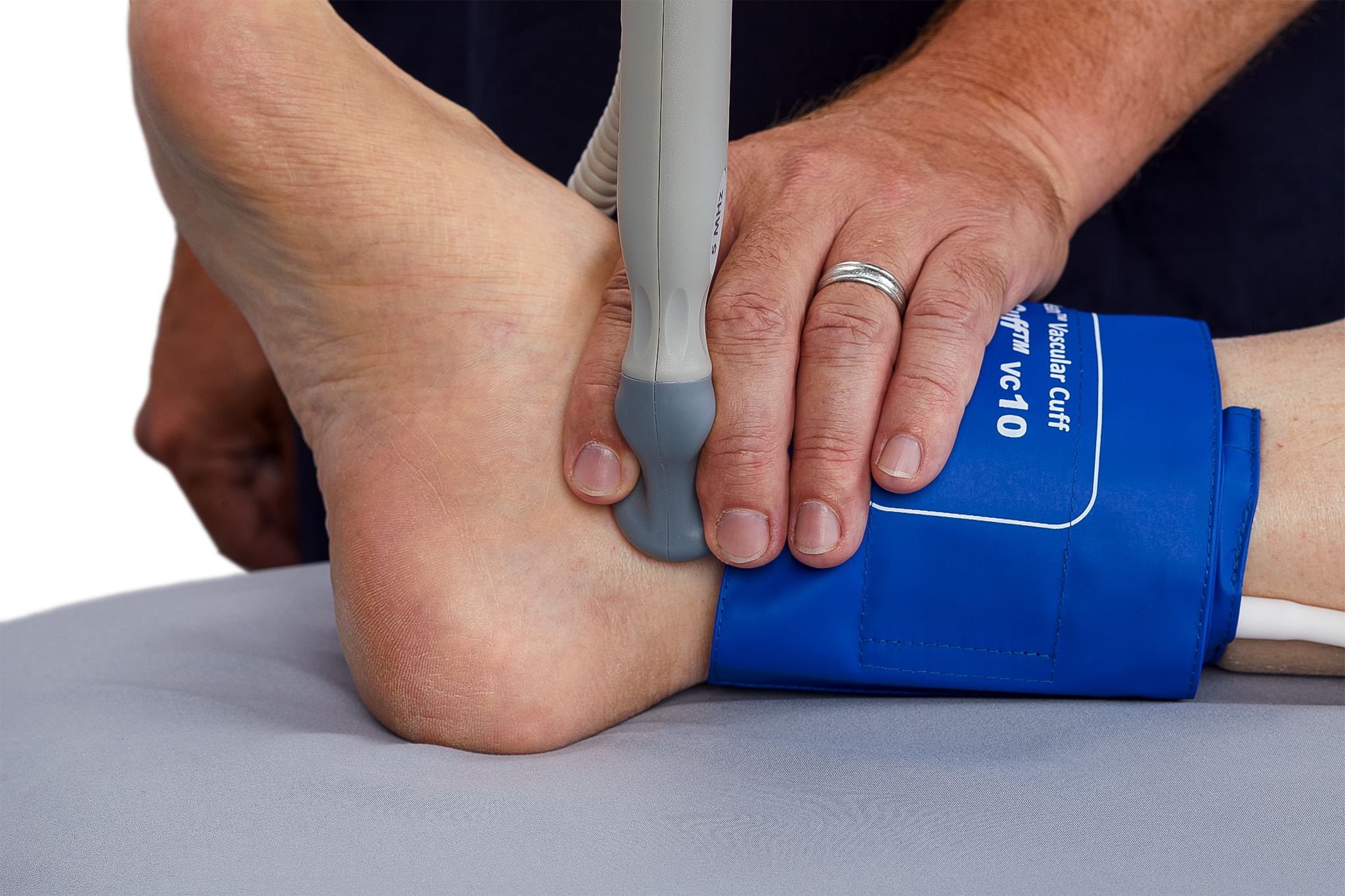

  • 8 MHz probe — especially sensitive to vessels near the surface: the radial, posterior tibial and dorsalis pedis arteries.
  • SPPG probe — produces photoplethysmography waveforms during toe brachial index studies, which is what you need when the ankle arteries are calcified or occluded.
• Magnetic probe holder — cradles the probe without cracking or breaking, with an open design that does not gather dirt, gel or germs
• EZ-Clean Vasocuffs — washable soft material over a non-latex bladder, long enough to completely encircle the limb.
  • Single level studies: six cuffs — two 10 cm, two 12 cm and two 1.9 cm disposable digit cuffs
  • Single and multi level studies: ten cuffs — two 10 cm, four 12 cm, two 12 cm long and two 1.9 cm disposable digit cuffs
• Height-adjustable roll stand — wide five-legged anti-tip base, mounting plate for the computer and control unit, hooks for the hoses and a basket for cuffs and gel
• Laptop with simpleABI software — no separate step to download the data.
  • Indices are calculated automatically, which takes a whole class of error out of the exam
  • Every exam is stored automatically with a timestamp
  • Your practice logo and contact information print on the report
  • Your physicians, operators and interpreters sit on editable drop-down menus
  • Drop-down ICD-10 codes
  • Interpretation of results is shown on the report
  • Reports save in the format you need: PDF, TIFF, CSV, BMP or JPG
• User manual and training

A treadmill is not included with any configuration.

What happens if it breaks?

Manufacturer’s warranty: Every simpleABI system carries a comprehensive 2-year warranty covering all parts and labor, including the Cuff-Link control unit, probes and cords.

Newman Medical also extends a 60-day satisfaction guarantee.
